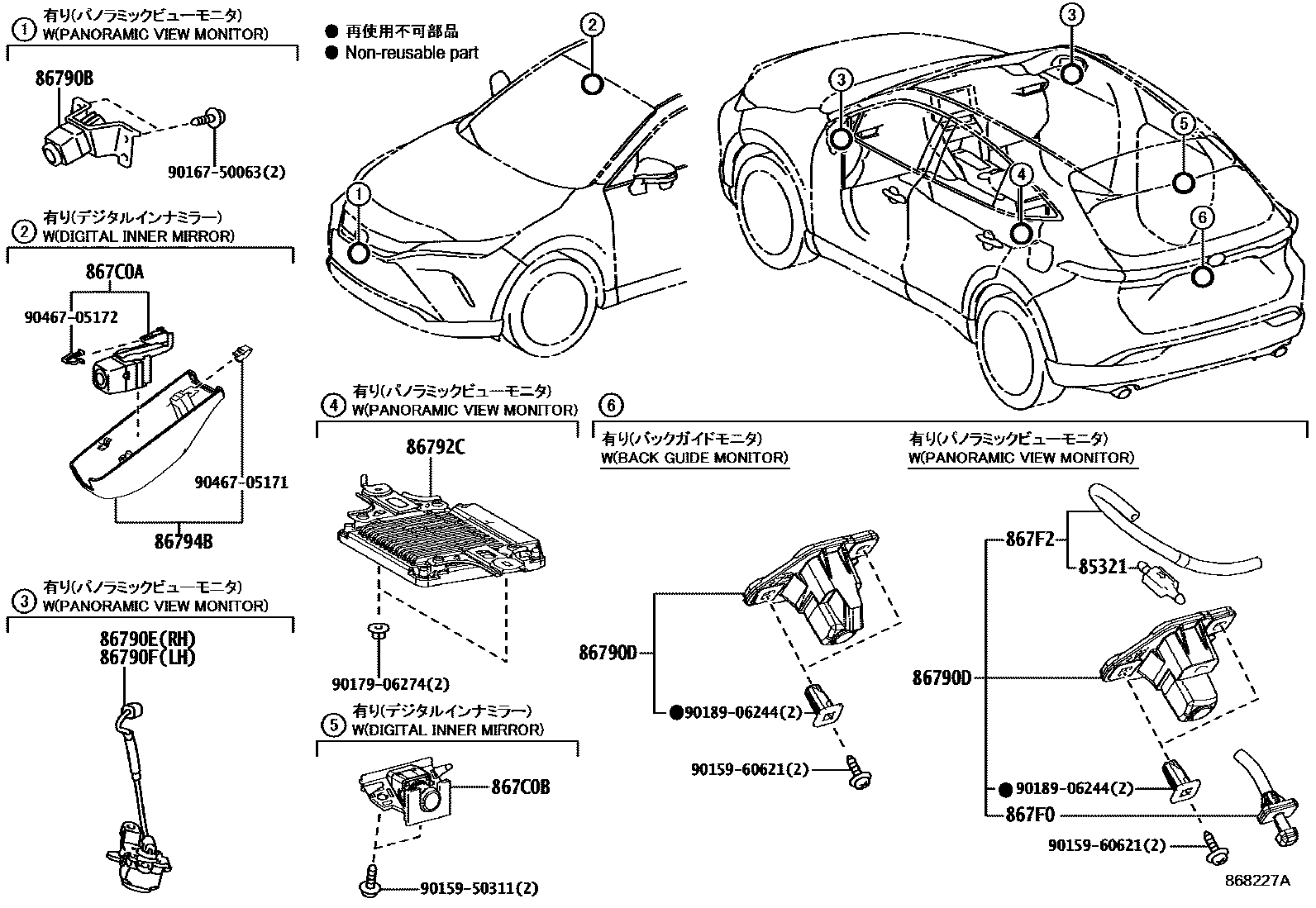

CAMERA & REAR MONITOR DISPLAY

85321VALVE, WASHER

main85321-26030iAXUH8#,MXUA8#..Z; AXUP85..Z202210

86790BCAMERA ASSY, TELEVISION, FR

main86790-48480iAXUP85..Z202210

main86790-48250iAXUH8#,MXUA8#..Z202006-202205

main86790-48251iAXUH8#,MXUA8#..Z202205-202210

main86790-48440iAXUH8#,MXUA8#..Z202210

86790DCAMERA ASSY, TELEVISION, RR

main86790-48430iAXUH8#,MXUA8#..Z; AXUP85..Z202210

main867B0-48130iAXUH8#,MXUA8#..S202112-202210

main867B0-48310iAXUP85..G;AXUH8#,MXUA8#202210-202309

main867B0-48311iMXUA80;AXUP85..G;AXUH8#,MXUA85..G,Z202310

main867B0-48140iAXUH8#,MXUA8#..Z202006-202210

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-48460iAXUH8#,MXUA8#..Z; AXUP85..Z202210

main86790-48160iAXUH8#,MXUA8#..Z202006-202210

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-48450iAXUH8#,MXUA8#..Z; AXUP85..Z202210

main86790-48150iAXUH8#,MXUA8#..Z202006-202210

86792CCOMPUTER, PARKING ASSIST

main86792-48A20iAXUH8#,MXUA8#..Z; AXUP85..Z202210

main86792-48600iAXUH8#,MXUA8#..Z202006-202205

main86792-48601iAXUH8#,MXUA8#..Z202205-202210

86794BCOVER, TELEVISION CAMERA

main86794-48030iAXUH8#,AXUP85,MXUA8#..G,Z; MXUA80..S202210

867C0ACAMERA ASSY, INNER MIRROR, FR

main867C0-48040iAXUH8#,AXUP85,MXUA8#..G,Z; MXUA80..S202210

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-48020iAXUH8#,AXUP85,MXUA8#..G,Z; MXUA80..S202210

867F0NOZZLE ASSY, CAMERA CLEANER

main867F0-48030iAXUH8#,MXUA8#..Z; AXUP85..Z202210

867F2HOSE, CAMERA CLEANER

main867F2-48020iAXUH8#,MXUA8#..Z; AXUP85..Z202210

9015950311

main90159-50311

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018906244

main90189-06244

9046705171

main90467-05171

9046705172

main90467-05172

18 parts on this diagram · 1 diagram in section
