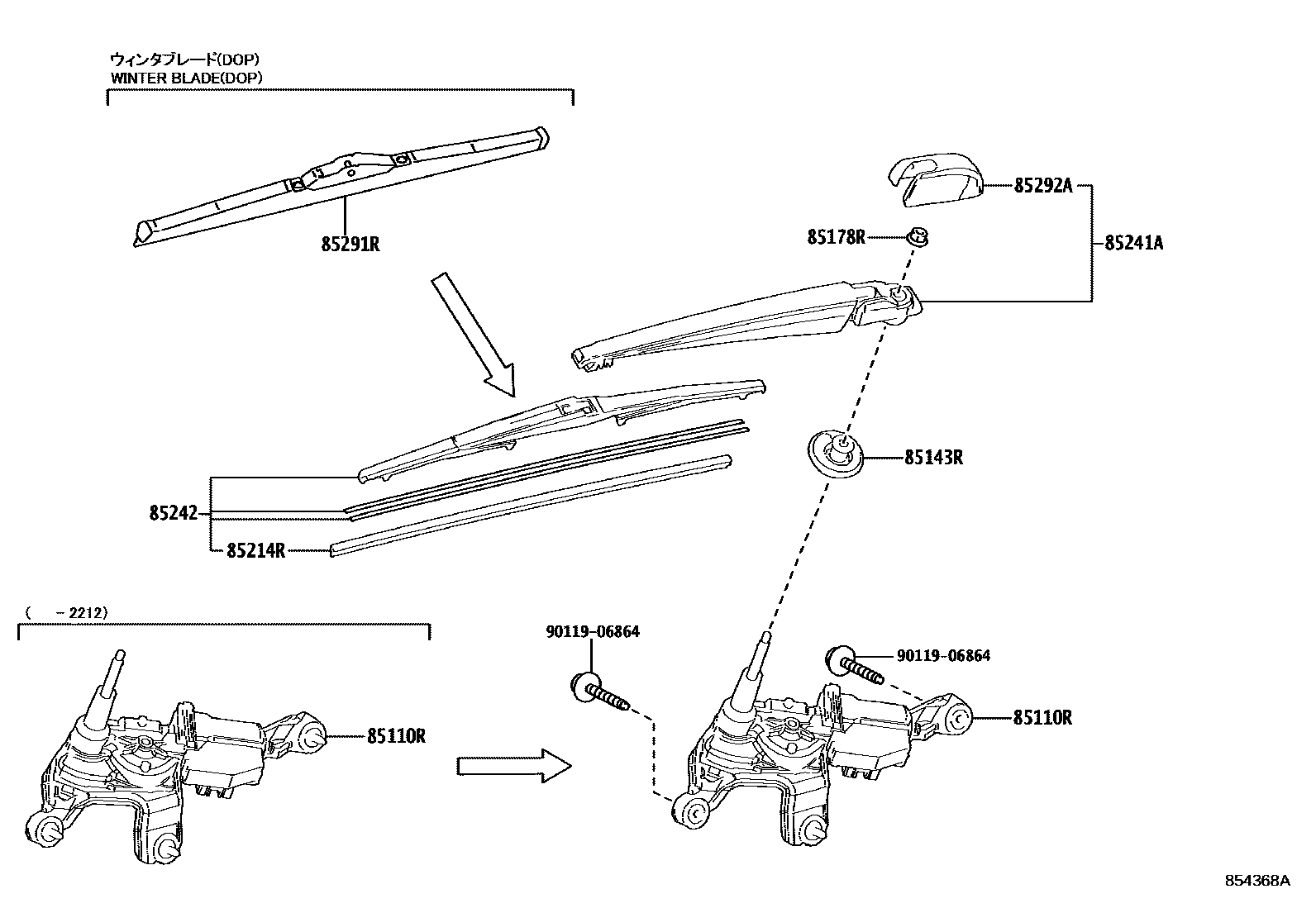

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-48100iAXUH8#,MXUA8#202006-202210

main85130-48101iAXUH8#,MXUA85..S202212-202309

85143RGROMMET, REAR WIPER MOTOR

main85143-42050iAXUH8#,MXUA8#202006-202210

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAXUH8#,MXUA8#202006-202210

85214RRUBBER, REAR WIPER

main85214-30280iAXUH8#,MXUA8#202006-202210

85241AARM, REAR WIPER

main85241-12150iAXUH8#,MXUA8#202006-202210

85242BLADE, RR WIPER

main85242-12130iAXUH8#,MXUA8#202006-202210

85291RBLADE,REAR WIPER, WINTER

main85291-53040iAXUH8#,MXUA8#202006-202210

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iAXUH8#,MXUA8#202006-202210

9011906864

main90119-06864

9 parts on this diagram · 1 diagram in section
