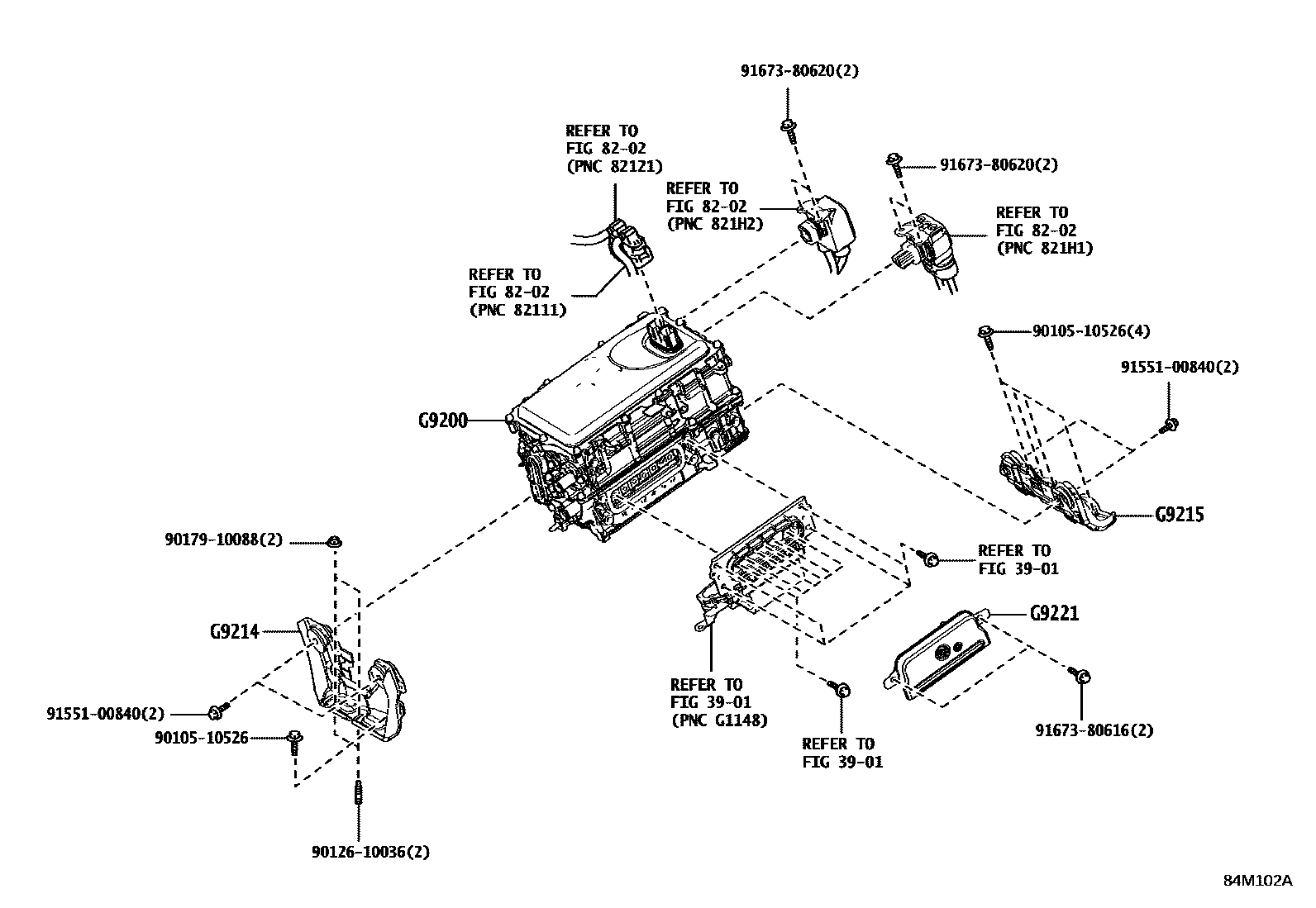

HEV INVERTER

0001 1 0002 1 0003 1 0004 1��������� 0005 1���������

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG92A042112iAXUP85202210-202306

mainG92A042113iAXUP85202307-202506

mainG92A048310iAXUH85202006-202107

mainG92A048311iAXUH85202108-202207

mainG92A048312iAXUH85..S202208-202309

mainG92A048340iAXUH80202006-202107

mainG92A048341iAXUH80202108-202207

mainG92A048342iAXUH80..G,Z202208-202309

G9214BRACKET, INVERTER, NO.1

mainG921433040iAXUH8#..G,Z202006-202309

mainG921442010iAXUP85202210

G9215BRACKET, INVERTER, NO.2

mainG921533040iAXUH80202006-202309

mainG921542010iAXUH85..G,Z202006-202309

mainG921542020iAXUP85202210

G9221COVER, INVERTER

mainG902247050iAXUH8#202006-202309

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

12 parts on this diagram · 5 diagrams in section
