AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-48E10iMXUA8#202006-202210

main89170-48E20iAXUH8#202006-202210

main89170-48E80iMXUA85..S202304-202309

main89170-48E90iAXUH8#..S202304-202309

main89170-48J50iMXUA8#202210-202304

main89170-48J60iAXUH8#,AXUP85202210-202304

89173ASENSOR, AIRBAG, FRONT RH

main89173-19515iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202304

main89173-59335iAXUH8#,MXUA8#202006-202210

89174ASENSOR, AIRBAG, FRONT LH

main89173-19515iAXUH8#,MXUA85..S202304-202309

main89173-59335iAXUH8#,MXUA8#202006-202210

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42020iAXUH8#,AXUP85,MXUA8#202210-202304

main89831-47050iAXUH8#,MXUA85..S202304-202309

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42020iAXUH8#,MXUA8#202006-202210

main89831-47050iAXUH8#,MXUA85..S202304-202309

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52010iAXUH8#,MXUA8#202006-202101

main8983A-52011iAXUH8#,MXUA8#202102-202210

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52010iAXUH8#,MXUA8#202006-202101

main8983A-52011iAXUH8#,MXUA8#202102-202210

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-52130iAXUH8#,MXUA8#202006-202210

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-52130iAXUH8#,MXUA8#202006-202210

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180600

main94151-80600

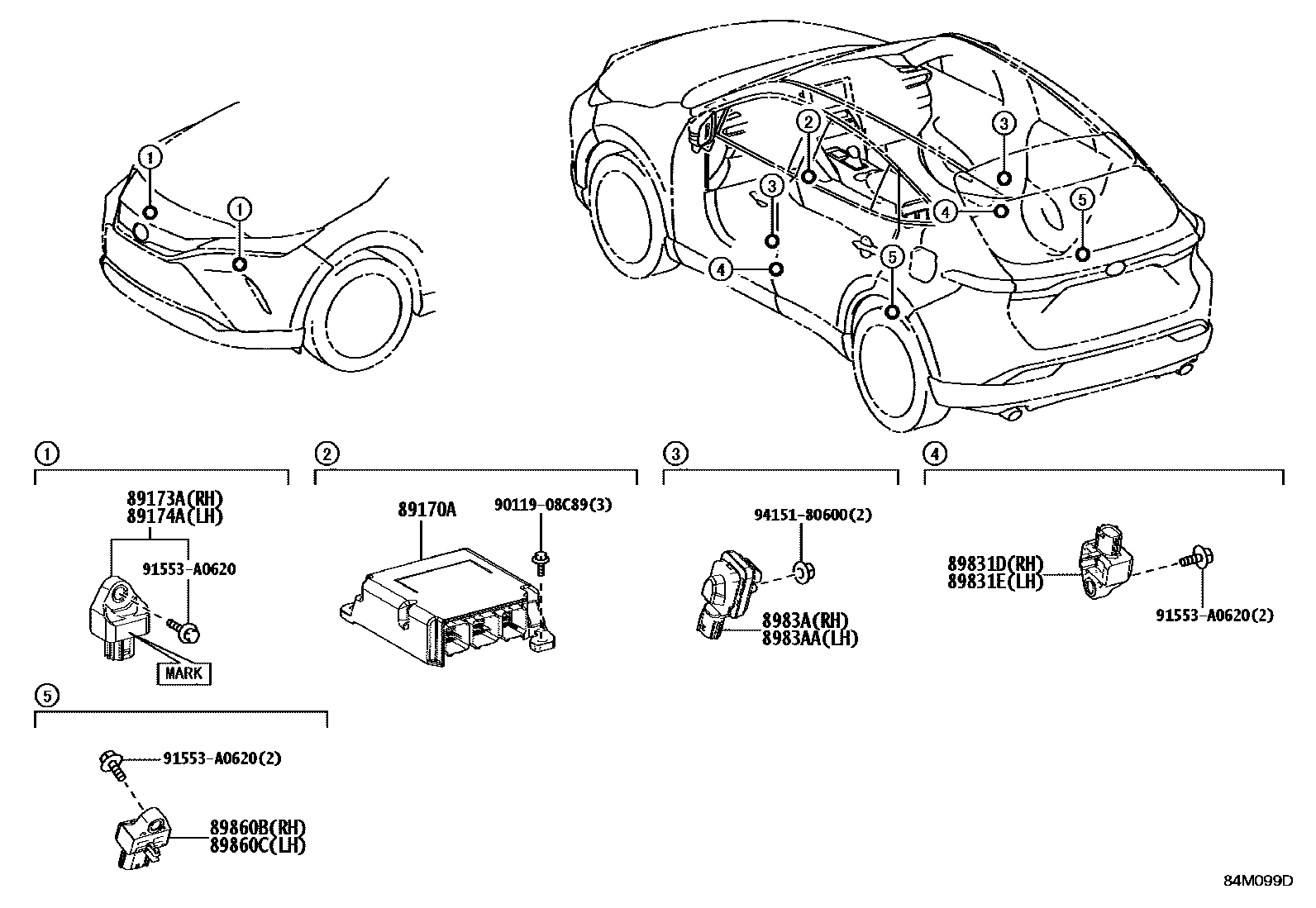

12 parts on this diagram · 1 diagram in section
