INTERIOR LAMP

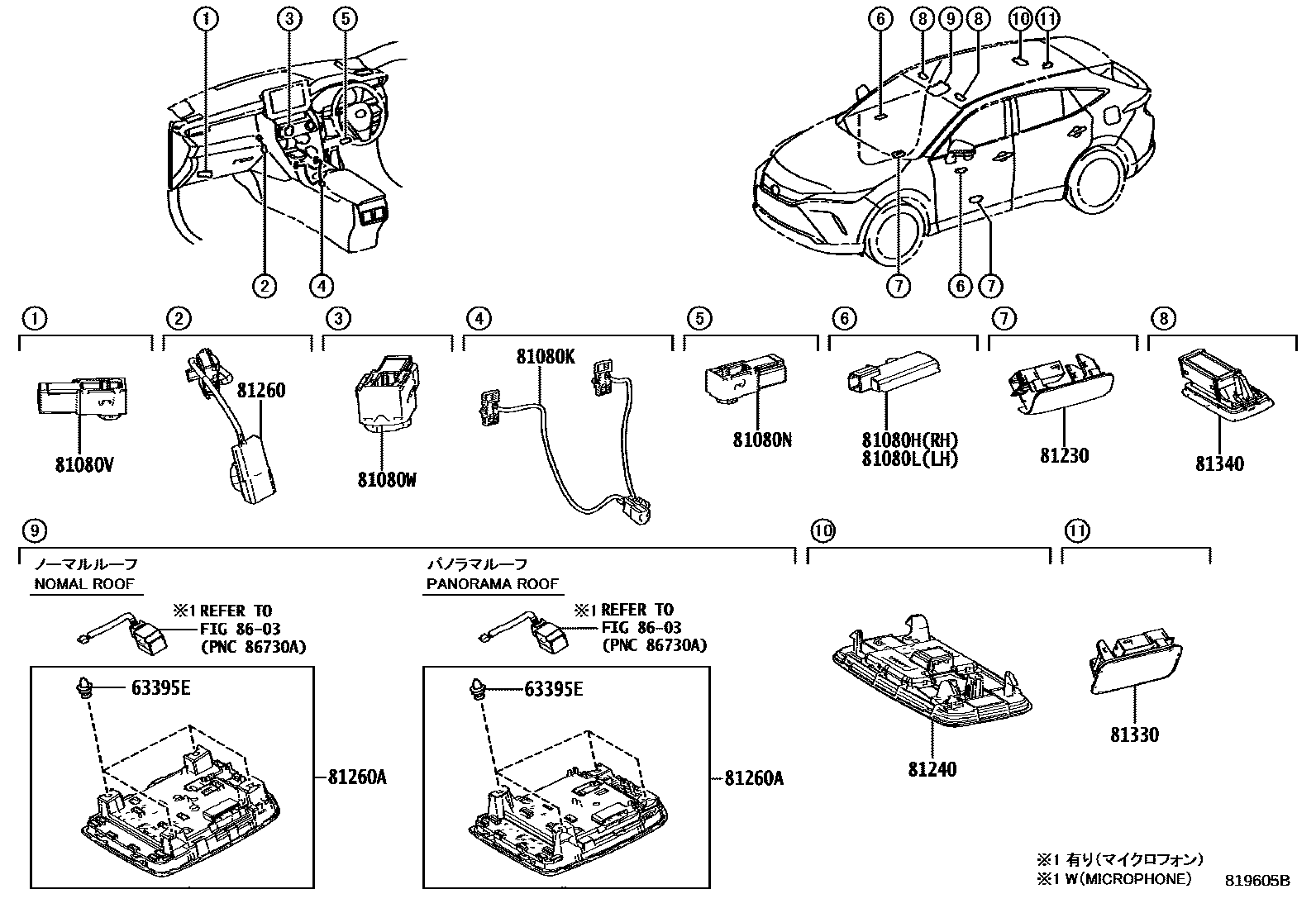

Parts diagram

63395ECLIP(FOR MAP LAMP)

main90467-09245i202006-202309

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-35010i202006-202210

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81081-48030i202006-202210

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-35020i202006-202210

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280i202006-202210

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33280i202006-202210

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81080-42040i202006-202309

81230LAMP ASSY, COURTESY

main81230-11030i202006-202309

81240LAMP ASSY, ROOM, NO.1

main81240-48030-B0i202006-202109

LT.GRAY,TRIM1#

main81240-48030-B0i202006-202109

LT.GRAY,TRIM2#

main81240-48030-C1i202006-202109

BLACK,TRIM2#,4#

main81240-48040-B0i202110-202309

LT.GRAY,TRIM2#

main81240-48040-B0i202110-202210

LT.GRAY,TRIM1#

main81240-48040-C1i202110-202210

BLACK,TRIM2#,4#

81260LAMP ASSY, GLOVE BOX

main81081-48050i202006-202210

81260ALAMP ASSY, MAP

main81208-48360i202006-202210

main81260-48L70i202210-202309

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010i202006-202309

81340LAMP ASSY, VANITY

main81340-48020i202210-202309

main81340-50260i202006-202210

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

14 parts on this diagram · 2 diagrams in section
