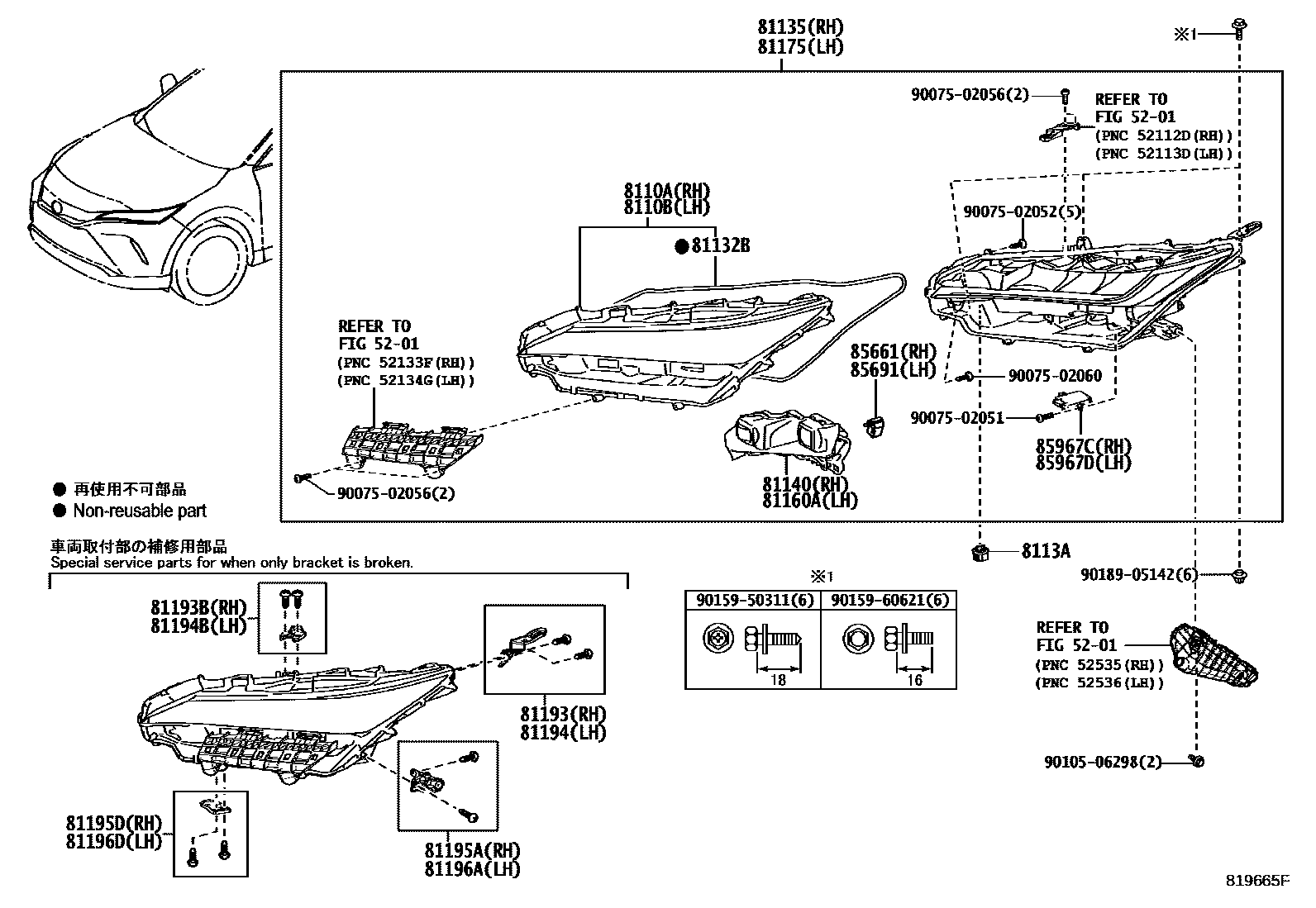

HEADLAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-48J00iAXUH8#,MXUA8#..S202006-202210

main8110A-48J10iAXUH8#,MXUA8#..G,Z202006-202210

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-48J00iMXUA80..S202210

main8110B-48J10iAXUH8#,MXUA8#..G,Z202006-202210

81132BGASKET, HEADLAMP LENS

main81132-48C30×2iAXUH8#,MXUA8#202006-202210

81135UNIT ASSY, HEADLAMP, RH

main81105-48J00iAXUH8#,MXUA8#..S202006-202210

main81145-48J10iAXUH8#,MXUA8#..G,Z202006-202210

8113ALED, HEADLAMP FRONT TURN SIGNAL

main81161-48J00×2iAXUH8#,MXUA8#..S202006-202107

main81965-48030×2iAXUH8#,MXUA8#..S202107-202202

81140UNIT ASSY, HEADLAMP LED, RH

main81130-48J00iAXUH8#,MXUA85..S202210-202309

main81130-48J10iAXUH8#,AXUP85,MXUA8#..G,Z202210

81160AUNIT ASSY, HEADLAMP LED, LH

main81170-48J00iAXUH8#,MXUA8#..S202006-202210

main81170-48J10iAXUH8#,MXUA8#..G,Z202006-202210

81175UNIT ASSY, HEADLAMP, LH

main81106-48J00iAXUH8#,MXUA85..S202210-202309

main81185-48J10iAXUH8#,MXUA8#..G,Z202006-202210

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48170iAXUH8#,MXUA8#202006-202210

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-48180iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48170iAXUH8#,MXUA8#202006-202210

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-48180iAXUH8#,MXUA8#202006-202210

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-48090iAXUH8#,MXUA8#202006-202210

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-48100iAXUH8#,MXUA8#202006-202210

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-48090iAXUH8#,MXUA8#202006-202210

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-48100iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

85661MOTOR, HEADLAMP LEVELING, RH

main85661-45010iAXUH8#,AXUP85,MXUA8#..G,Z202210

main85661-48050iMXUA80..S202210

85691MOTOR, HEADLAMP LEVELING, LH

main85661-48050iMXUA80..S202210

main85691-45010iAXUH8#,MXUA8#..G,Z202006-202210

85967CCOMPUTER, LIGHT CONTROL LED, RH

main85967-48100iAXUH8#,MXUA8#..G,Z202006-202210

main8596A-48020iMXUA80..S202210

85967DCOMPUTER, LIGHT CONTROL LED, LH

main85967-48090iAXUH8#,MXUA8#..G,Z202006-202210

main8596A-48010iAXUH8#,MXUA8#..S202006-202210

9007502051

main90075-02051

9007502052

main90075-02052

9007502056

main90075-02056

9007502060

main90075-02060

9010506298

main90105-06298

9015950311

main90159-50311

9015960621

main90159-60621

9018905142

main90189-05142

29 parts on this diagram · 2 diagrams in section
