REAR MOULDING

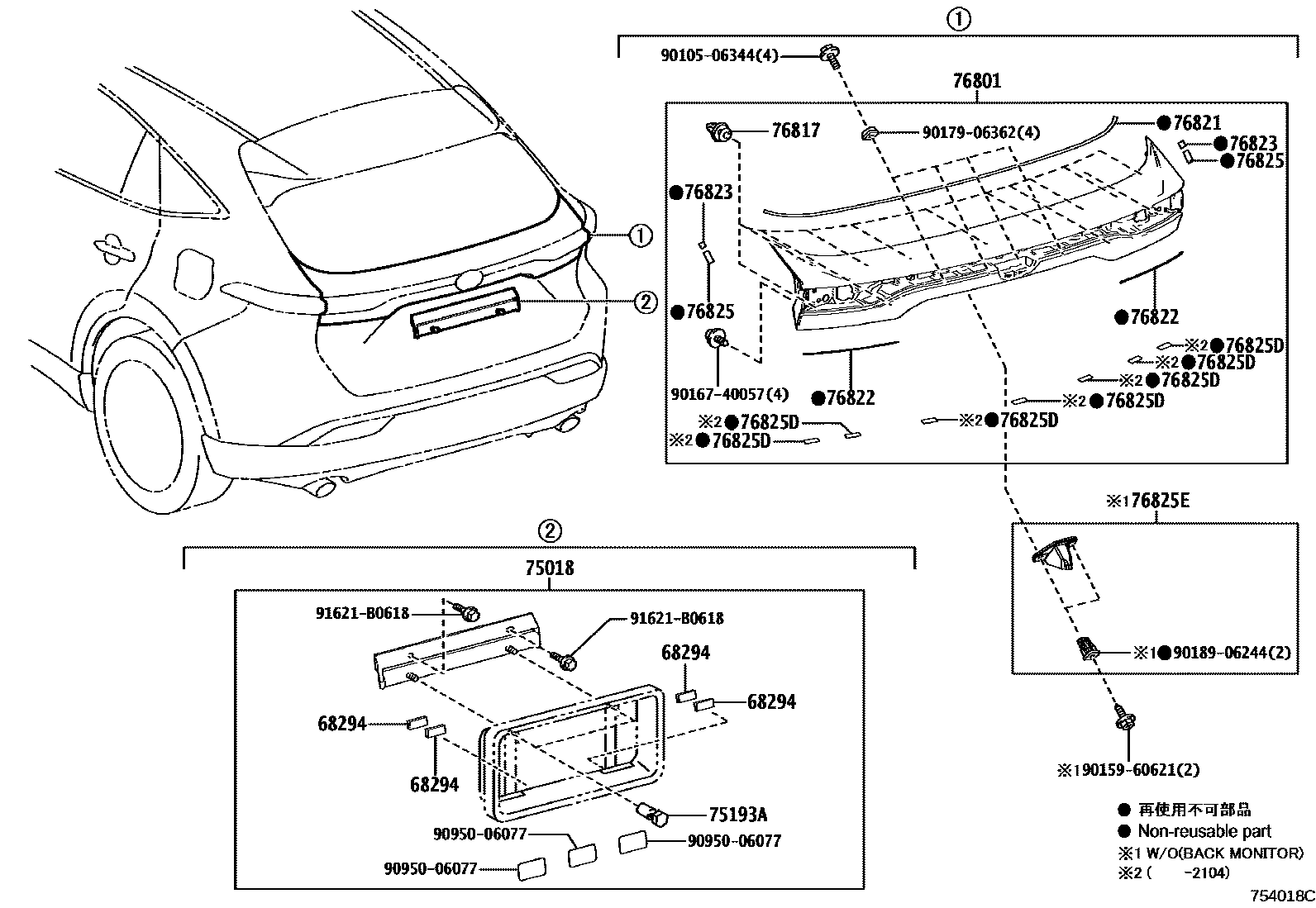

Parts diagram

68294DAM, BACK DOOR GLASS ADHESIVE

main68294-44030×4i202006-202112

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-21040i202006-202112

75193AHOLDER, REAR LICENSE PLATE

main75193-44010×2i202006-202112

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-48540-A0i202006-202104

WHITE PEARL CS.,070

main76801-48540-B0i202006-202104

SLATE GRAY ME.,1K4 ,1K9

main76801-48540-C0i202006-202104

BLACK,202

main76801-48540-C1i202006-202104

PRECIOUS BLACK,219

main76801-48540-D0i202006-202104

RED MC.,3T3

main76801-48540-E0i202006-202104

STEEL BLONDE ME.,4X1

main76801-48540-J0i202006-202104

DK. BLUE MC.,8X8

main76801-48541-A0i202104-202210

WHITE PEARL CS.,070

main76801-48541-A1i202210-202309

PLATINUM WHITE PEARL MC.,089

main76801-48541-B0i202210-202309

SLATE GRAY ME.,1K9

main76801-48541-B1i202210

GRAY ME.,1G3

main76801-48541-C0i202104-202210

BLACK,202

main76801-48541-C1i202210-202309

PRECIOUS BLACK,219

main76801-48541-D0i202210

RED MC.,3T3

main76801-48541-E0i202104-202210

STEEL BLONDE ME.,4X1

main76801-48541-J0i202104-202210

DK. BLUE MC.,8X8

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206×12i202006-202210

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-48060i202006-202210

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-48060×2i202006-202210

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-48020×2i202006-202210

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-48110×2i202006-202210

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76825-48110×7i202006-202104

76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76825-48100i202006-202112

9010506344

main90105-06344

9015960621

main90159-60621

9016740057

main90167-40057

9017906362

main90179-06362

9018906244

main90189-06244

9095006077

main90950-06077

91621B0618

main91621-B0618

18 parts on this diagram · 1 diagram in section
