FRONT SEAT & SEAT TRACK

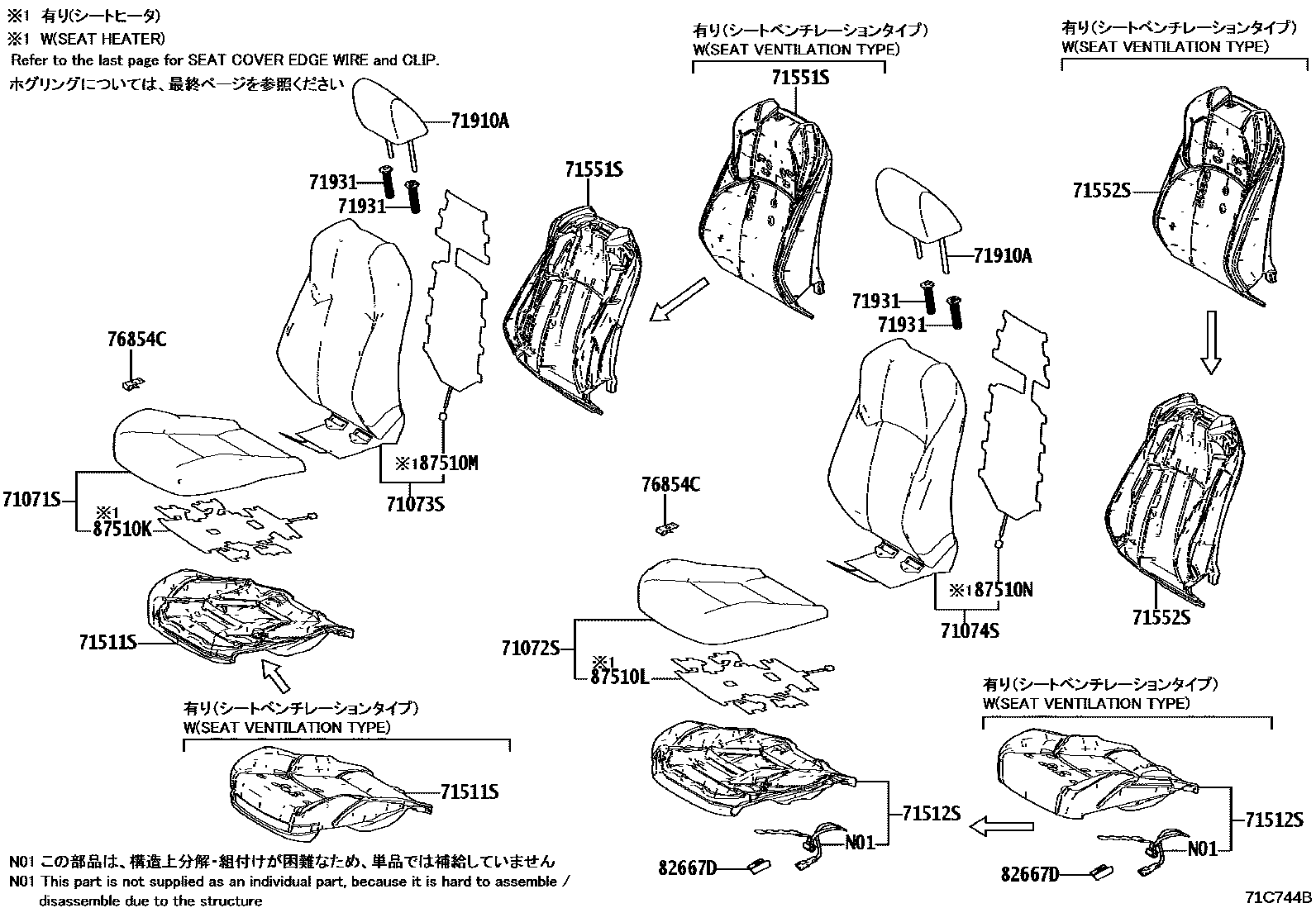

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-48D70-C1i202210
BLACK/GRAY,TRIM2#
main71071-48E21-C3i202210
BLACK/RED,TRIM2#
main71071-48E10-B1supersedes 71071-48D90-B1i202006-202205
main71071-48E10-C2supersedes 71071-48D90-C2i202006-202205
main71071-48E10-C3supersedes 71071-48D90-C3i202006-202205
main71071-48E11-B1supersedes 71071-48D90-B1i202206-202210
main71071-48E11-B2i202210-202211
main71071-48E11-C2supersedes 71071-48D90-C2i202206-202210
main71071-48E11-C3supersedes 71071-48D90-C3i202206-202210
main71071-48E11-C4i202210-202211
main71071-48E11-C5i202210-202211
main71071-48E11-C7i202210-202211
main71071-48E12-B2i202212
main71071-48E12-C4i202212
main71071-48E12-C5i202212
main71071-48E12-C7i202212
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-48C60-C1i202210-202309
BLACK/GRAY,TRIM2#
main71072-48E71-C3i202210
BLACK/RED,TRIM2#
main71072-48D10-B1supersedes 71072-48C80-B1i202006-202205
main71072-48D10-C2supersedes 71072-48C80-C2i202006-202205
main71072-48D10-C3supersedes 71072-48C80-C3i202006-202205
main71072-48D11-B1supersedes 71072-48C80-B1i202206-202210
main71072-48D11-B2i202210-202211
main71072-48D11-C2supersedes 71072-48C80-C2i202206-202210
main71072-48D11-C3supersedes 71072-48C80-C3i202206-202210
main71072-48D11-C4i202210-202211
main71072-48D11-C5i202210-202211
main71072-48D11-C7i202210-202211
main71072-48D12-B2i202212
main71072-48D12-C4i202212
main71072-48D12-C5i202212
main71072-48D12-C7i202212
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-48G20-C1i202210-202407
BLACK/GRAY,TRIM2#
main71073-48G20-C2i202407
BLACK/GRAY,TRIM2#
main71073-48G40-C7i202210-202407
BLACK/RED,TRIM2#
main71073-48G40-C8i202407
BLACK/RED,TRIM2#
main71073-48G60-B1supersedes 71073-48G30-B1i202006-202112
main71073-48G60-C2supersedes 71073-48G30-C2i202006-202112
main71073-48G60-C3supersedes 71073-48G30-C3i202006-202112
main71073-48G61-B1supersedes 71073-48G31-B1i202112-202201
main71073-48G61-C2supersedes 71073-48G31-C2i202112-202201
main71073-48G61-C3supersedes 71073-48G31-C3i202112-202201
main71073-48G62-20i202210-202310
main71073-48G62-21i202310
main71073-48G62-22i202310
main71073-48G62-23i202310
main71073-48G62-B1supersedes 71073-48G31-B3i202201-202210
main71073-48G62-B3i202210-202310
main71073-48G62-B4i202310
main71073-48G62-C2supersedes 71073-48G31-C8i202201-202210
main71073-48G62-C3supersedes 71073-48G31-C9i202201-202210
main71073-48G62-C8i202210-202310
main71073-48G62-C9i202210-202310
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-48F80-C1i202210-202407
BLACK/GRAY,TRIM2#
main71074-48F80-C2i202407
BLACK/GRAY,TRIM2#
main71074-48G00-C7i202210-202407
BLACK/RED,TRIM2#
main71074-48G00-C8i202407
BLACK/RED,TRIM2#
main71074-48G20-B1supersedes 71074-48F90-B1i202006-202112
main71074-48G20-C2supersedes 71074-48F90-C2i202006-202112
main71074-48G20-C3supersedes 71074-48F90-C3i202006-202112
main71074-48G21-B1supersedes 71074-48F91-B1i202112-202201
main71074-48G21-C2supersedes 71074-48F91-C2i202112-202201
main71074-48G21-C3supersedes 71074-48F91-C3i202112-202201
main71074-48G22-20i202210-202310
main71074-48G22-21i202310
main71074-48G22-22i202310
main71074-48G22-23i202310
main71074-48G22-B1supersedes 71074-48F91-B3i202201-202210
main71074-48G22-B3i202210-202310
main71074-48G22-B4i202310
main71074-48G22-C2supersedes 71074-48F91-C8i202201-202210
main71074-48G22-C3supersedes 71074-48F91-C9i202201-202210
main71074-48G22-C8i202210-202310
main71074-48G22-C9i202210-202310
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-48430i202210
main71511-48460i202210
main71511-48470supersedes 71511-48460i202006-202210
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-48120i202006-202210
main71502-48130i202210
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-48270i202006-202210
main71551-48370i202305-202309
main71551-48280i202210-202305
main71551-48380i202306
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-48260i202006-202210
main71552-48360i202305-202309
main71552-48270i202006-202210
main71552-48370i202306
71910AHEADREST ASSY, FRONT SEAT
main71910-48A60-C0×2i202006-202112
BLACK/GRAY,TRIM2#
main71910-48A60-C1×2i202112-202210
BLACK/GRAY,TRIM2#
main71910-48E51-B2×2i202210
MEDIUM GRAY/BEIGE,TRIM1#
main71910-48E51-C2×2i202210
BLACK/GRAY,TRIM2#
main71910-48E51-C3×2i202210
BLACK/CAMEL,TRIM4#
main71910-48F20-C0×2i202006-202112
BLACK/GRAY,TRIM2#
main71910-48F20-C1×2i202210-202309
BLACK/GRAY,TRIM2#
main71910-48F31-B2×2i202210
MEDIUM GRAY/BEIGE,TRIM1#
main71910-48F31-C2×2i202210
BLACK/GRAY,TRIM2#
main71910-48F31-C3×2i202210
BLACK/CAMEL,TRIM4#
main71910-48F31-C5×2i202210
BLACK/RED,TRIM2#
main71910-48E80-B1×2supersedes 71910-48E50-B1i202006-202112
main71910-48E80-C0×2supersedes 71910-48E50-C0i202006-202112
main71910-48E80-C1×2supersedes 71910-48E50-C1i202006-202112
main71910-48E81-B2×2supersedes 71910-48E51-B2i202112-202210
main71910-48E81-C2×2supersedes 71910-48E51-C2i202210
main71910-48E81-C3×2supersedes 71910-48E51-C3i202112-202210
main71910-48F40-B1×2supersedes 71910-48F30-B1i202006-202112
main71910-48F40-C0×2supersedes 71910-48F30-C0i202006-202112
main71910-48F40-C1×2supersedes 71910-48F30-C1i202006-202112
main71910-48F41-B2×2supersedes 71910-48F31-B2i202210
main71910-48F41-C2×2supersedes 71910-48F31-C2i202112-202210
main71910-48F41-C3×2supersedes 71910-48F31-C3i202112-202210
main71910-48F41-C5×2i202210
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2i202006-202210
main71931-47030-C4×2i202210
76854CRETAINER, FRONT SEAT CUSHION COVER
main76854-44010i202210
82667DHOLDER, CONNECTOR
main82666-47630i202210-202309
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-48400i202210
main87510-48280i202006-202206
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-48410i202210
main87510-48290i202006-202206
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-42060i202210
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-42060i202210

16 parts on this diagram · 7 diagrams in section
