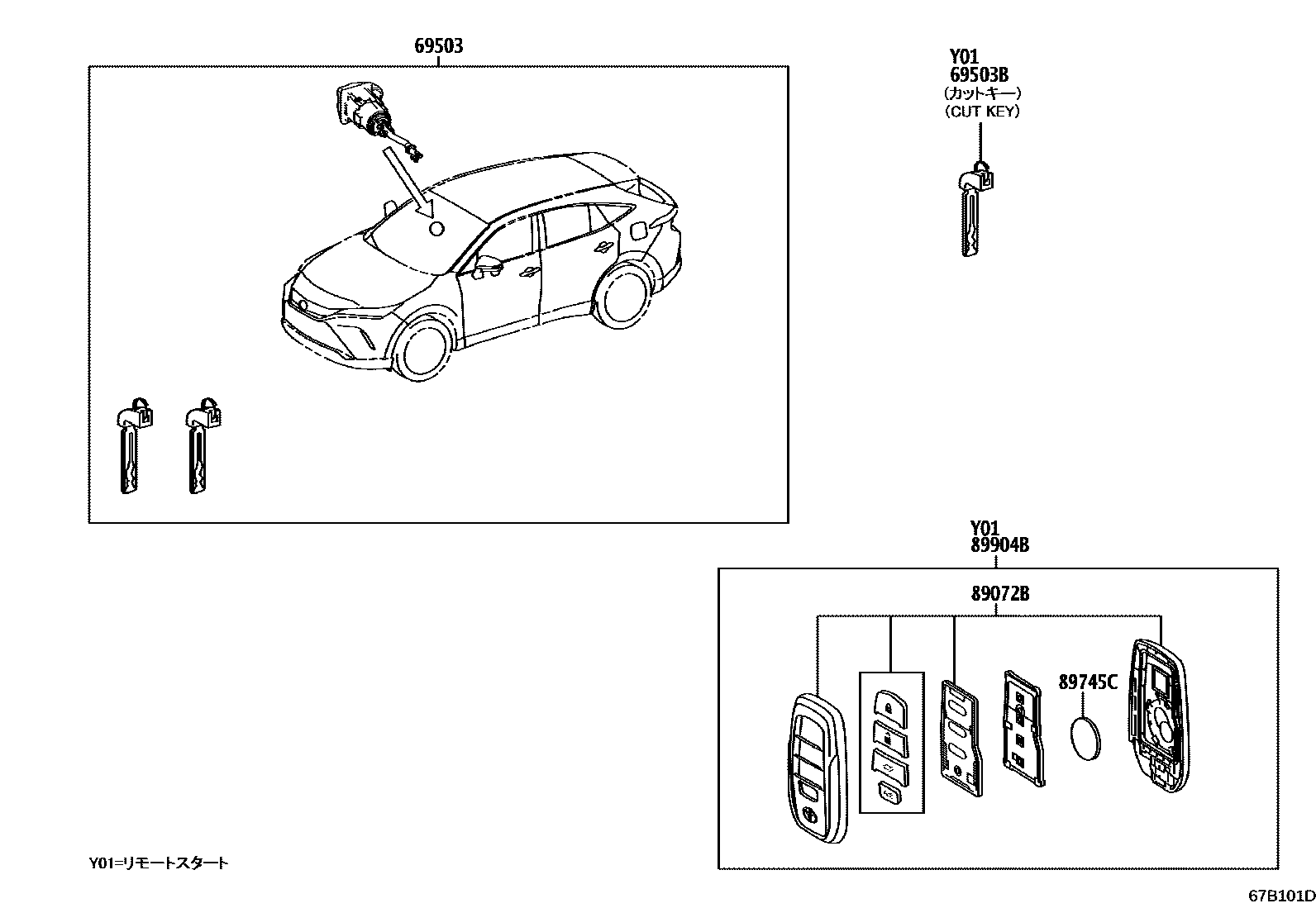

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-48610iAXUH8#,MXUA85..S202210-202309

69503BKEY, CUT

main69515-K0010×2iAXUH8#,MXUA8#202006-202210

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-48A40×2iAXUP85202210

main89072-48E60×2iMXUA8#..S202006-202210

main89072-48E70×2iAXUH8#..S202006-202210

main89072-48E80×2iMXUA8#..G,Z202006-202210

main89072-48E90×2iAXUH8#..G,Z202006-202210

89745CBATTERY, TRANSMITTER

main89745-K0010iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-48010iMXUA8#..S202006-202110

main8990H-48011iMXUA8#..S202111-202210

main8990H-48012iMXUA80..S202404

main8990H-48020iAXUH8#..S202006-202110

main8990H-48021iAXUH8#..S202111-202210

main8990H-48030iMXUA8#..G,Z202006-202110

main8990H-48031iMXUA8#..G,Z202111-202210

main8990H-48032iAXUH8#,MXUA8#..G,Z202404

main8990H-48040iAXUH8#..G,Z202006-202110

main8990H-48041iAXUH8#..G,Z202111-202210

main8990H-48130iAXUP85202210-202403

main8990H-48131iAXUP85202404

5 parts on this diagram · 1 diagram in section
