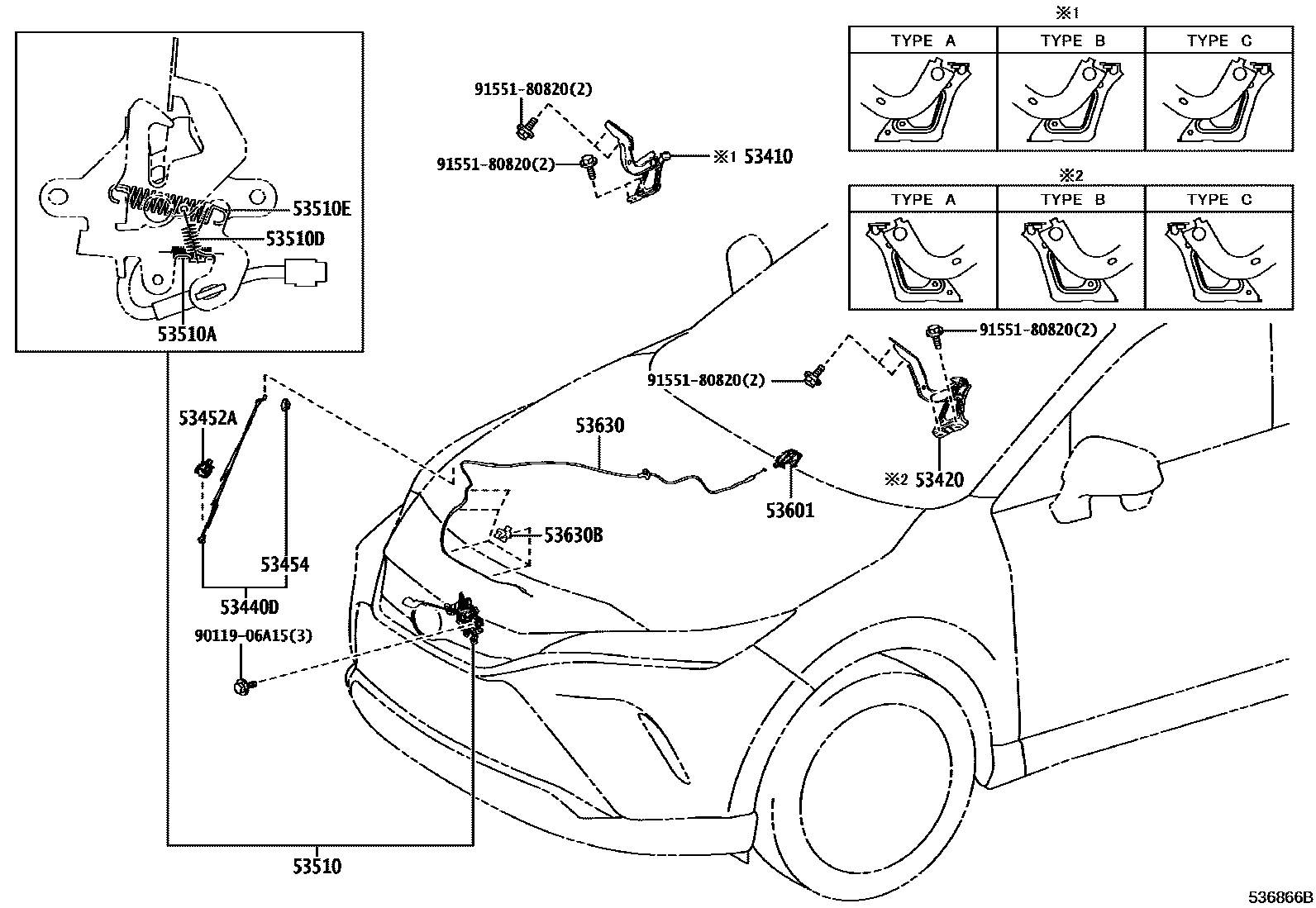

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-48180iAXUH8#,MXUA8#202010-202206

main53410-48180iAXUH8#,MXUA8#202206-202309

main53410-48200iAXUH8#,MXUA8#202006-202010

53420HINGE ASSY, HOOD, LH

main53420-48200iAXUH8#,MXUA8#202206-202309

main53420-48200iAXUH8#,MXUA8#202006-202206

53440DSUPPORT ASSY, HOOD

main53440-48050iAXUH8#,MXUA8#202006-202303

main53440-48051iAXUH8#,MXUA85..S202304-202309

53452AHOLDER, HOOD STAY

main53452-12130iAXUH8#,MXUA85..S202006-202309

53454CLIP, HOOD SUPPORT ROD

main53454-52010iAXUH8#,MXUA8#202006-202309

53510LOCK ASSY, HOOD

main53510-48280iAXUH8#,MXUA8#202006-202309

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAXUH8#,MXUA8#202006-202309

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAXUH8#,MXUA8#202006-202309

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202105-202309

main90506-16080iAXUH8#,MXUA8#202006-202105

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iAXUH8#,MXUA8#..G,Z202006-202309

BLACK,TRIM1#,2#,4#

main53601-30100-C0iAXUH8#,MXUA8#..G,Z202006-202309

BLACK,TRIM2#

main53601-62010-C0iAXUH8#,MXUA8#..G,Z202310

BLACK,TRIM1#,2#,4#

main53601-62010-C0iAXUH8#,MXUA8#..G,Z202310

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-48120iAXUH8#,MXUA8#202006-202202

main53630-48121iAXUH8#,MXUA8#202203-202309

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iAXUH8#,MXUA8#202006-202309

9011906A15

main90119-06A15

9155180820

main91551-80820

14 parts on this diagram · 1 diagram in section
