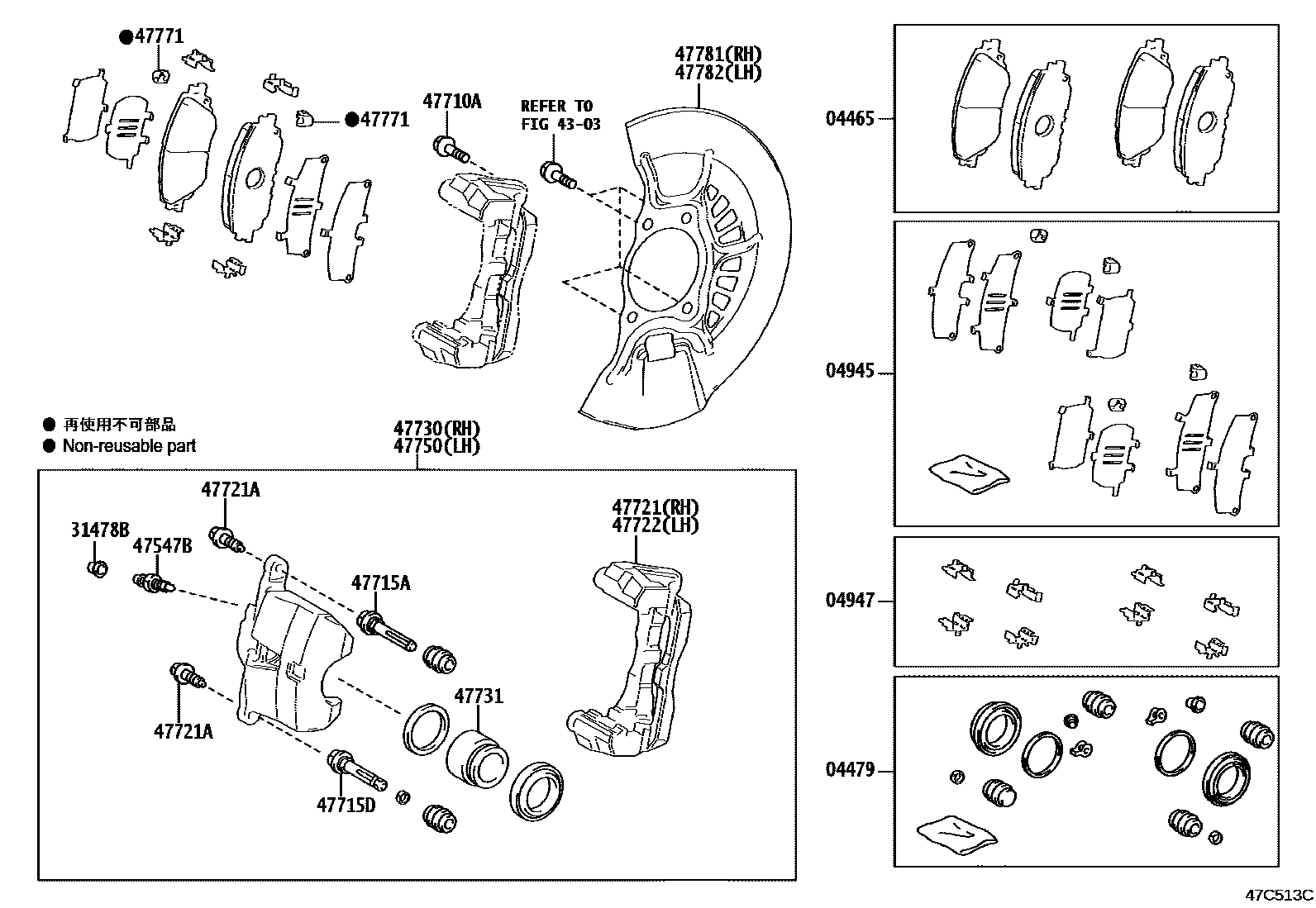

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iAXUH8#,MXUA85..S202006-202405

main04465-33510iMXUA80;AXUH8#,MXUA85..G,Z202406

main04465-78020iAXUP85202210

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iAXUH8#,MXUA8#202006-202309

main04478-42030iAXUP85202210

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33300iAXUH8#,MXUA8#202006-202205

main04945-42100iAXUH8#,MXUA8#202206-202309

main04945-48190iAXUP85202210

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33281iAXUH8#,MXUA8#202006-202309

main04947-48080iAXUP85202210

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXUH8#,MXUA85..S202006-202309

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAXUP85202210

main47547-20010iAXUH8#,MXUA85..S202006-202309

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMXUA8#202006-202309

main90105-12401iAXUH8#202006-202309

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iAXUP85202210

main47715-52190iAXUH8#,MXUA8#202006-202309

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iAXUH8#,MXUA85..S202006-202309

main47715-48150iAXUP85202210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33382iAXUH8#,MXUA85..S202006-202309

main47721-42130iAXUP85202210

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAXUP85202210

main90105-08164iMXUA80;AXUH8#,MXUA85..G,Z202006-202309

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33312iAXUH8#,MXUA8#202006-202309

main47722-42130iAXUP85202210

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33381iAXUH8#,MXUA8#202006-202309

main47730-42130iAXUP85202210

47731PISTON, FRONT DISC BRAKE

main47731-12A10iAXUH8#,MXUA8#202006-202309

main47731-48150iAXUP85202210

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33311iAXUH8#,MXUA8#202006-202309

main47750-42130iAXUP85202210

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iAXUH8#202006-202012

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iAXUH8#,MXUA8#202006-202309

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iAXUH8#,MXUA8#202006-202309

19 parts on this diagram · 2 diagrams in section
