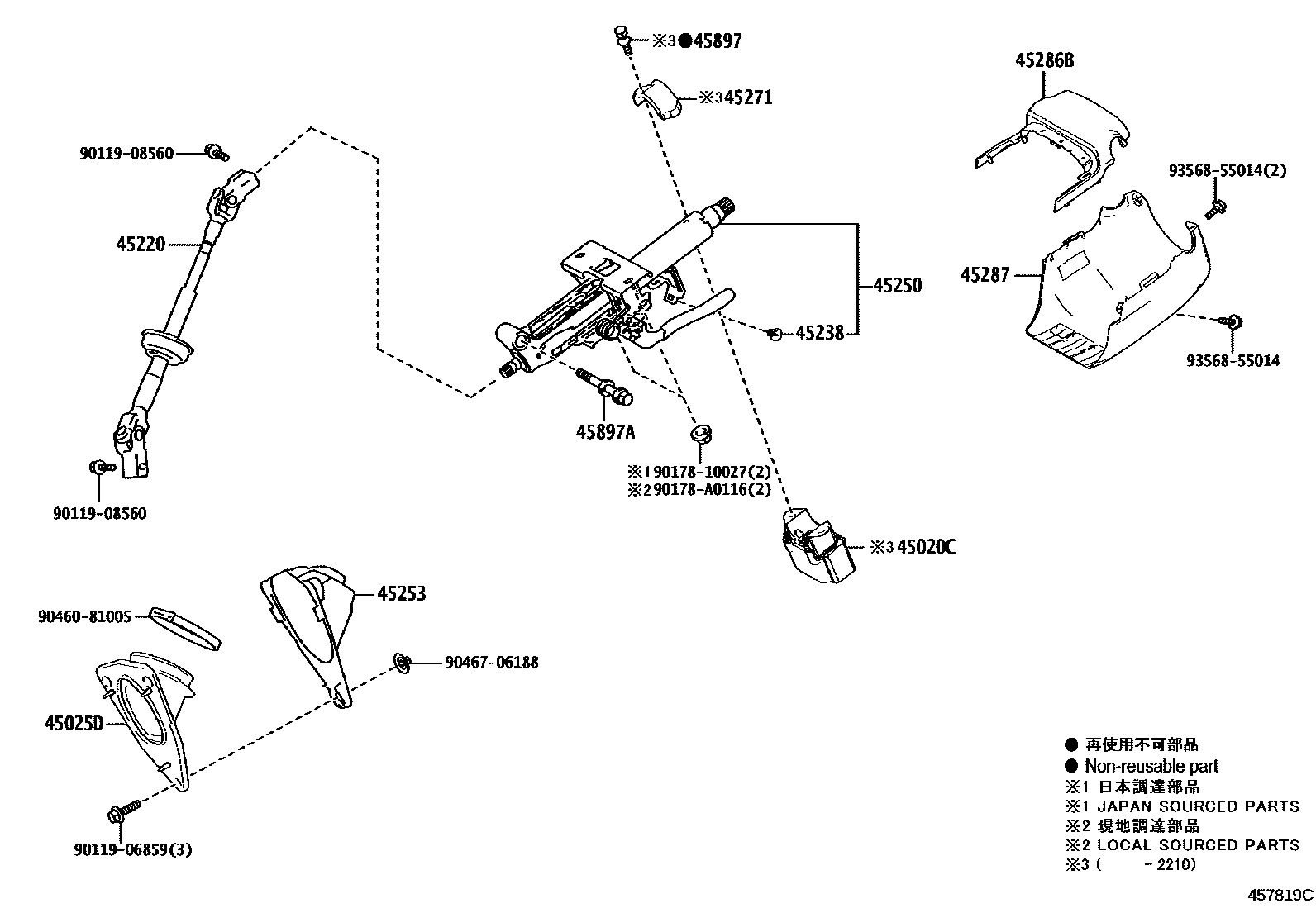

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-48120iAXUH8#,MXUA8#..G,Z202006-202210

main45020-K0010iAXUH8#,MXUA8#..S202006-202210

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42090iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202006-202309

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-42020iAXUH8#,MXUA85..S202006-202309

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAXUH8#,AXUP85,MXUA8#..G,Z202006-202210

main45238-52010iAXUH8#,MXUA8#..S202006-202309

45250COLUMN ASSY, STEERING

main45250-42420iMXUA80..S202006-202309

main45250-48430iAXUH8#,MXUA8#..G,Z202006-202210

45253COVER, STEERING COLUMN HOLE

main45253-42030iAXUH8#,MXUA8#202006-202309

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iAXUH8#,MXUA8#..S202006-202210

45286BCOVER, STEERING COLUMN, UPR

main45286-33290-C0iAXUH8#,MXUA85..S202006-202309

BLACK,TRIM2#

main45286-33290-C0iAXUH8#,MXUA8#..G,Z202006-202210

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-33230-C0iMXUA80..S202006-202309

BLACK,TRIM2#

main45024-33240-C0iAXUH8#,AXUP85,MXUA8#..G,Z202006-202210

BLACK,TRIM1#,2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iAXUH8#,MXUA8#202006-202210

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXUH8#,MXUA8#202006-202309

9011906859

main90119-06859

9011908560

main90119-08560

9017810027

main90178-10027

90178A0116

main90178-A0116

9046081005

main90460-81005

9046706188

main90467-06188

9356855014

main93568-55014

18 parts on this diagram · 2 diagrams in section
