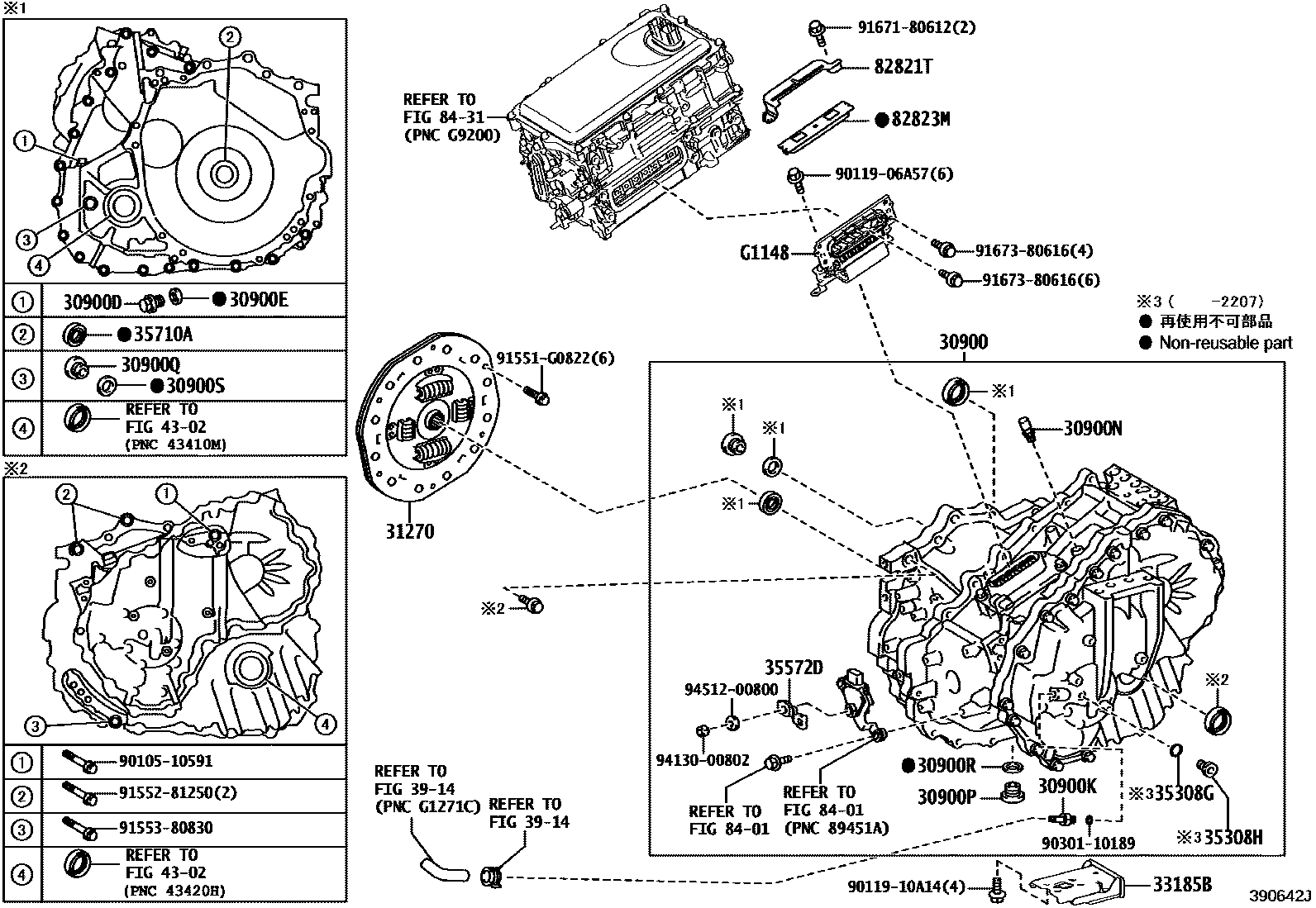

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1��������������������� 0002 1��������������������� 0003 1�����������

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-42020iAXUH8#..S202210-202309

main30900-42051iAXUP85202210

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAXUH8#202006-202210

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAXUH8#202006-202210

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAXUH8#202006-202210

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iAXUH8#202006-202210

main90930-03223iAXUP85202210

30900PPLUG, DRAIN(HEV)

main90341-18016iAXUH8#202006-202210

30900QPLUG, FILLER(HEV)

main90341-18016iAXUH8#202006-202210

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAXUH8#202006-202210

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAXUH8#202006-202210

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-33030iAXUH8#202006-202210

main31270-48040iAXUP85202210

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-42020iAXUH8#202006-202210

main33185-42030iAXUP85202210

35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iAXUH8#202006-202207

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iAXUH8#202006-202207

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-33070iAXUH8#202006-202210

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-27011iAXUH8#..G,Z202210

main90311-29003iAXUP85202210

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iAXUH8#..S202210-202309

82823MCAP, TERMINAL

main82823-47040iAXUH8#,AXUP85..G,Z202210

8401

8431

G1148CABLE, MOTOR

mainG114833050iAXUH8#202006-202210

mainG114848110iAXUP85202210

9010510591

main90105-10591

9011906A57

main90119-06A57

9011910A14

main90119-10A14

9030110189

main90301-10189

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

33 parts on this diagram · 3 diagrams in section
