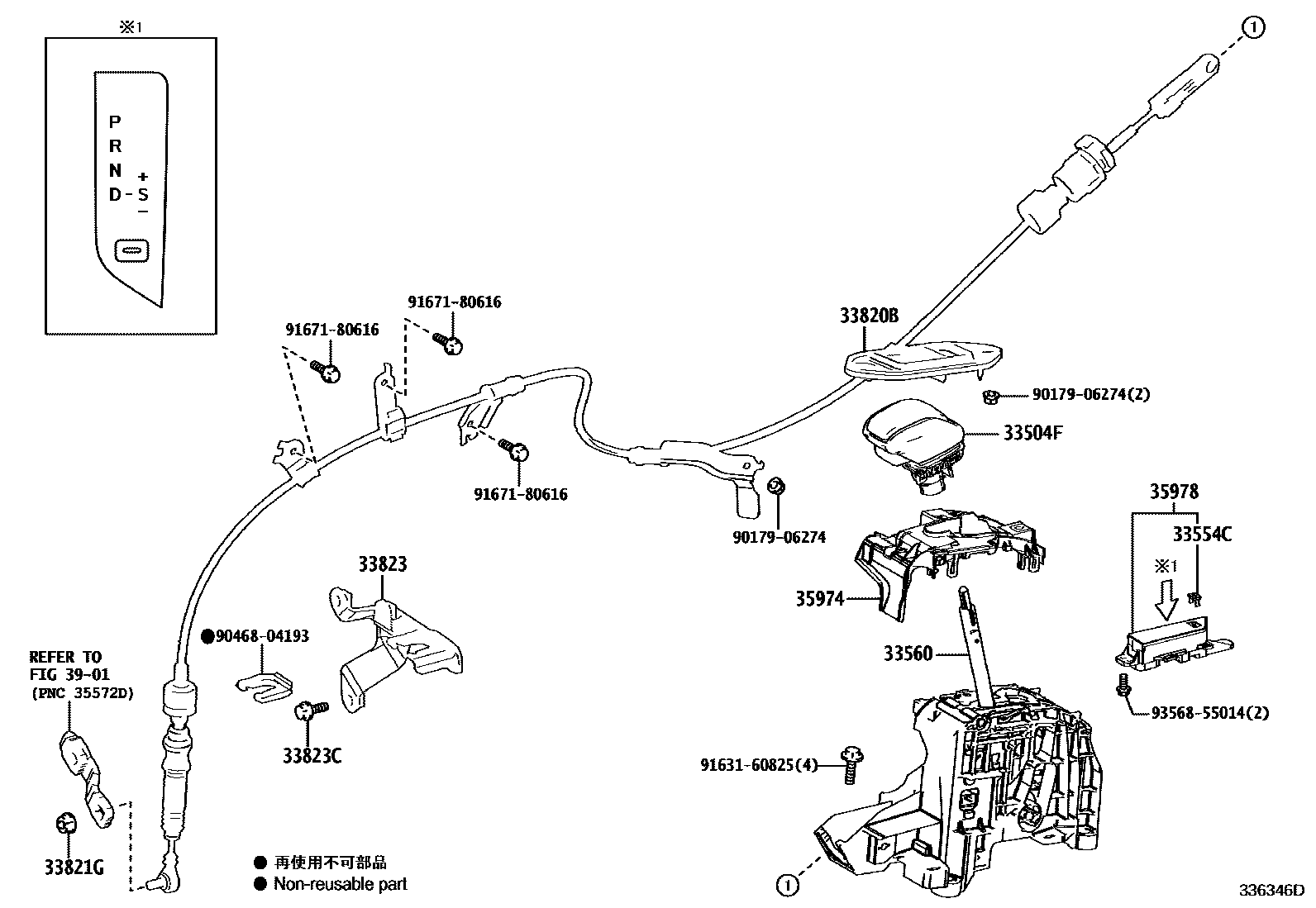

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-40050-C0iAXUH8#,MXUA8#..G,Z; AXUH8#,MXUA8#..S202006-202210

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-48110iAXUH8#,MXUA8#202006-202210

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-10020iAXUH8#,MXUA8#202006-202210

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-48420iAXUP85202210

main33820-48430iMXUA80;MXUA85..G,Z202210

main33820-48440iAXUH80..S202210-202309

main33820-48450iAXUH85202006-202210

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iAXUH8#,AXUP85..G,Z202210

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMXUA80;MXUA85..G,Z202210

main33823-42050iAXUH8#,AXUP85..G,Z202210

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80820×2iAXUH8#,MXUA85..S202210-202309

35974HOUSING, POSITION INDICATOR, LOWER

main35974-48190iAXUH8#,MXUA85..S202210-202309

35978INDICATOR, SHIFT POSITION

main35978-48070iMXUA80;MXUA85..G,Z202210

main35978-48090iAXUH8#..S202210-202309

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

9017906274

main90179-06274

9046804193

main90468-04193

9163160825

main91631-60825

9167180616

main91671-80616

9356855014

main93568-55014

15 parts on this diagram · 3 diagrams in section
