ENGINE OVERHAUL GASKET KIT

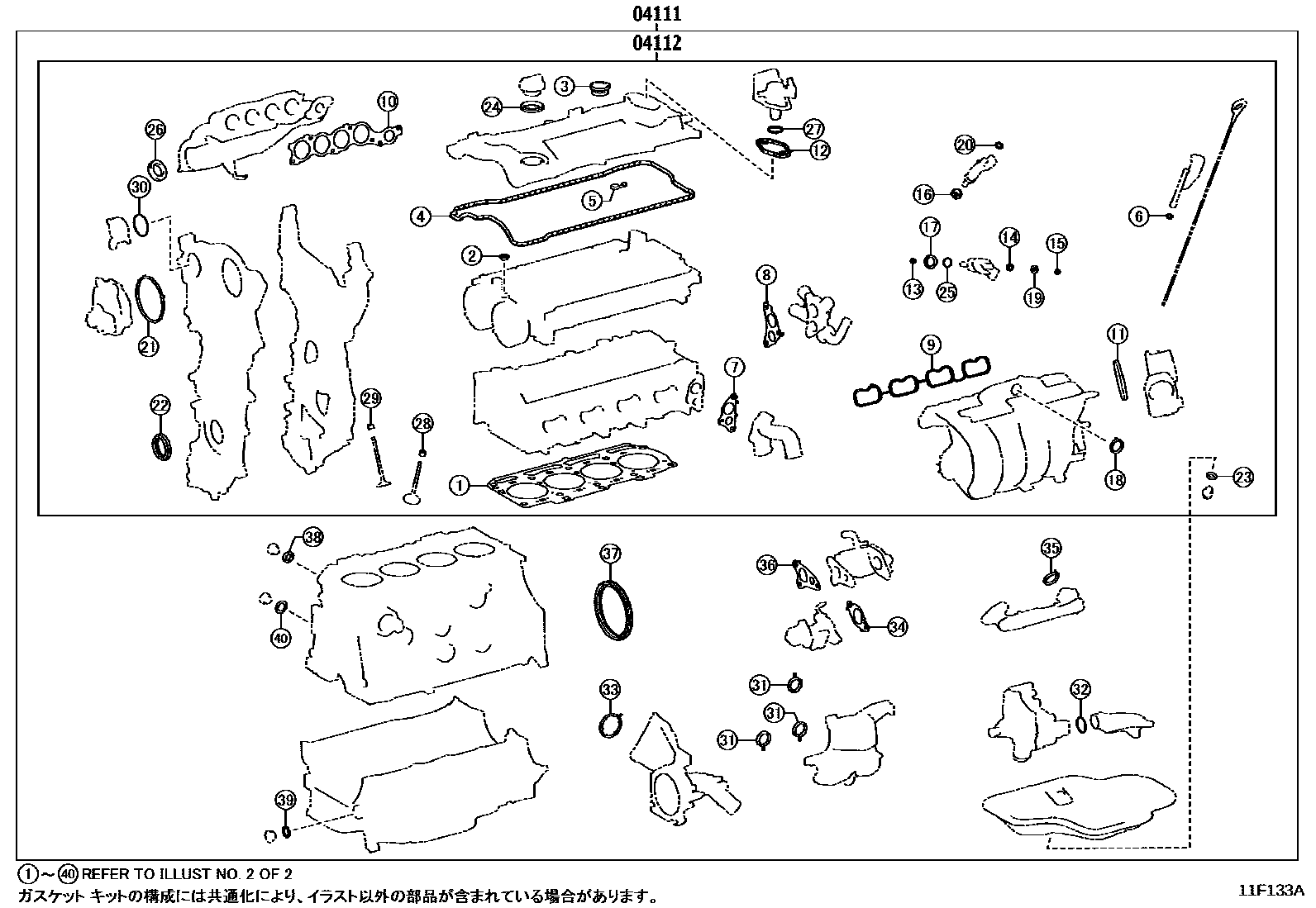

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-24170i202006-202107

main04111-24171i202107-202309

main04111-25210i202006-202103

main04111-25240i202104-202108

main04111-25241i202108-202210

main04111-25290i202210-202309

04112GASKET KIT, ENGINE VALVE GRIND

main04112-24090i202006-202107

main04112-24091i202107-202309

main04112-25150i202006-202103

main04112-25180i202104-202108

main04112-25181i202108-202309

2 parts on this diagram · 4 diagrams in section
