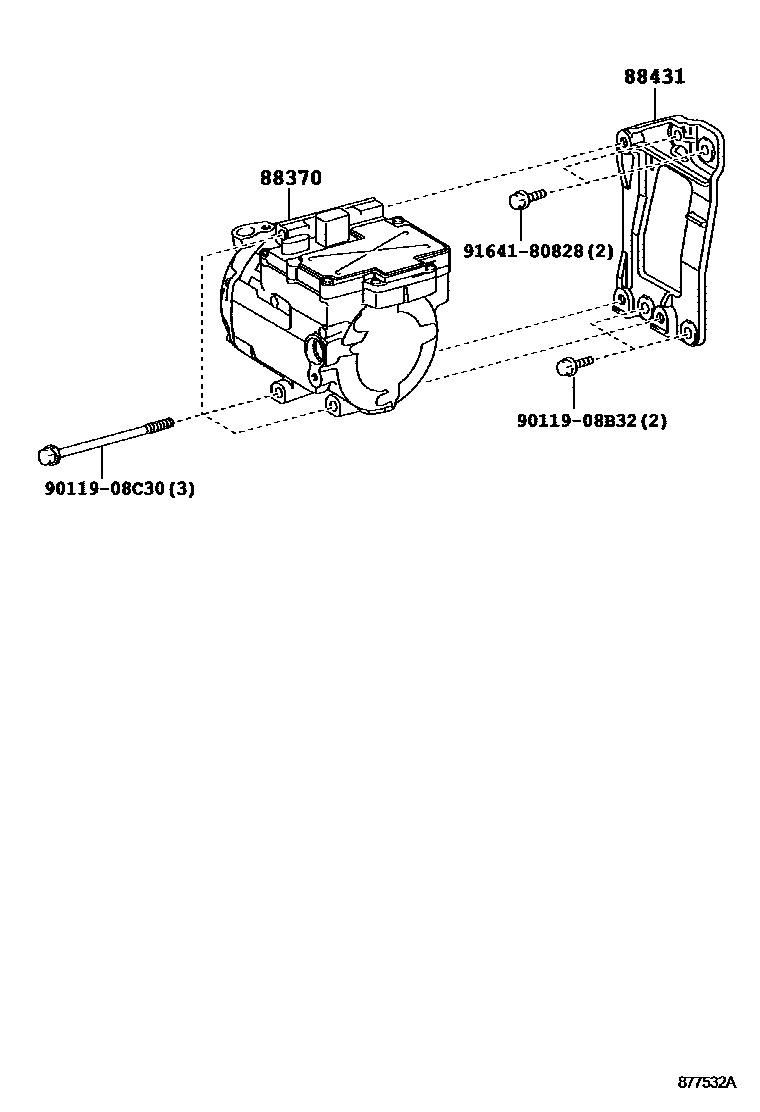

HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-48021iMHU38200503-200708

main88370-48022iMHU38200708-201206

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-48031iMHU38200503-200708

main88431-48040iMHU38200708

9011908B32

main90119-08B32

9011908C30

main90119-08C30

9164180828

main91641-80828

5 parts on this diagram · 1 diagram in section
