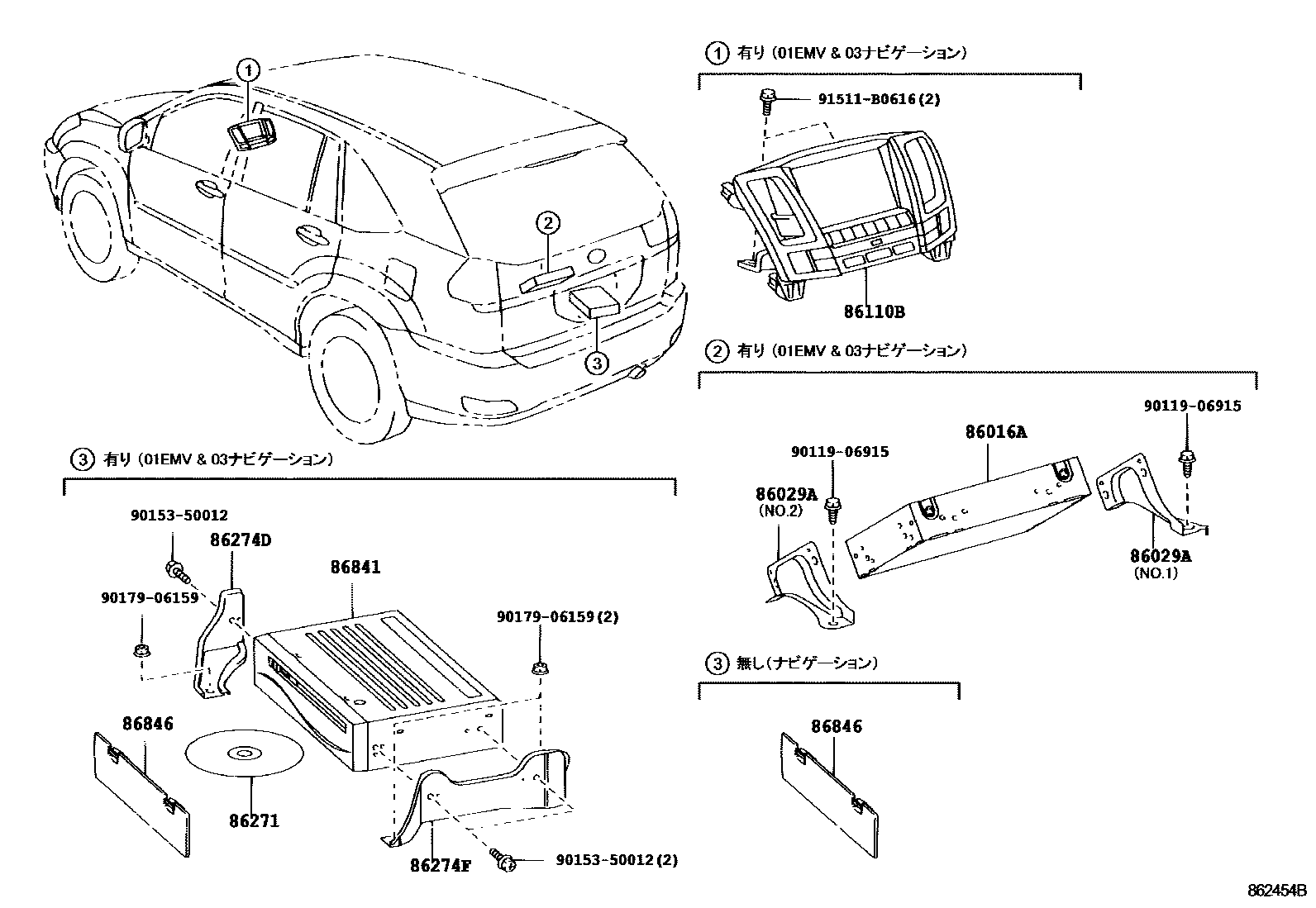

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86016APARTS SET, TELEVISION TUNER

main86016-48030iMHU38200503-200608

main86016-48040iMHU38200608

86029ABRACKET SET, TELEVISION, NO.1

main86029-48050iMHU38200503-200608

main86029-48060iMHU38200503-200608

main86029-48110iMHU38200608

86110BMULTI-DISPLAY ASSY

main86110-48190iMHU38200503-200607

main86110-48380iMHU38200608-200710

main86110-48381iMHU38200710-201206

86271DISC, DISC PLAYER

main86271-52043iMHU38200503-200509

sub08664-00G16

main86271-52045iMHU38200509-200604

sub08664-00J16

main86271-52046iMHU38200604-200608

sub08664-00K16

86274DBRACKET, DISC PLAYER

main86274-48090iMHU38200503-200607

main86274-48150iMHU38200608-201205

86274FBRACKET, DISC PLAYER, NO.2

main86274-48100iMHU38200503-200607

main86274-48160×2iMHU38200608-201205

86841COMPUTER, NAVIGATION

main86840-48062iMHU38200608-200702

main86840-48063iMHU38200703-200708

main86840-48065iMHU38200708-200803

main86840-48066iMHU38200804-200808

main86840-48067iMHU38200809-200903

main86840-48068iMHU38200904-200908

main86840-48069iMHU38200909-201004

main86840-48140iMHU38201004-201009

main86840-48141iMHU38201009-201104

main86840-48142iMHU38201104-201109

main86840-48143iMHU38201109-201206

sub86840-48144

main86841-48010iMHU38200503-200608

86846PLATE, NAVIGATION COMPUTER

main86846-48010iMHU38200503

9011906915

main90119-06915

9015350012

main90153-50012

9017906159

main90179-06159

91511B0616

main91511-B0616

12 parts on this diagram · 2 diagrams in section
