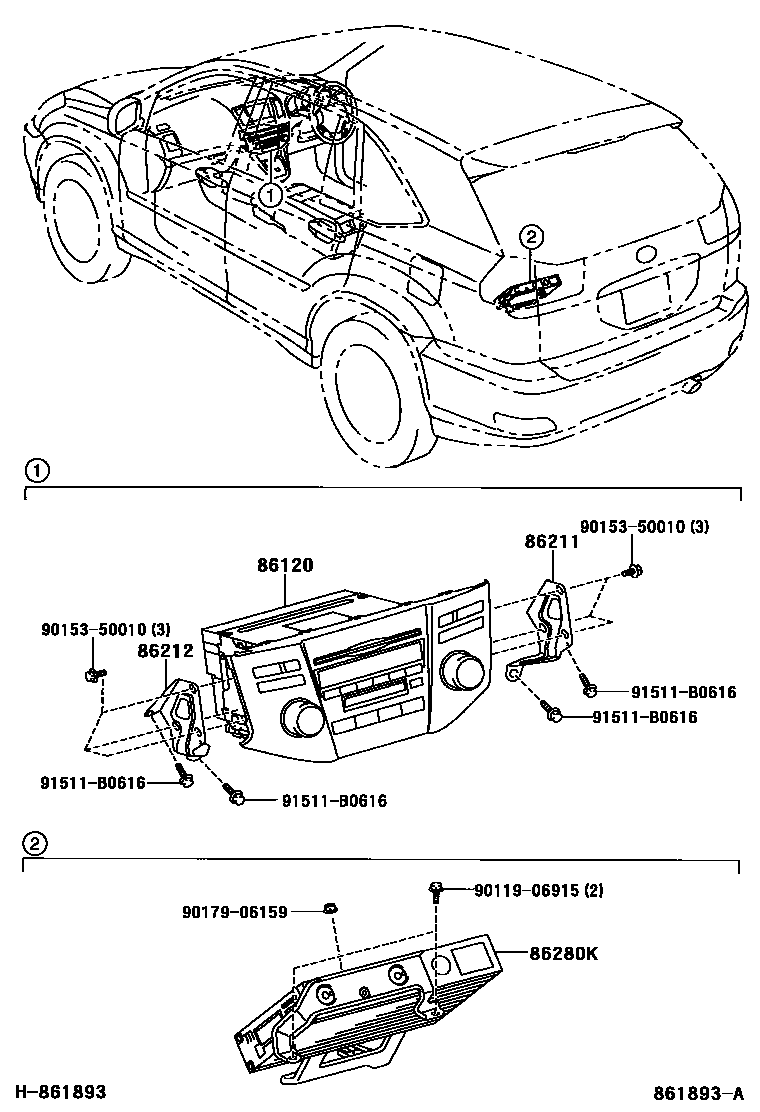

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1CONDENSER & NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-48740iMHU38200503-200608

main86120-48760iMHU38200503-200608

main86120-48B80iMHU38200608

main86120-48B90iMHU38200608

main86120-48C00iMHU38200608

main86120-48E30iMHU38200608

86211BRACKET, RADIO, NO.1

main86211-48030iMHU38200503

86212BRACKET, RADIO, NO.2

main86212-48030iMHU38200503

86280KAMPLIFIER ASSY, STEREO COMPONENT

9011906915

main90119-06915

9015350010

main90153-50010

9017906159

main90179-06159

91511B0616

main91511-B0616

8 parts on this diagram · 4 diagrams in section
