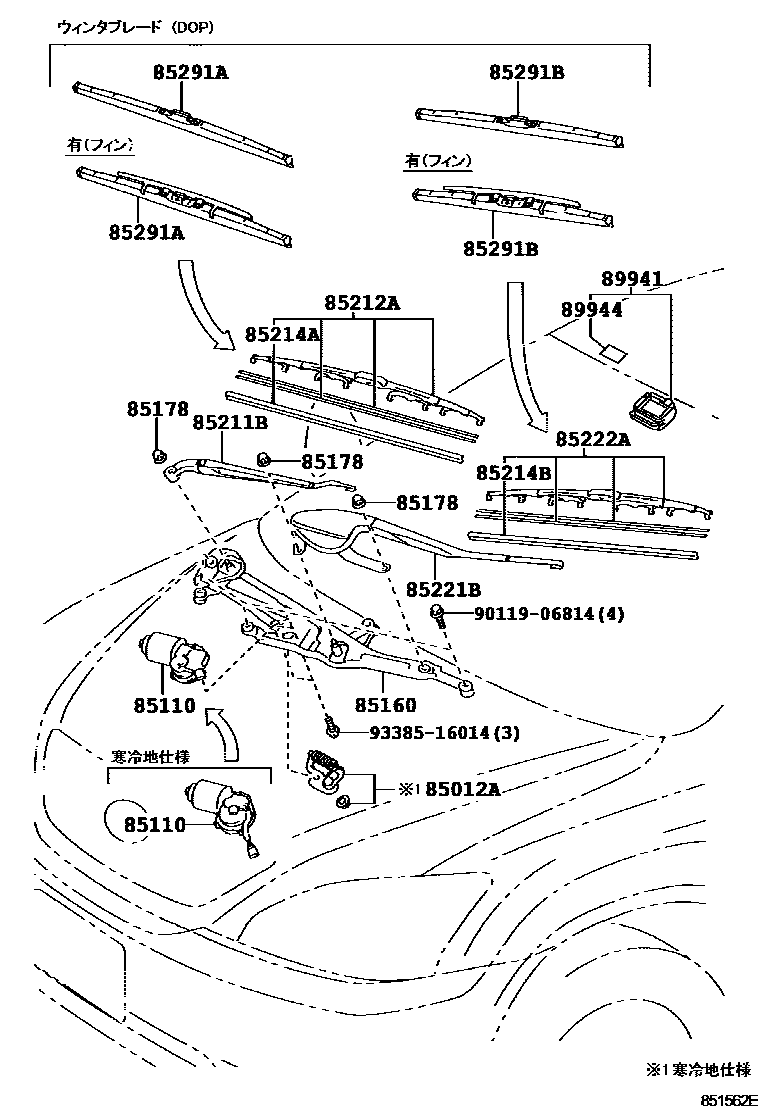

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-28010iMHU38200503-201206

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48100supersedes 85110-48090iMHU38200503

85160LINK ASSY, WINDSHIELD WIPER

main85150-48090iMHU38200503

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×3iMHU38200503

85211BARM, FRONT WIPER, RH

main85211-48070iMHU38200503

85212ABLADE, FR WIPER, RH

main85212-48080iMHU38200503

85214ARUBBER, WIPER, RH

main85214-44140iMHU38200503

85214BRUBBER, WIPER, LH

main85214-48010iMHU38200503

85221BARM, FRONT WIPER, LH

main85221-48070iMHU38200503

85222ABLADE, FR WIPER, LH

main85222-48070iMHU38200503

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

89941SENSOR, RAIN

main89941-48031iMHU38200608-200708

main89941-48033iMHU38200708-200810

main89941-48040iMHU38200503-200608

main89941-48060iMHU38200810

89944TAPE, RAIN SENSOR

main89944-50011iMHU38200503-201206

9011906814

main90119-06814

9338516014

main93385-16014

16 parts on this diagram · 1 diagram in section
