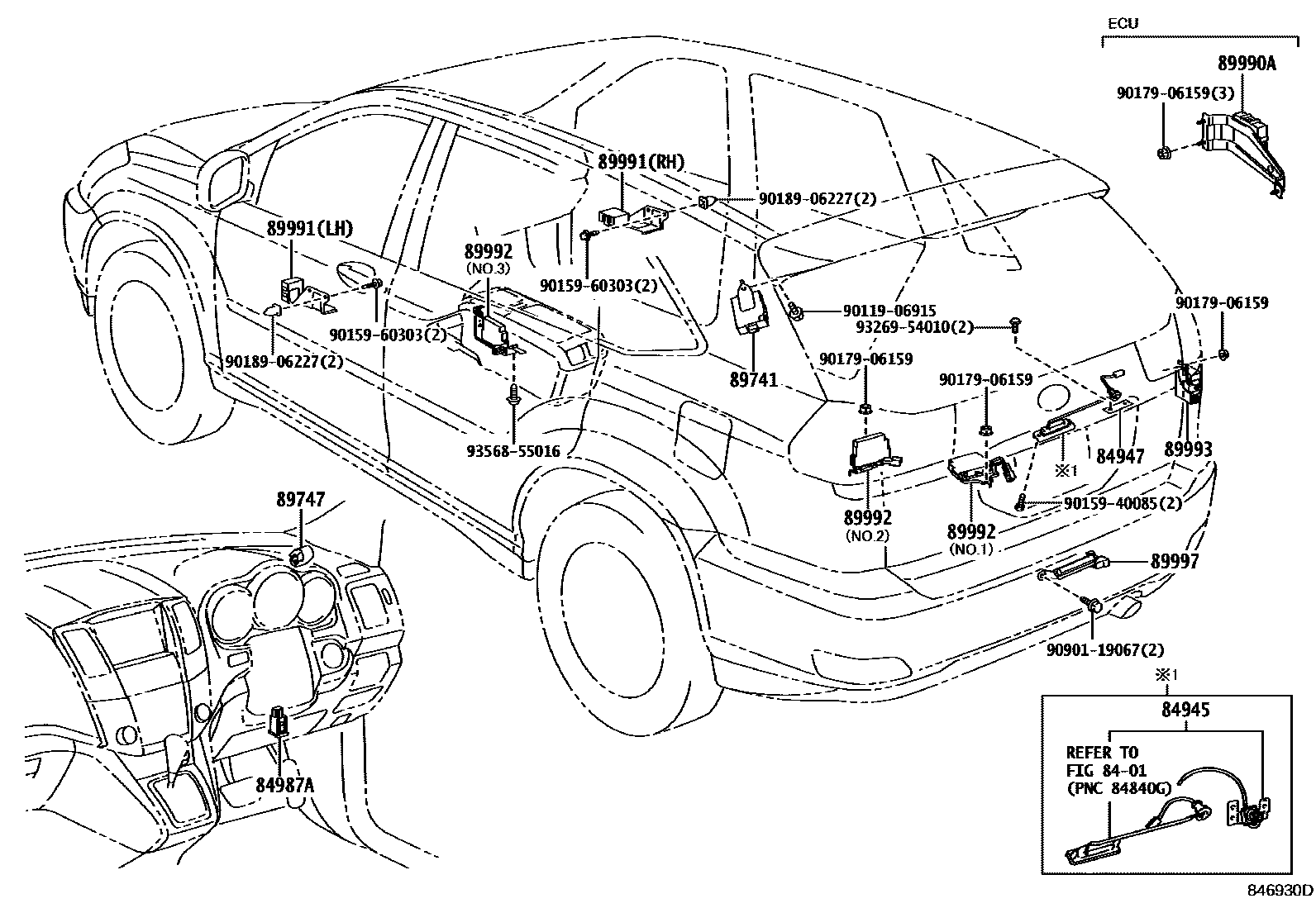

WIRELESS DOOR LOCK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84905-48010iMHU38200503-201206

84947COVER, DOOR ELECTRICAL KEY SWITCH

main84947-50010iMHU38200503-201206

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-50060iMHU38200503-201206

89741RECEIVER, DOOR CONTROL

main89740-48010iMHU38200503

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iMHU38200503-200609

main89747-52010iMHU38200610

89990ACOMPUTER ASSY, SMART KEY

main89990-48010iMHU38200503

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-48010iMHU38200503

main89991-48020iMHU38200503

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-48010iMHU38200503-201206

main89992-48020iMHU38200503-201206

main89992-48030iMHU38200503-201206

89993OSCILLATOR, LUGGAGE ELECTRICAL KEY

main89993-48010iMHU38200503

89997ANTENNA, ELECTRICAL KEY

main89997-48010iMHU38200503

9011906915

main90119-06915

9015940085

main90159-40085

9015960303

main90159-60303

9017906159

main90179-06159

9018906227

main90189-06227

9090119067

main90901-19067

9326954010

main93269-54010

9356855016

main93568-55016

19 parts on this diagram · 1 diagram in section
