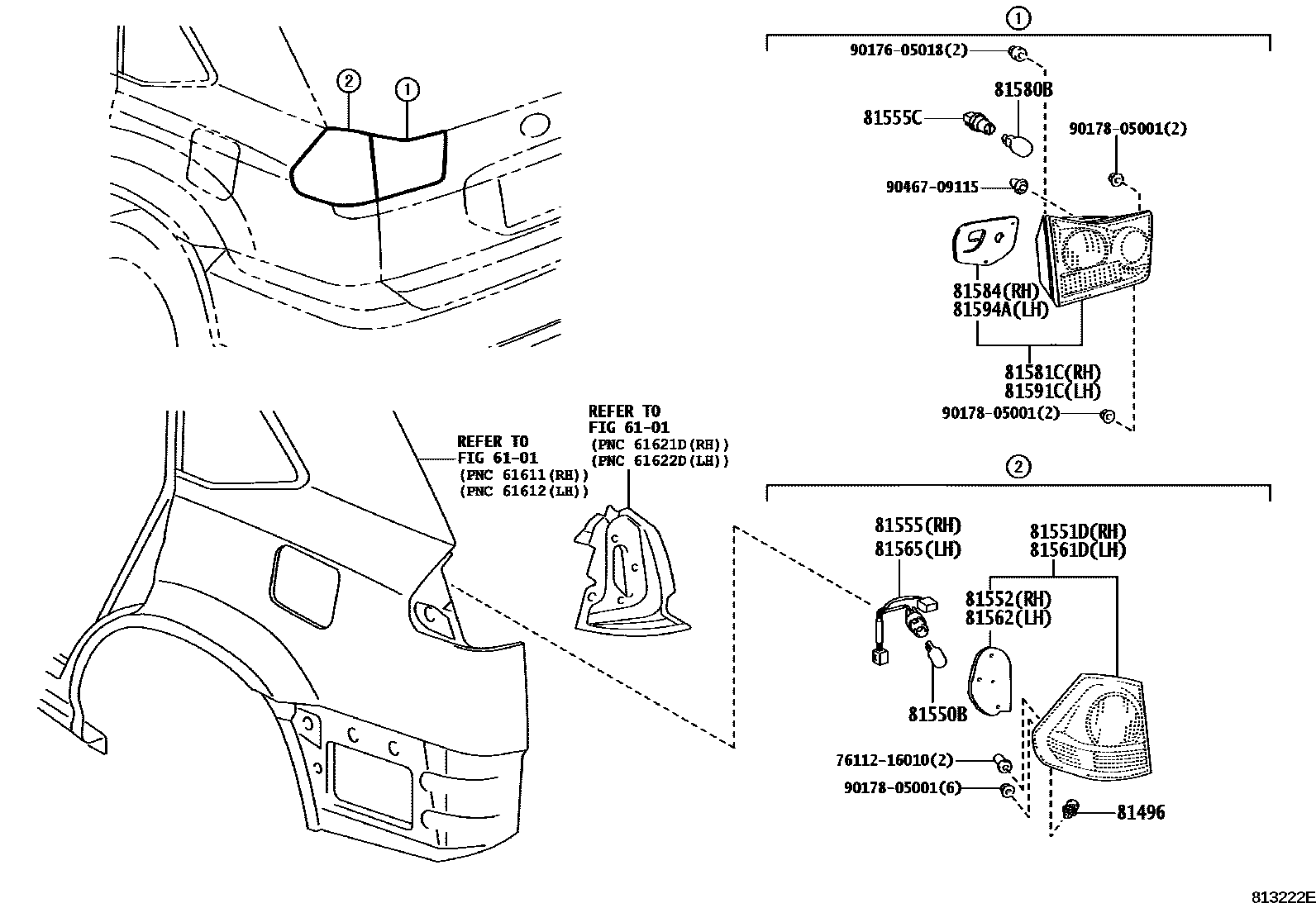

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iMHU38200503

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-15011×2iMHU38200503

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48140iMHU38200503-200610

main81551-48141iMHU38200611

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-48141iMHU38200503-201206

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-48140iMHU38200503

81555CSOCKET PLUG, NO.2

main90075-60063×2iMHU38200503

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48140iMHU38200503-200610

main81561-48141iMHU38200611

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-48141iMHU38200503-201206

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-48140iMHU38200503

81580BBULB (FOR REAR LAMP)

main90981-11059×2iMHU38200503

81581CLENS AND BODY, REAR LAMP, RH

main81581-48060iMHU38200503-200610

main81581-48061iMHU38200611

81584PACKING, REAR LAMP RH

main81584-48051iMHU38200503-201206

81591CLENS, REAR LAMP, LH

main81591-48060iMHU38200503-200610

main81591-48061iMHU38200611

81594AGASKET, REAR LAMP LH

main81594-48051iMHU38200503-201206

7611216010

main76112-16010

9017605018

main90176-05018

9017805001

main90178-05001

9046709115

main90467-09115

19 parts on this diagram · 1 diagram in section
