SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730ASOCKET PLUG(FOR SIDE TURN SIGNAL LAMP)

main90075-99012×2iMHU38200503

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-15012×2iMHU38200503

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-20220iMHU38200503-200610

main81731-20221iMHU38200611

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-20220iMHU38200503

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-20220iMHU38200503-200610

main81731-20221iMHU38200611

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-20220iMHU38200503

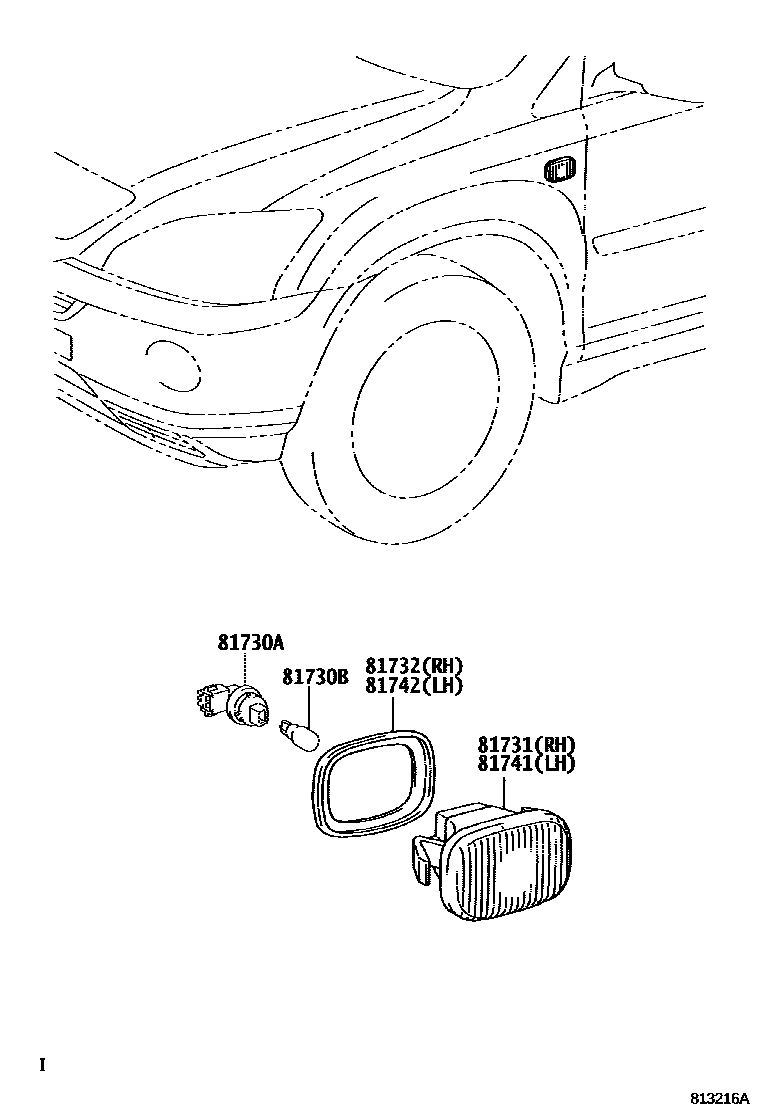

6 parts on this diagram · 1 diagram in section
