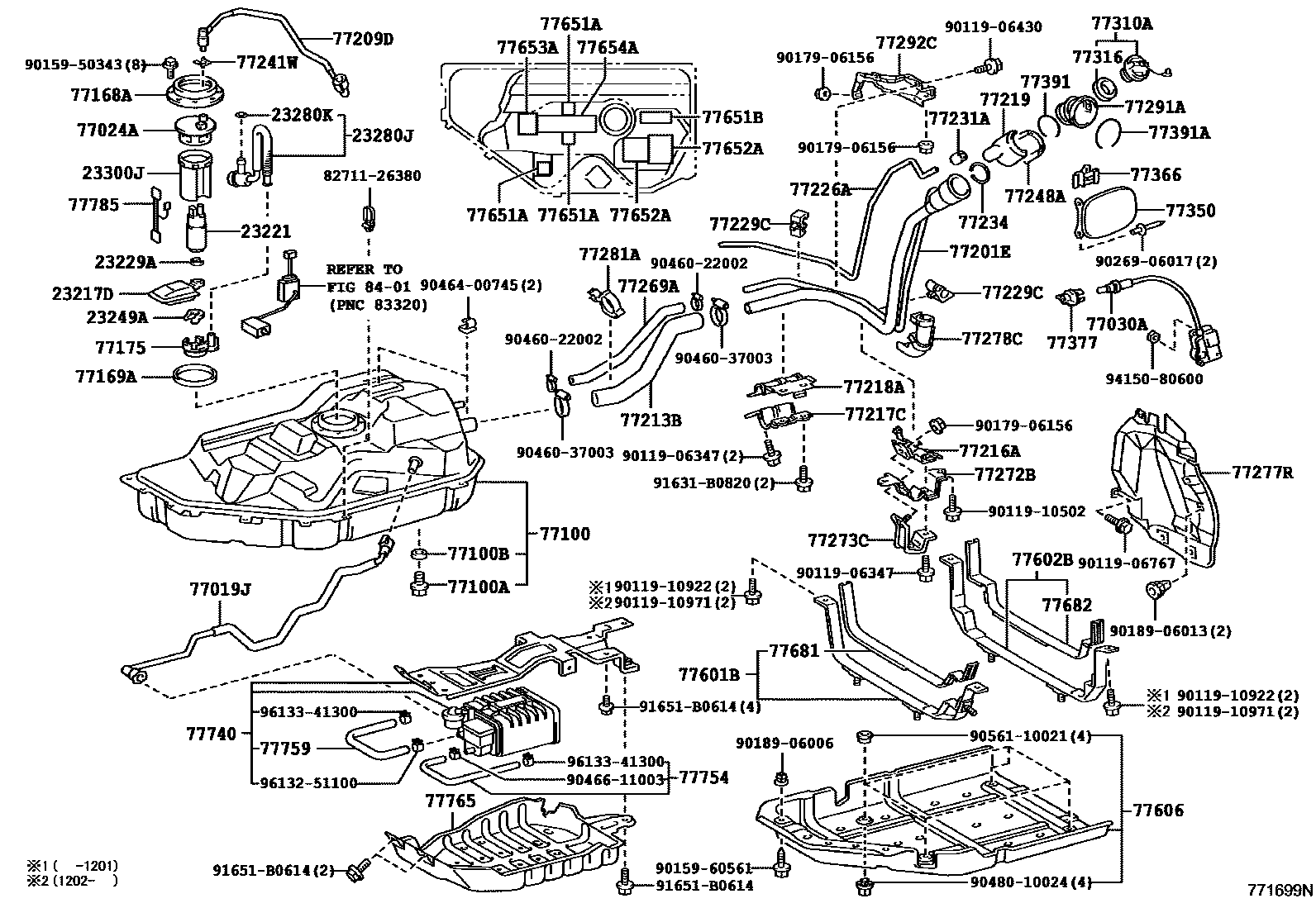

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77024APLATE SUB-ASSY, FUEL SUCTION
77030ALOCK ASSY, FUEL LID W/MOTOR
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77231ACONNECTOR, FUEL TANK BREATHER TUBE
77234SEAL, FUEL TUBE CONNECTOR
77241WCLIP, TUBE JOINT
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77269AHOSE, FUEL TANK BREATHER
77272BSUPPORT, BREATHER TUBE, NO.1
77273CSUPPORT, BREATHER TUBE, NO.2
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77292CSHIELD, FUEL TANK FILLER PIPE, NO.2
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
sub77652-33010
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77740CANISTER ASSY, CHARCOAL
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77759HOSE, CHARCOAL CANISTER
77765PROTECTOR, CHARCOAL CANISTER
77785HARNESS, FUEL PUMP
8401
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
9011906347
main90119-06347
9011906430
main90119-06430
9011906767
main90119-06767
9011910502
main90119-10502
9011910922
main90119-10922
9011910971
main90119-10971
9015950343
main90159-50343
9015960561
main90159-60561
9017906156
main90179-06156
9018906006
main90189-06006
9018906013
main90189-06013
9026906017
main90269-06017
9046022002
main90460-22002
9046037003
main90460-37003
9046400745
main90464-00745
9046611003
main90466-11003
9048010024
main90480-10024
9056110021
main90561-10021
91631B0820
main91631-B0820
91651B0614
main91651-B0614
9415080600
main94150-80600
9613251100
main96132-51100
9613341300
main96133-41300
85 parts on this diagram · 2 diagrams in section
