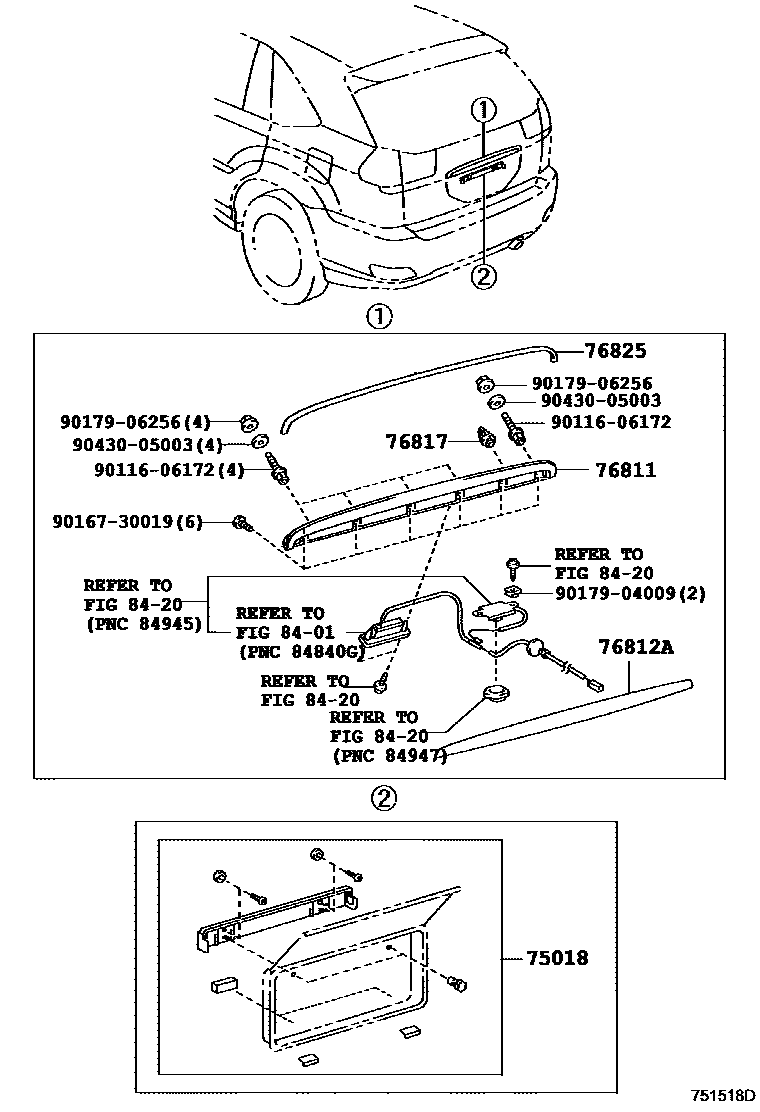

REAR MOULDING

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-48020

76811GARNISH, BACK DOOR, OUTSIDE

main76811-48100-A0iMHU38200503-200812

WHITE PEARL CS.,062

main76811-48100-A1iMHU38200812-201206

WHITE PEARL CS.,070

main76811-48100-B0iMHU38200503-200708

SILVER ME.,1C0

main76811-48100-B1iMHU38200708-201206

SILVER ME.,1F7

main76811-48100-C0iMHU38200503-201206

BLACK,202

main76811-48100-D1iMHU38200812-201008

DK. RED M.M.,3Q3

main76811-48100-D2iMHU38201008-201206

BLACKISH RED MC.,3R0

main76811-48100-E0iMHU38200503-200608

LT.BROWN M.M.,4S5

main76811-48100-E1iMHU38200503-200812

COPPER BROWN MC.,4S6

main76811-48100-G0iMHU38200608-200812

LT.OLIVE M.M.,6T1

main76811-48100-J1iMHU38200812-201008

LT.BLUE M.M.,8S7

main76811-48100-J2iMHU38201008-201206

DK.BLUE MC.,8S6

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-48010iMHU38200503-200906

main76812-48011iMHU38200906

76817CLIP, BACK DOOR OUTSIDE GARNISH

main75819-33010iMHU38200503

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-48010iMHU38200503

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9011606172

main90116-06172

9016730019

main90167-30019

9017904009

main90179-04009

9017906256

main90179-06256

9043005003

main90430-05003

12 parts on this diagram · 1 diagram in section
