EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

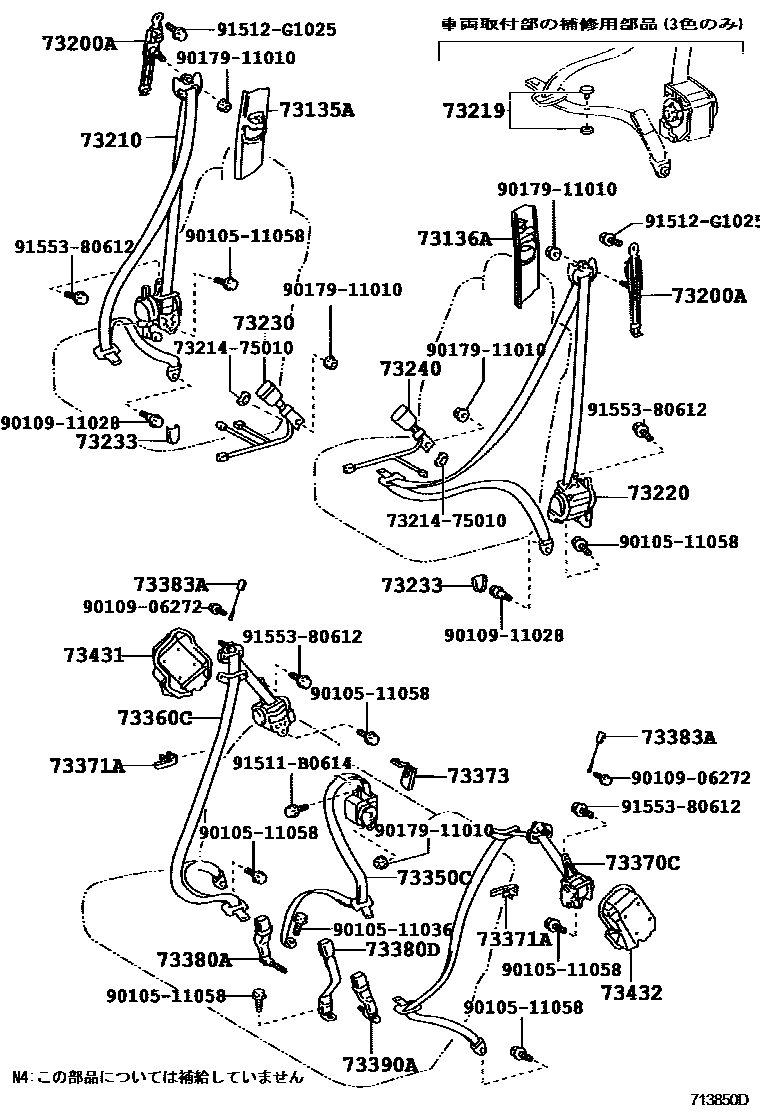

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-33010-A0i200503-201206
IVORY,TRIM0#
main73023-33010-B0i200503-201206
LT.GRAY,TRIM2#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-33010-A0i200503-201206
IVORY,TRIM0#
main73024-33010-B0i200503-201206
LT.GRAY,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-51020×2i200503
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-48070-C0i200503-200811
BLACK,TRIM2#
main73210-48071-C0i200812-201007
BLACK,TRIM2#
main73210-48072-C1i201008-201206
BLACK,TRIM2#
main73210-48070-A0i200503-200811
main73210-48070-B0i200801-200811
main73210-48071-A0i200812-201007
main73210-48072-A0i201008-201206
73219STOPPER, TONGUE PLATE
main73219-33010i200503
main73219-33020i200503
main73219-33030i200503
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-48050-C0i200503-200811
BLACK,TRIM2#
main73220-48051-C0i200812-201007
BLACK,TRIM2#
main73220-48052-C1i201008-201206
BLACK,TRIM2#
main73220-48050-A0i200503-200811
main73220-48050-B0i200801-200811
main73220-48051-A0i200812-201007
main73220-48052-A0i201008-201206
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-48041-A0i200503-201206
main73230-48041-B0i200801-200811
main73230-48041-C0supersedes 73230-48091-C0i200503-201206
73233COVER, LAP BELT OUTER ANCHOR
main73233-33010-C0×2i200503-201206
BLACK,TRIM2#
main73233-33010-A1×2i200503-201206
main73233-33010-P0×2i200801-200811
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-48110-A0i200503-201206
sub73230-48130
main73230-48110-B0i200801-200811
sub73230-48130
main73230-48110-C0supersedes 73230-48050-C0i200503-201206
sub73230-48130
73350CBELT ASSY, REAR SEAT, OUTER CENTER
main73350-48020-A0i200503-200811
IVORY,TRIM0#
main73350-48020-C0i200503-200811
BLACK,TRIM2#
main73350-48021-A0i200812-201008
IVORY,TRIM0#
main73350-48021-C0i200812-201008
BLACK,TRIM2#
main73350-48160-A0i201008-201206
IVORY,TRIM0#
main73350-48160-C1i201008-201206
BLACK,TRIM2#
main73350-48020-B0i200801-200811
73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH
main73360-48040-A0i200503-200811
IVORY,TRIM0#
main73360-48040-C0i200503-200811
BLACK,TRIM2#
main73360-48041-A0i200812-201008
IVORY,TRIM0#
main73360-48041-C0i200812-201008
BLACK,TRIM2#
main73360-48120-A0i201008-201206
IVORY,TRIM0#
main73360-48120-C1i201008-201206
BLACK,TRIM2#
main73360-48040-B0i200801-200811
73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH
main73370-48040-A0i200503-200811
IVORY,TRIM0#
main73370-48040-C0i200503-200811
BLACK,TRIM2#
main73370-48041-A0i200812-201008
IVORY,TRIM0#
main73370-48041-C0i200812-201008
BLACK,TRIM2#
main73370-48120-A0i201008-201206
IVORY,TRIM0#
main73370-48120-C1i201008-201206
BLACK,TRIM2#
main73370-48040-B0i200801-200811
73371AHANGER REAR SEAT SHOULDER BELT
main73371-44020-A1×2i200503-201206
IVORY,TRIM0#
main73371-44020-C0×2i200503-201206
BLACK,TRIM2#
main73371-44020-B8×2i200801-200811
73373COVER, REAR SEAT SHOULDER BELT
main73373-48011i200503
73380ABELT ASSY, REAR SEAT, INNER
main73380-48030-A0i200503-201206
IVORY,TRIM0#
main73380-48030-C0i200503-201206
BLACK,TRIM2#
main73380-48030-B0i200801-200811
73380DBELT ASSY, REAR SEAT, INNER
main73380-48050-A0i200503-201206
IVORY,TRIM0#
main73380-48050-C0i200503-201008
BLACK,TRIM2#
main73380-48050-C1i201008-201206
BLACK,TRIM2#
main73380-48050-B0i200801-200811
73383AHOOK, RR SEAT BELT
main73383-33010×2i200503-201206
73390ABELT ASSY, REAR SEAT, INNER
main73480-48030-A0i200503-201206
IVORY,TRIM0#
main73480-48030-C0i200503-201206
BLACK,TRIM2#
main73480-48030-B0i200801-200811
73431COVER, REAR SEAT BELT RETRACTOR, RH
main73431-48010i200503
73432COVER, REAR SEAT BELT RETRACTOR, LH
main73432-48010i200503
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010511036
main90105-11036
9010511058
main90105-11058
9010906272
main90109-06272
9010911028
main90109-11028
9017911010
main90179-11010
91511B0614
main91511-B0614
91512G1025
main91512-G1025
9155380612
main91553-80612

29 parts on this diagram · 1 diagram in section
