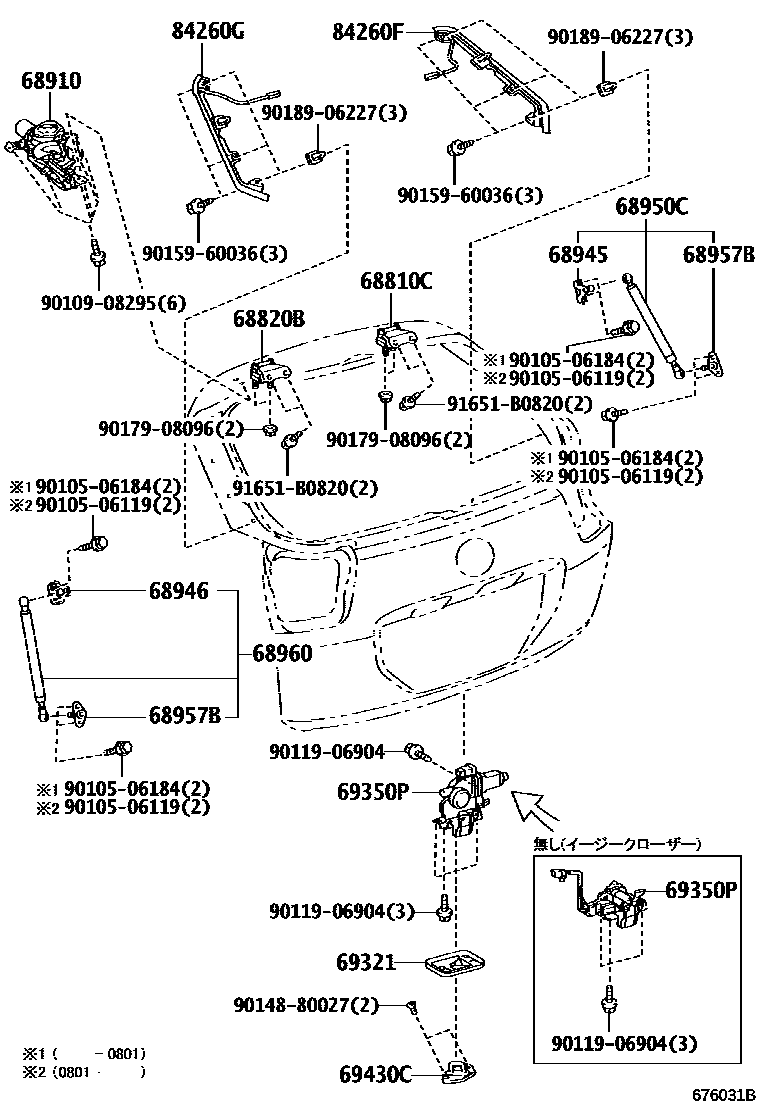

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68910UNIT ASSY, POWER BACK DOOR
main68910-48010
main68910-48011
main68910-48012
main68910-48013
main68910-48014
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68957BBRACKET, BACK DOOR STAY, LOWER
68960STAY ASSY, BACK DOOR, LH
69321COVER, BACK DOOR LOCK
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
84260FSENSOR ASSY, POWER BACK DOOR, RH
84260GSENSOR ASSY, POWER BACK DOOR, LH
9010506119
main90105-06119
9010506184
main90105-06184
9010908295
main90109-08295
9011906904
main90119-06904
9014880027
main90148-80027
9015960036
main90159-60036
9017908096
main90179-08096
9018906227
main90189-06227
91651B0820
main91651-B0820
22 parts on this diagram · 1 diagram in section
