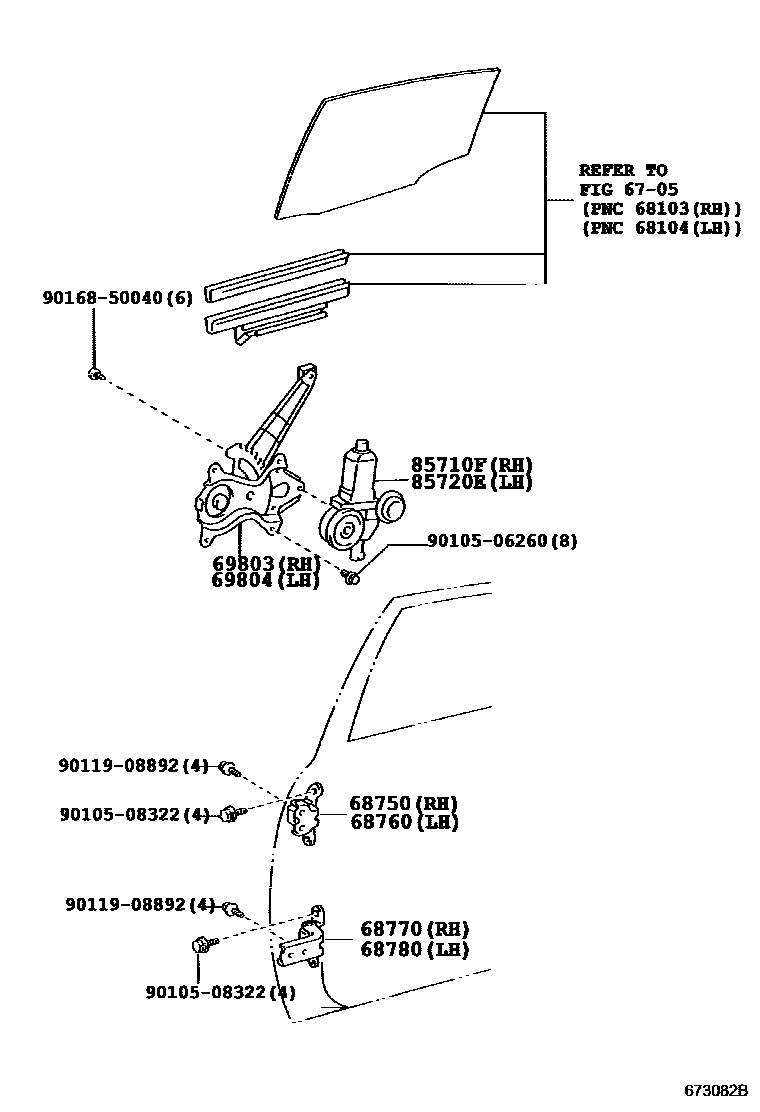

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-35040iMHU38200503-200609

main68750-35041iMHU38200610-201206

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-35040iMHU38200503-200609

main68760-35041iMHU38200610-201206

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-60030iMHU38200503-200609

main68770-60031iMHU38200610-201206

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-60030iMHU38200503-200609

main68780-60031iMHU38200610-201206

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69804-33030iMHU38200503

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69803-33030iMHU38200503

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-58010iMHU38200503

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-58010iMHU38200503

9010506260

main90105-06260

9010508322

main90105-08322

9011908892

main90119-08892

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
