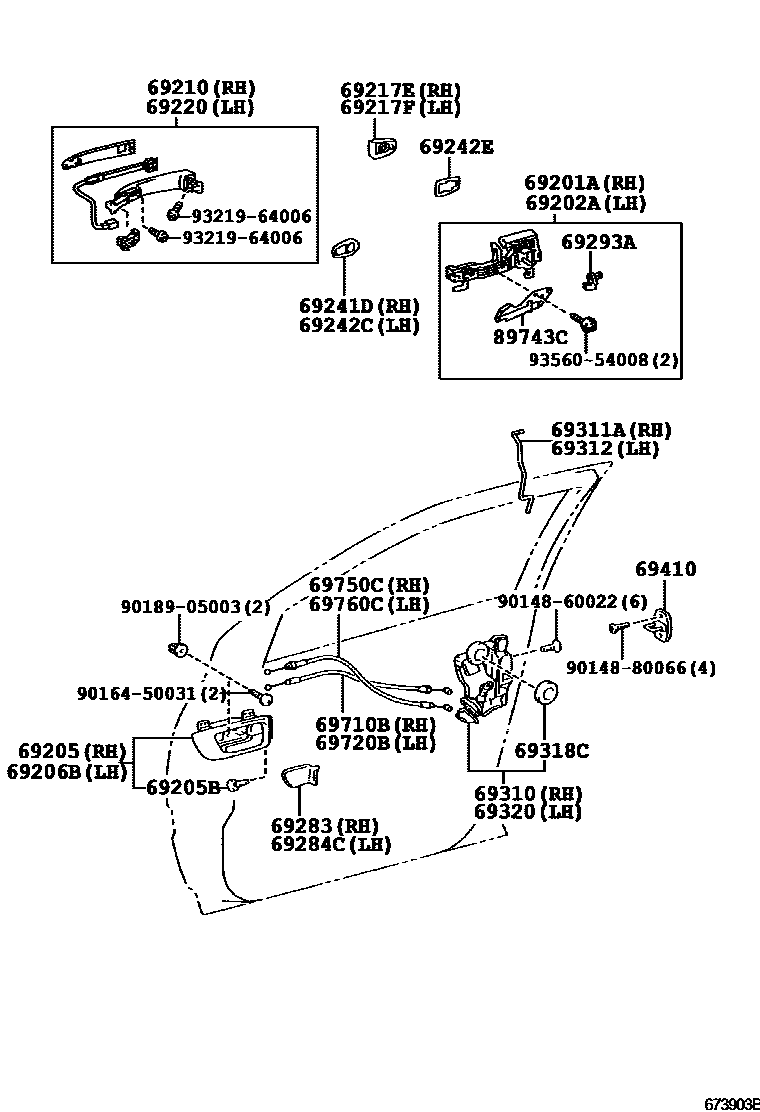

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30030i200503

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30030i200503

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-48040-A0i200503-201206

IVORY,TRIM0#

main69205-48040-C0i200503-201206

BLACK,TRIM2#

main69205-48040-B0i200801-200811

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2i200503

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-48050-A0i200503-201206

IVORY,TRIM0#

main69206-48050-C0i200503-201206

BLACK,TRIM2#

main69206-48050-B0i200801-200811

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30290-A1i200708-200812

WHITE PEARL CS.,062

main69210-30290-A8i200812-201206

WHITE PEARL CS.,070

main69210-30290-B2i200708-201206

SILVER ME.,1F7

main69210-30290-C0i200708-201206

BLACK,202

main69210-30290-D0i201008-201206

BLACKISH RED MC.,3R0

main69210-30290-D1i200812-201008

DK. RED M.M.,3Q3

main69210-30290-E2i200708-200812

COPPER BROWN MC.,4S6

main69210-30290-G3i200708-200812

LT.OLIVE M.M.,6T1

main69210-30290-J2i201008-201206

DK.BLUE MC.,8S6

main69210-30290-J3i200812-201008

LT.BLUE ME.,8S7

main69210-44030-A1i200503-200708

WHITE PEARL CS.,062

main69210-44030-B1i200503-200708

SILVER ME.,1C0

main69210-44030-C1i200503-200708

BLACK,202

main69210-44030-E1i200503-200608

LT.BROWN M.M.,4S5

main69210-44030-E2i200503-200708

COPPER BROWN MC.,4S6

main69210-44030-G3i200608-200708

LT.OLIVE M.M.,6T1

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-28010-A4i200503-200708

WHITE PEARL CS.,062

main69217-28010-B2i200503-200708

SILVER ME.,1C0

main69217-28010-C1i200503-200708

BLACK,202

main69217-28010-E4i200503-200608

LT.BROWN M.M.,4S5

main69217-28010-E5i200503-200708

COPPER BROWN MC.,4S6

main69217-28010-G2i200608-200708

LT.OLIVE M.M.,6T1

main69250-30010-A1i200708-200812

WHITE PEARL CS.,062

main69250-30010-A7i200812-201206

WHITE PEARL CS.,070

main69250-30010-B2i200708-201206

SILVER ME.,1F7

main69250-30010-C0i200708-201206

BLACK,202

main69250-30010-D0i201008-201206

BLACKISH RED MC.,3R0

main69250-30010-D1i200812-201008

DK. RED M.M.,3Q3

main69250-30010-E5i200708-200812

COPPER BROWN MC.,4S6

main69250-30010-G4i200708-200812

LT.OLIVE M.M.,6T1

main69250-30010-J2i201008-201206

DK.BLUE MC.,8S6

main69250-30010-J3i200812-201008

LT.BLUE ME.,8S7

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-60020-A3i200503-200708

WHITE PEARL CS.,062

main69217-60020-B5i200503-200708

SILVER ME.,1C0

main69217-60020-C0i200503-200708

BLACK,202

main69217-60020-E4i200503-200608

LT.BROWN M.M.,4S5

main69217-60020-E5i200503-200708

COPPER BROWN MC.,4S6

main69217-60020-G2i200608-200708

LT.OLIVE M.M.,6T1

main69250-30020-A1i200708-200812

WHITE PEARL CS.,062

main69250-30020-A6i200812-201206

WHITE PEARL CS.,070

main69250-30020-B2i200708-201206

SILVER ME.,1F7

main69250-30020-C0i200708-201206

BLACK,202

main69250-30020-D0i201008-201206

BLACKISH RED MC.,3R0

main69250-30020-D1i200812-201008

DK. RED M.M.,3Q3

main69250-30020-E5i200708-200812

COPPER BROWN MC.,4S6

main69250-30020-G4i200708-200812

LT.OLIVE M.M.,6T1

main69250-30020-J2i201008-201206

DK.BLUE MC.,8S6

main69250-30020-J3i200812-201008

LT.BLUE ME.,8S7

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-30290-A1i200708-200812

WHITE PEARL CS.,062

main69210-30290-A8i200812-201206

WHITE PEARL CS.,070

main69210-30290-B2i200708-201206

SILVER ME.,1F7

main69210-30290-C0i200708-201206

BLACK,202

main69210-30290-D0i201008-201206

BLACKISH RED MC.,3R0

main69210-30290-D1i200812-201008

DK. RED M.M.,3Q3

main69210-30290-E2i200708-200812

COPPER BROWN MC.,4S6

main69210-30290-G3i200708-200812

LT.OLIVE M.M.,6T1

main69210-30290-J2i201008-201206

DK.BLUE MC.,8S6

main69210-30290-J3i200812-201008

LT.BLUE ME.,8S7

main69210-44030-A1i200503-200708

WHITE PEARL CS.,062

main69210-44030-B1i200503-200708

SILVER ME.,1C0

main69210-44030-C1i200503-200708

BLACK,202

main69210-44030-E1i200503-200608

LT.BROWN M.M.,4S5

main69210-44030-E2i200503-200708

COPPER BROWN MC.,4S6

main69210-44030-G3i200608-200708

LT.OLIVE M.M.,6T1

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-28060i200503

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69241-28060i200503

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-60030×2i200503

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-33020-A0i200503-201206

IVORY,TRIM0#

main69283-33020-C0i200503-201206

BLACK,TRIM2#

main69283-33020-B2i200801-200811

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-33020-A0i200503-201206

IVORY,TRIM0#

main69284-33020-C0i200503-201206

BLACK,TRIM2#

main69284-33020-B2i200801-200811

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030i200503

main69293-12040i200503

69310LOCK ASSY, FRONT DOOR, RH

main69030-3A130i200503

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-48040i200503

69312ROD, FRONT DOOR LOCK OPEN, LH

main69311-48040i200503

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i200503

69320LOCK ASSY, FRONT DOOR, LH

main69040-30A00i200503

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010×2i200503

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-48040i200503

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-48040i200503

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-48050i200503

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-48050i200503

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-30130i200503-201206

main89743-68010i200503-201206

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

9321964006

main93219-64006

9356054008

main93560-54008

32 parts on this diagram · 1 diagram in section
