MAT & CARPET

58441ECOVER, BATTERY SERVICE HOLE

main58441-48010-A0iMHU38200503-201206

IVORY,TRIM0#

main58441-48010-C0iMHU38200503-201206

BLACK,TRIM2#

58510DCARPET ASSY, FLOOR, FRONT

main58510-48140-A0iMHU38200503-201206

IVORY,TRIM0#

main58510-48140-C0iMHU38200503-201206

BLACK,TRIM2#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-48050-A0iMHU38200503-201206

IVORY,TRIM0#

main58533-48050-C0iMHU38200503-201206

BLACK,TRIM2#

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-06020-C0iMHU38200606-201206

BLACK

main90467-07150iMHU38200503-200606

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-48040-A0iMHU38200503-201206

IVORY,TRIM0#

main58534-48040-C0iMHU38200503-201206

BLACK,TRIM2#

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-07049-C0iMHU38200503-201206

BLACK

63655DCOVER, AIR INTAKE

main63655-48010-A0iMHU38200503-201206

IVORY,TRIM0#

main63655-48010-C0iMHU38200503-201206

BLACK,TRIM2#

63656DCOVER, AIR INTAKE, CENTER

main63656-48010-A0iMHU38200503-201206

IVORY,TRIM0#

main63656-48010-C0iMHU38200503-201206

BLACK,TRIM2#

71741ACOVER, AIR HOLE

main71741-48010-A0iMHU38200503-201206

IVORY,TRIM0#

main71741-48010-C0iMHU38200503-201206

BLACK,TRIM2#

9015960036

main90159-60036

9046710162

main90467-10162

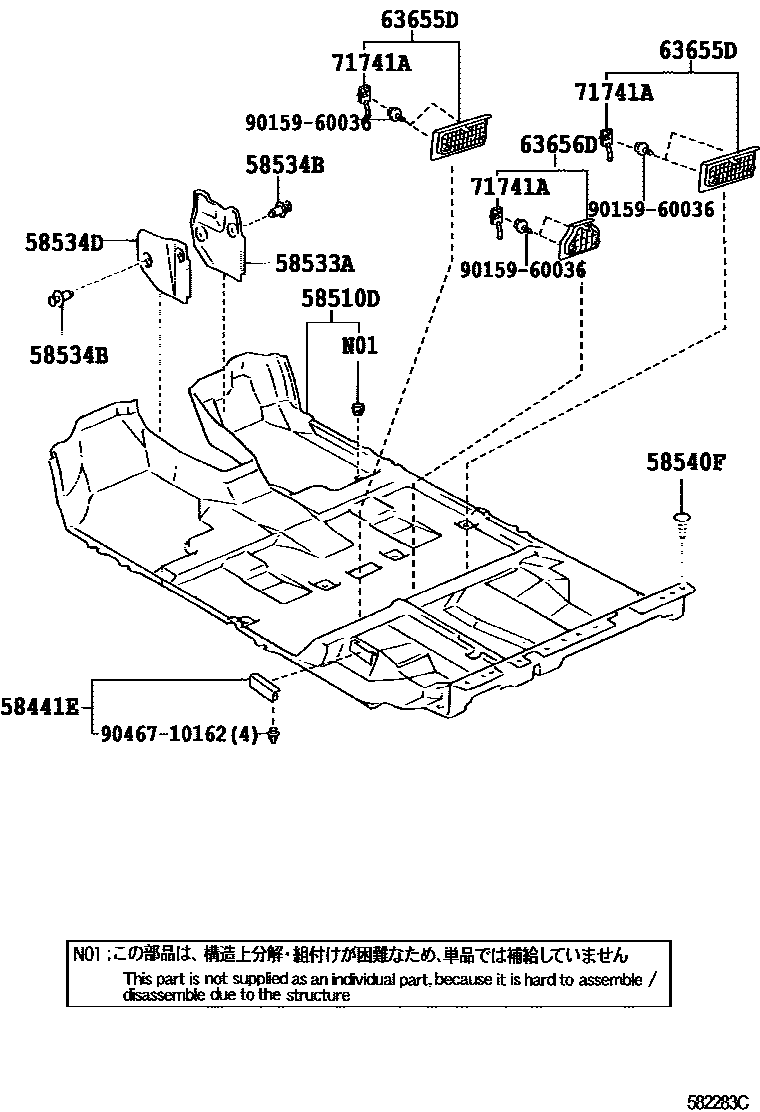

11 parts on this diagram · 1 diagram in section
