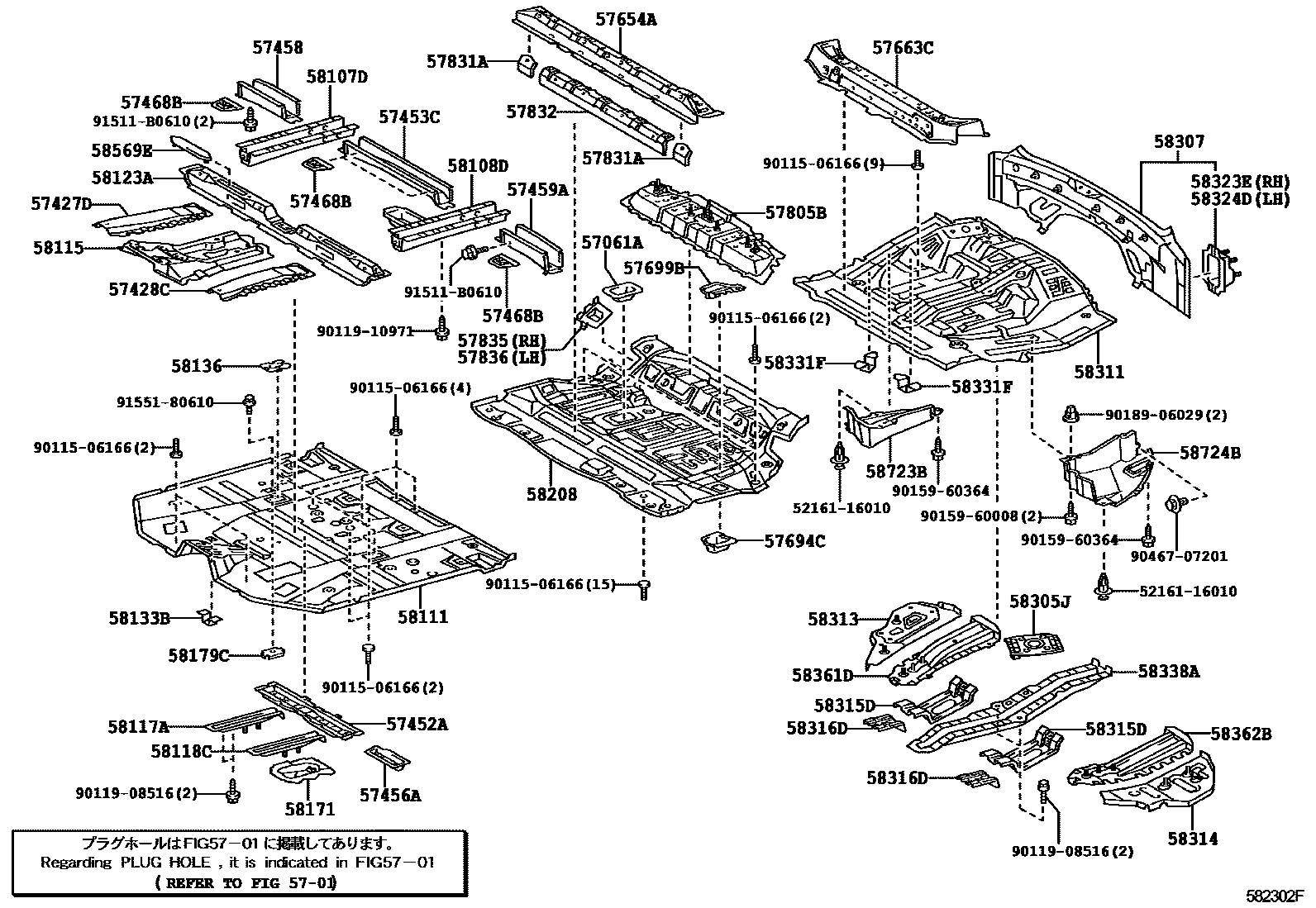

FLOOR PAN & LOWER BACK PANEL

5701

57061ABRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT

main57063-48010i200503

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-48020i200503

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57428-48020i200503

57452AMEMBER, FRONT FLOOR CROSS, NO.2

main57452-48032i201008

main57452-48040i200503-200708

sub90115-06166

sub94223-80800

main57452-48041i200709-200812

sub90115-06166

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-48011i201008

main57453-48020i200503-201007

57456AGUSSET, FRONT FLOOR CROSSMEMBER, LH

main57456-48010i200503

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57458-48012i200503

57459AMEMBER, FRONT FLOOR CROSS, NO.2

main57459-48015i200503

57468BBRACKET, FRONT SEAT, REAR

main57468-48010×4i200503

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57654-48020i200503

57663CMEMBER, REAR FLOOR CROSS, CENTER

main57663-48030i200503

57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH

main57693-48020i200503

57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3

main57699-48020i200503

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-48040i200503-200708

main57805-48050i200708

57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1

main57831-48010×2i200503

57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2

main57832-48030i200503

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-48020i200503

57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2

main57836-48020i200503

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-48020i200503

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-48020i200503

58111PAN, FRONT FLOOR

main58111-48916i200503-201003

main58111-48923i201003

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main57501-48010i200503

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-48030i200503

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-48030i200503

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-48010i200503

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-22040i200503

58136COVER, FRONT FLOOR HOLE

main58136-48030×2i200503

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-48030i200503

58179CBRACKET, CLAMP FLOOR

main58179-48010i200503

58208PAN, CENTER FLOOR

main58211-48906i200503-200607

main58211-48910i200608

58305JBRACKET, SPARE WHEEL CARRIER

main58305-48010i200503-200708

main58305-48011i200708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-48060i200503-201206

58311PAN, REAR FLOOR

main58311-48905i200503-201206

58313PANEL, REAR FLOOR SIDE, RH

main58313-48030i200503

58314PANEL, REAR FLOOR SIDE, LH

main58314-48020i200503

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-48011i200503-200703

main58315-48020i200703

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-48010i200503-200703

main58316-48020i200703

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-48040i200503

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-48030i200503

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010×2i200708

main58331-10011×2i200503-200708

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58309-48010i200609

main58339-48010i200503-200608

58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

main58361-48010i200503

58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH

main58362-48010i200503

58569ECOVER, FRONT FLOOR CAUTION PLATE

main58569-48010-A0i200503-201206

IVORY,TRIM0#

sub58569-48011

main58569-48010-C0i200503-201206

BLACK,TRIM2#

sub58569-48011

main58569-48010-B1i200801-200811

sub58569-48011

58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1

main58723-48010i200503

58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2

main58724-48010i200503

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9011506166

main90115-06166

9011908516

main90119-08516

9011910971

main90119-10971

9015960008

main90159-60008

9015960364

main90159-60364

9018906029

main90189-06029

9046707201

main90467-07201

91511B0610

main91511-B0610

9155180610

main91551-80610

57 parts on this diagram · 2 diagrams in section
