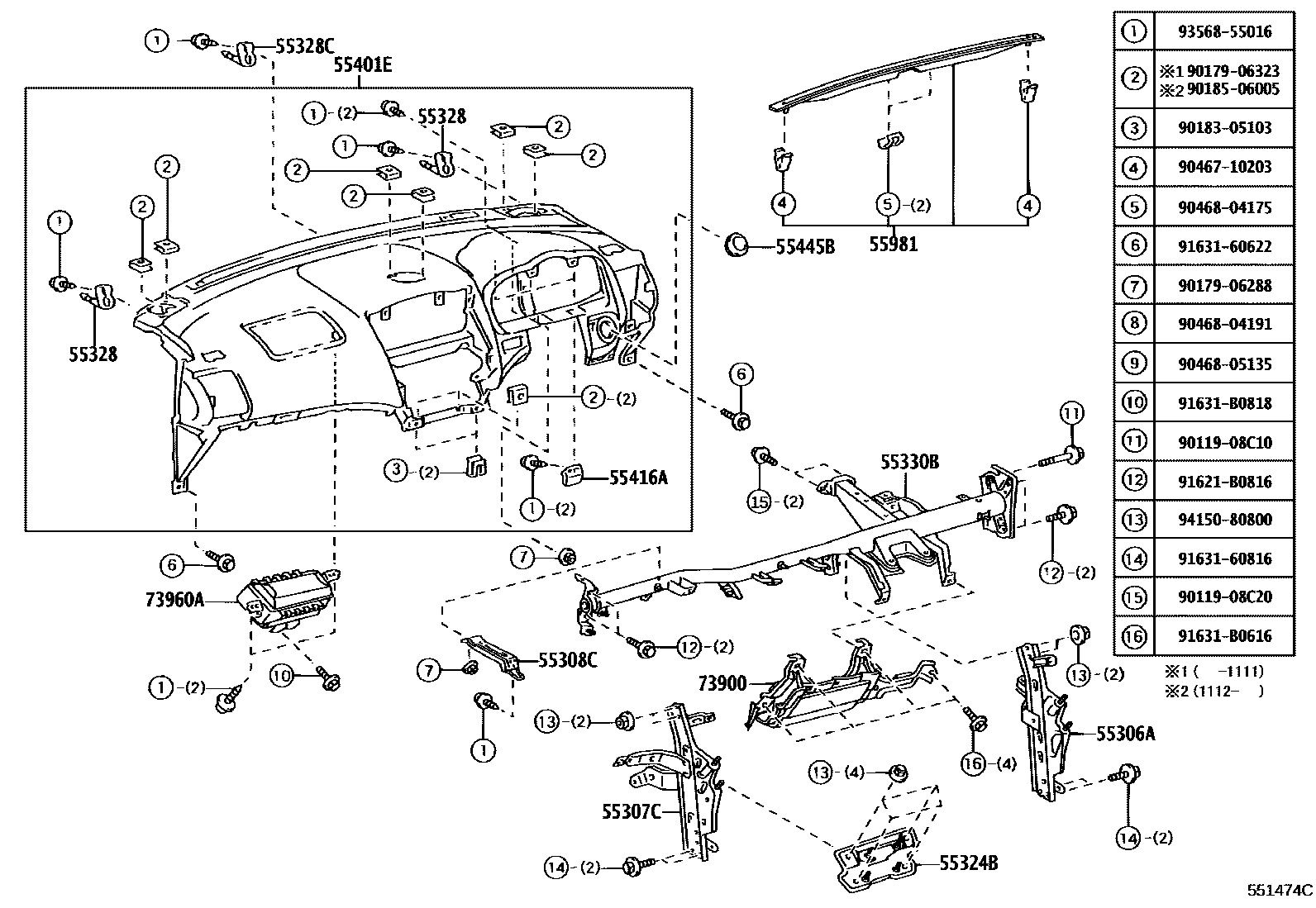

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-48050iMHU38200503

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48050iMHU38200503

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-48050iMHU38200503

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-48030iMHU38200503

55328PIN, INSTRUMENT PANEL, NO.1

main55328-48040×2iMHU38200503-201106

main55328-48041×2iMHU38201107

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-48040iMHU38200503-201106

main55328-48041iMHU38201107

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48120iMHU38200503-201206

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-48070-C0iMHU38200503-201206

BLACK,TRIM2#

main55401-48080-B0iMHU38200503-200608

main55401-48080-C0iMHU38200608-201206

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iMHU38200503

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-48010-B0iMHU38200503-201206

SADDLE GRAY,TRIM0#

main55445-48010-C0iMHU38200503-201206

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-48020-B0iMHU38200503-201206

SADDLE GRAY,TRIM0#

main55981-48020-C0iMHU38200503-201206

BLACK,TRIM2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-48010-A0iMHU38200503-201206

IVORY,TRIM0#

main73900-48010-C0iMHU38200503-201206

BLACK,TRIM2#

main73900-48010-B0iMHU38200801-200811

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-48010iMHU38200503

9011908C10

main90119-08C10

9011908C20

main90119-08C20

9017906288

main90179-06288

9017906323

main90179-06323

9018305103

main90183-05103

9018506005

main90185-06005

9046710203

main90467-10203

9046804175

main90468-04175

9046804191

main90468-04191

9046805135

main90468-05135

91621B0816

main91621-B0816

9163160622

main91631-60622

9163160816

main91631-60816

91631B0616

main91631-B0616

91631B0818

main91631-B0818

9356855016

main93568-55016

9415080800

main94150-80800

30 parts on this diagram · 4 diagrams in section
