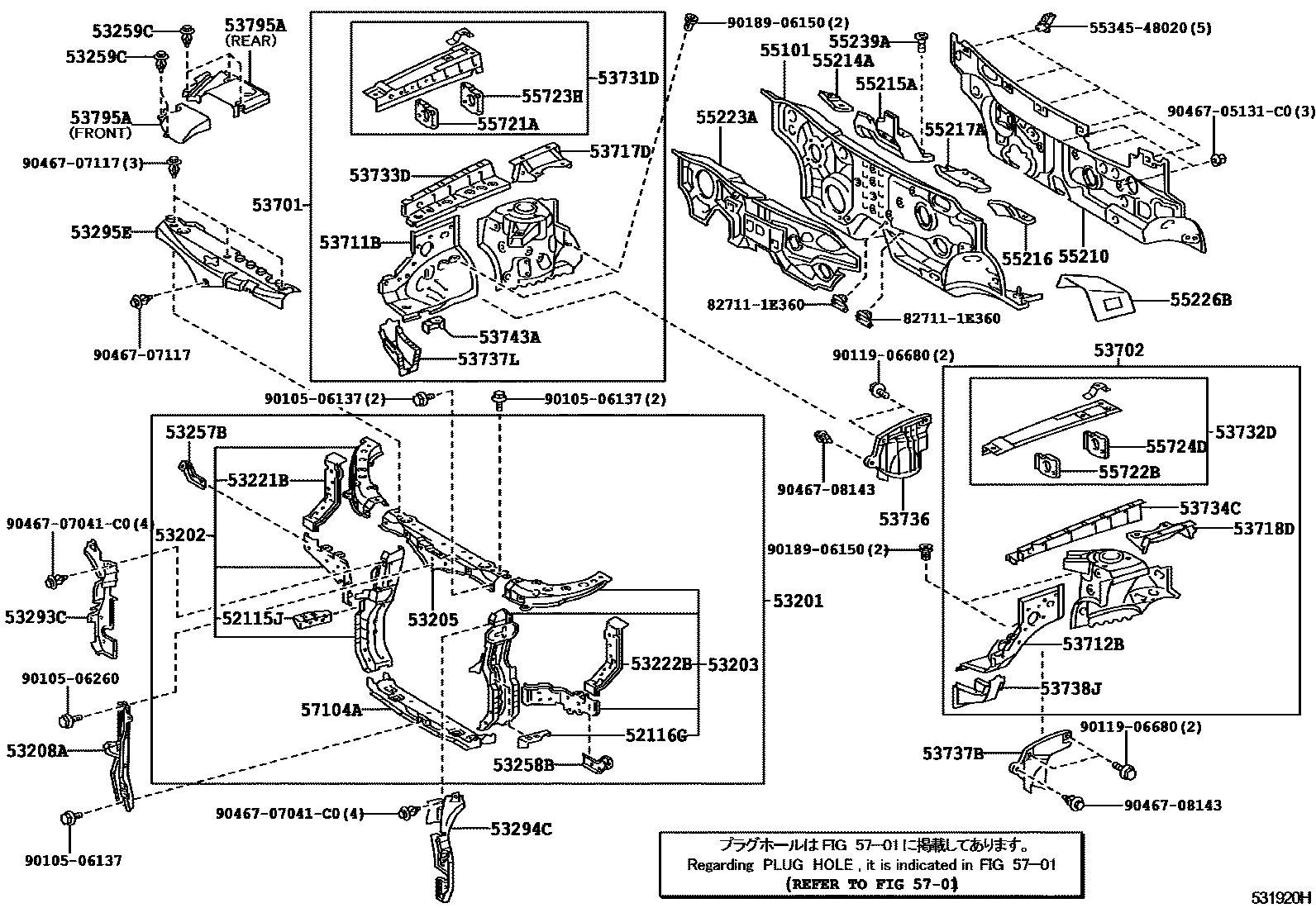

FRONT FENDER APRON & DASH PANEL
52115JSUPPORT, FRONT BUMPER SIDE, RH
52116GSUPPORT, FRONT BUMPER SIDE, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53221BBRACE, RADIATOR SUPPORT APRON, RH
53222BBRACE, RADIATOR SUPPORT APRON, LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53737BSEAL, FRONT FENDER APRON, LH
53737LGUSSET, FRONT FENDER APRON WIND GUIDE, RH
53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55216PAD, DASH PANEL INSULATOR, NO.4
55217ARETAINER, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
55226BSHEET, DASH PANEL INSULATOR, NO.5
55239APLATE, DASH PANEL INSULATOR, NO.3
55721ABRACE, COWL TOP TO COWL, INNER NO.1
55722BBRACE, COWL TOP TO COWL, INNER NO.2
55723HREINFORCEMENT, COWL TOP SIDE, RH
55724DREINFORCEMENT, COWL TOP SIDE, LH
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
5534548020GARNISH, GLOVE COMPARTMENT, UPPER
main55345-48020
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9010506137
main90105-06137
9010506260
main90105-06260
9011906680
main90119-06680
9018906150
main90189-06150
9046705131C0
main90467-05131C0
9046707041C0
main90467-07041C0
9046707117
main90467-07117
9046708143
main90467-08143
56 parts on this diagram · 1 diagram in section
