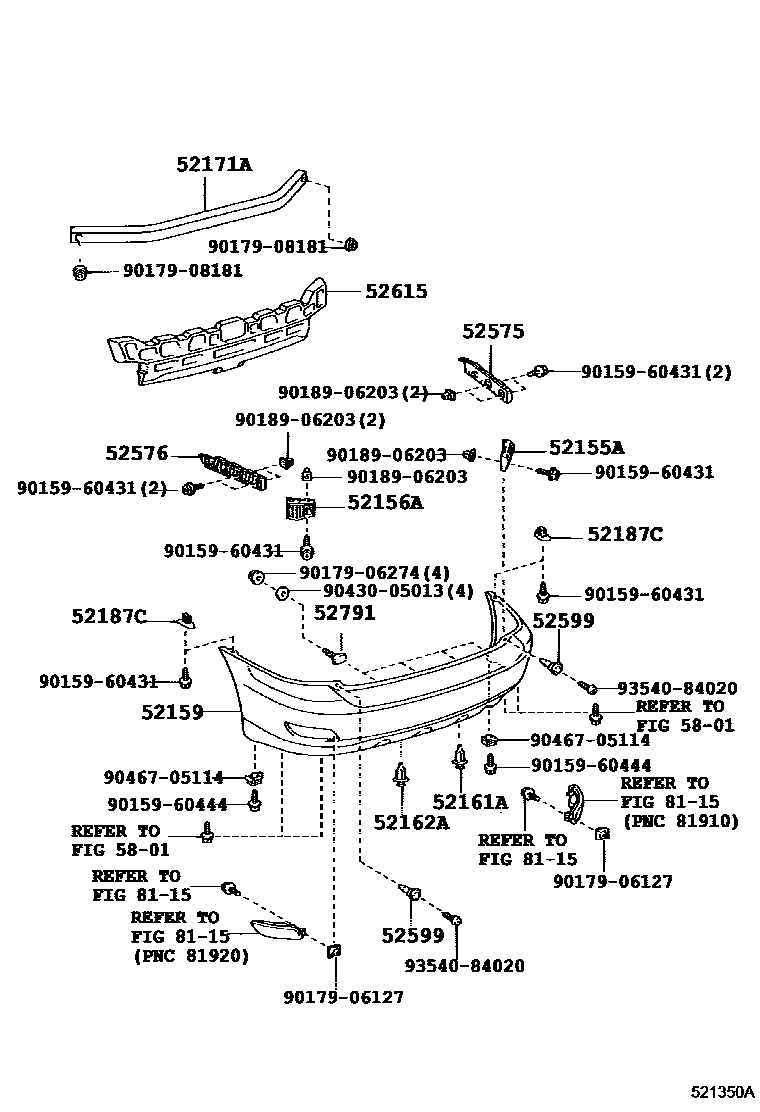

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-48011iMHU38200503

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-48011iMHU38200503

52159COVER, REAR BUMPER

main52159-48050-A0iMHU38200503-200812

WHITE PEARL CS.,062

sub52159-48903

main52159-48050-A3iMHU38200812-201206

WHITE PEARL CS.,070

sub52159-48903

main52159-48050-B0iMHU38200503-200708

SILVER ME.,1C0

sub52159-48903

main52159-48050-B3iMHU38200708-201206

SILVER ME.,1F7

sub52159-48903

main52159-48050-C0iMHU38200503-201206

BLACK,202

sub52159-48903

main52159-48050-D2iMHU38200812-201008

DK. RED M.M.,3Q3

sub52159-48903

main52159-48050-D3iMHU38201008-201206

BLACKISH RED MC.,3R0

sub52159-48903

main52159-48050-E1iMHU38200503-200608

LT.BROWN M.M.,4S5

sub52159-48903

main52159-48050-E2iMHU38200503-200812

COPPER BROWN MC.,4S6

sub52159-48903

main52159-48050-G0iMHU38200608-200812

LT.OLIVE M.M.,6T1

sub52159-48903

main52159-48050-J3iMHU38200812-201008

LT.BLUE M.M.,8S7

sub52159-48903

main52159-48050-J4iMHU38201008-201206

DK.BLUE MC.,8S6

sub52159-48903

52161APIECE, REAR BUMPER, RH

main52161-16010iMHU38200503

52162APIECE, REAR BUMPER, LH

main52161-16010iMHU38200503

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-48100iMHU38200503-201206

52187CBRACKET, REAR BUMPER SIDE, NO.2

main52187-48010×2iMHU38200503

52575RETAINER, REAR BUMPER SIDE, RH

main52575-48020iMHU38200503

52576RETAINER, REAR BUMPER SIDE, LH

main52576-48020iMHU38200503

52599STOPPER, REAR BUMPER, UPPER

main52599-48031×2iMHU38200503

52615ABSORBER, REAR BUMPER ENERGY

main52615-48080iMHU38200503

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-33010×4iMHU38200503

5801

8115

9015960431

main90159-60431

9015960444

main90159-60444

9017906127

main90179-06127

9017906274

main90179-06274

9017908181

main90179-08181

9018906203

main90189-06203

9043005013

main90430-05013

9046705114

main90467-05114

9354084020

main93540-84020

23 parts on this diagram · 1 diagram in section
