SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-48020iMHU38200503-201102

main51900-48021iMHU38201103-201106

main51900-48022iMHU38201107

51938HCOVER, SPARE WHEEL CARRIER HINGE, LWR

51939DCOVER, SPARE WHEEL CARRIER LOCK

51942AHANDLE, SPARE WHEEL CARRIER BOLT

main51942-28010iMHU38200901

main51942-48010iMHU38200503-200812

9017906274

main90179-06274

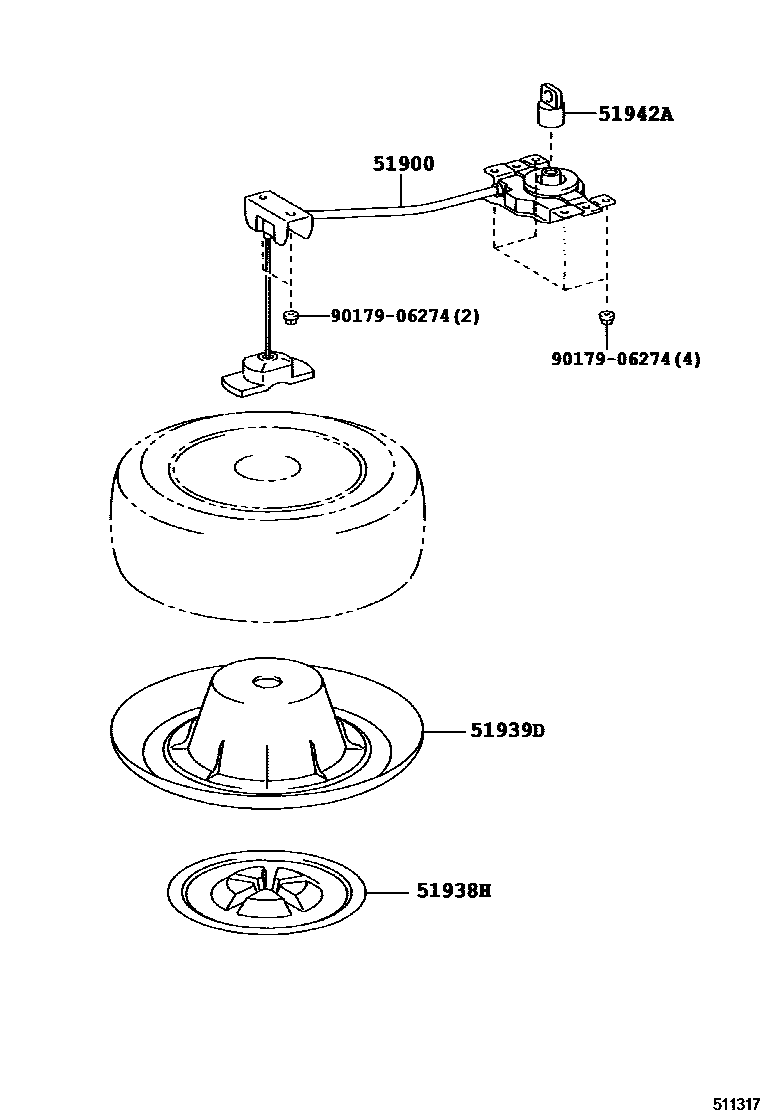

5 parts on this diagram · 1 diagram in section
