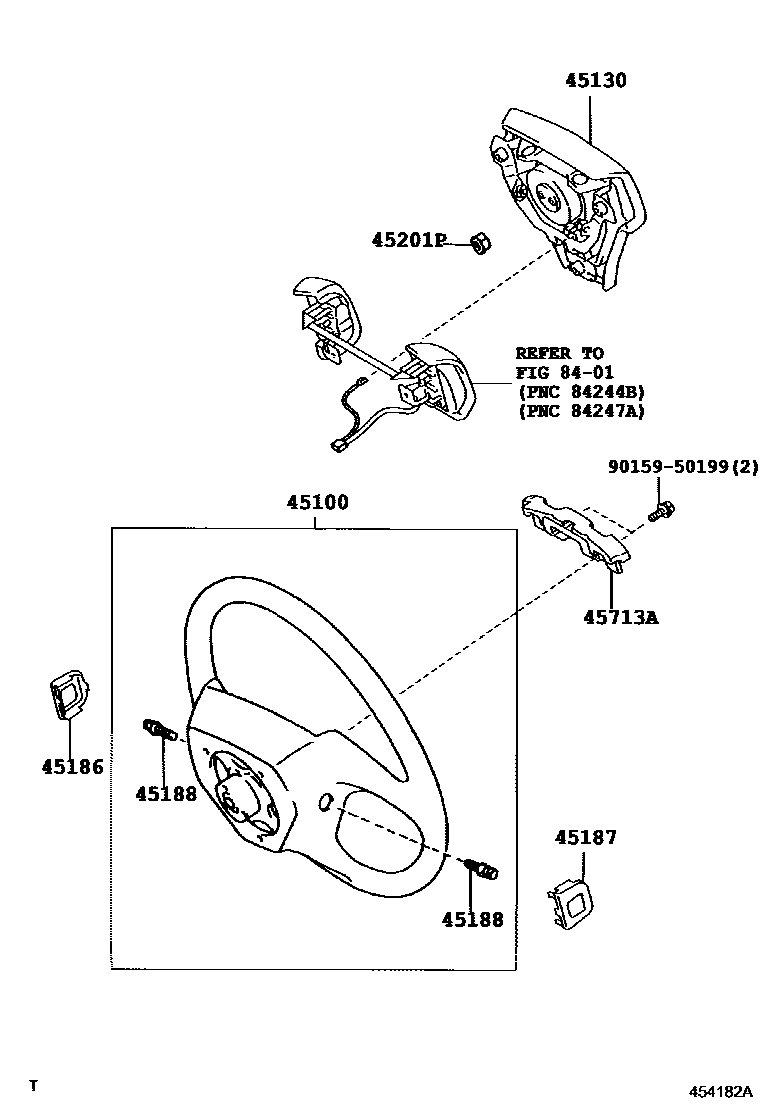

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48380-B0iMHU38200503-201206

45130BUTTON ASSY, HORN

main45130-48160-B0iMHU38200503-201206

SADDLE GRAY,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-48020-B1iMHU38200503-201206

SADDLE GRAY,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-48020-B1iMHU38200503-201206

SADDLE GRAY,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iMHU38200503

45201PNUT, STEERING WHEEL SET

main90179-12071iMHU38200503

45713ADAMPER, STEERING SHAKE

main45713-48060iMHU38200503

8401

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
