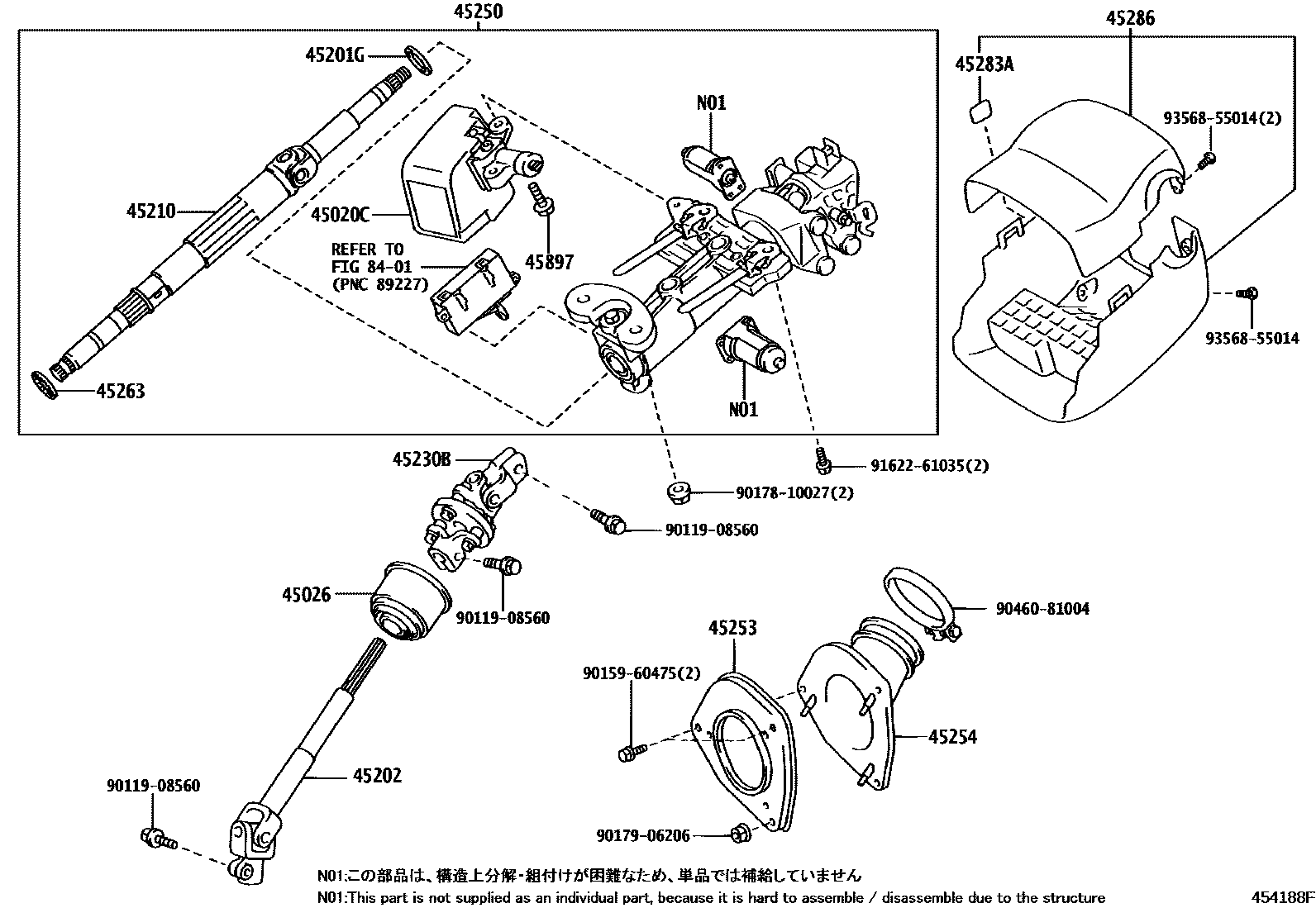

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A10iMHU38200503-201206

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-48050iMHU38200503

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main45820-50010iMHU38200503-201011

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-48070iMHU38200503

45210SHAFT ASSY, STEERING MAIN

main45210-48030iMHU38200503

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-48050iMHU38200503

45250COLUMN ASSY, STEERING

main45250-48090iMHU38200503-201011

sub89227-48020

sub93219-15010

45253COVER, STEERING COLUMN HOLE

main45253-48030iMHU38200503

45254SHIELD, STEERING COLUMN HOLE

main45254-48030iMHU38200503

45263RING, STEERING COLUMN, NO.1

main45263-30010iMHU38200503-201011

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iMHU38200503-200810

45286COVER, STEERING COLUMN

main45286-48903-B0iMHU38200503-201206

SADDLE GRAY,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2iMHU38200503

8401

9011908560

main90119-08560

9015960475

main90159-60475

9017810027

main90178-10027

9017906206

main90179-06206

9046081004

main90460-81004

9162261035

main91622-61035

9356855014

main93568-55014

21 parts on this diagram · 2 diagrams in section
