IGNITION COIL & SPARK PLUG / GLOW PLUG

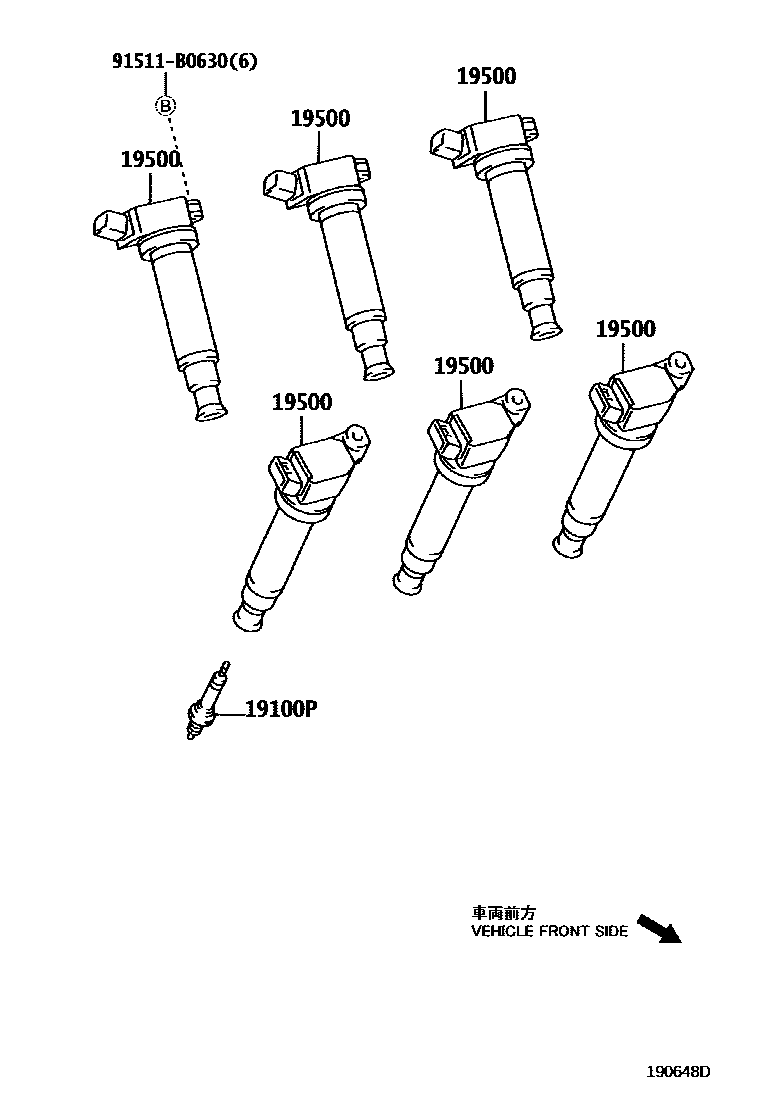

Parts diagram

19100PPLUG, SPARK

main90919-01210×6i200503

main90919-01211×6i200503

19500COIL ASSY, IGNITION

main90919-02246×6i200503

91511B0630

main91511-B0630

3 parts on this diagram · 1 diagram in section
