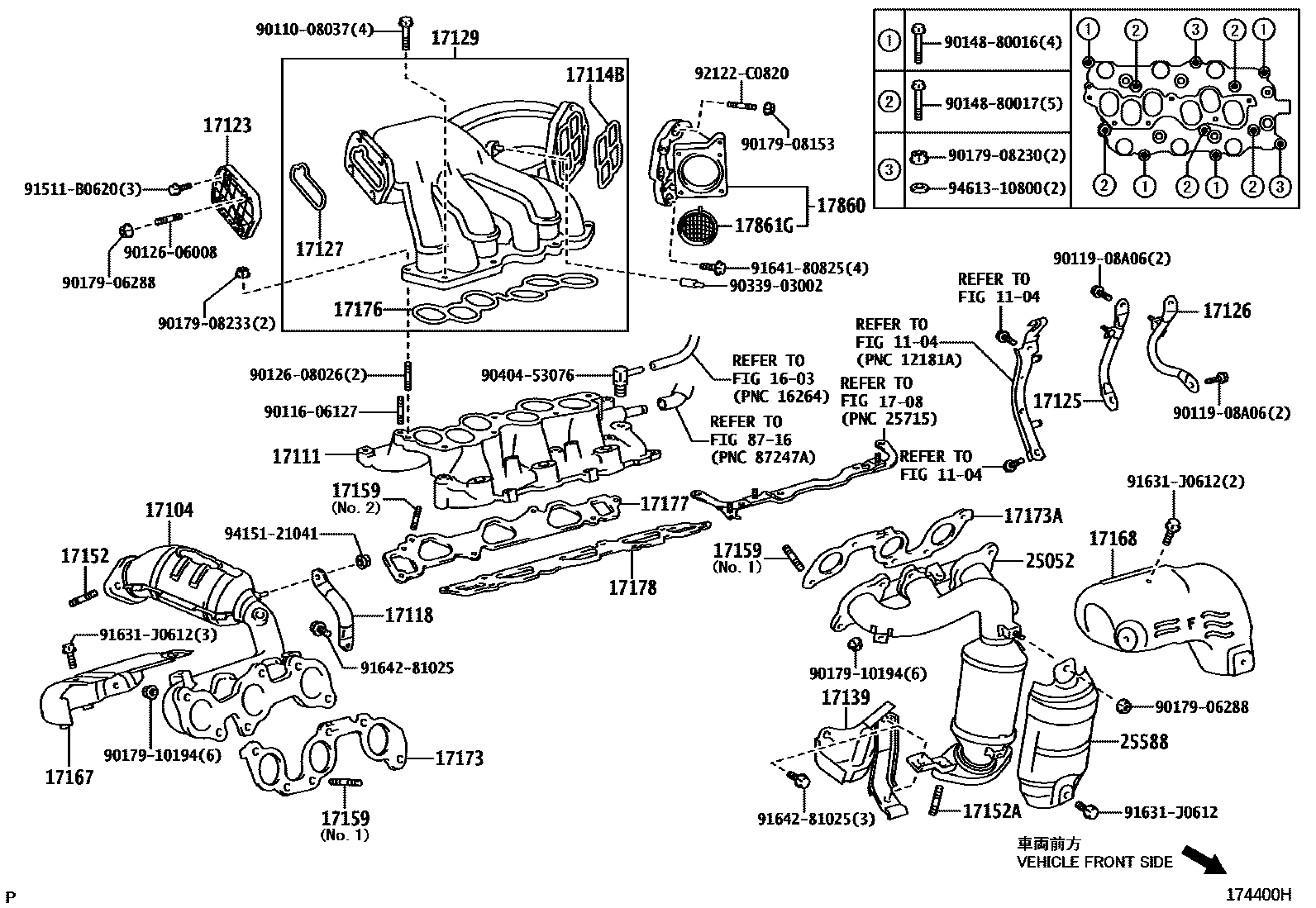

MANIFOLD
1104
1603
1708
17111MANIFOLD, INTAKE
17114BGASKET, INTAKE FLANGE
17118STAY, MANIFOLD
17123COVER, SURGE TANK
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17139STAY, MANIFOLD, NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17152ABOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17860CONNECTOR ASSY, INTAKE AIR
17861GGASKET, INTAKE AIR CONNECTOR
25588INSULATOR, MANIFOLD CONVERTER, NO.3
8716
9011008037
main90110-08037
9011606127
main90116-06127
9011908A06
main90119-08A06
9012606008
main90126-06008
9012608026
main90126-08026
9014880016
main90148-80016
9014880017
main90148-80017
9017906288
main90179-06288
9017908153
main90179-08153
9017908230
main90179-08230
9017908233
main90179-08233
9017910194
main90179-10194
9033903002
main90339-03002
9040453076
main90404-53076
91511B0620
main91511-B0620
91631J0612
main91631-J0612
9164180825
main91641-80825
9164281025
main91642-81025
92122C0820
main92122-C0820
9415121041
main94151-21041
9461310800
main94613-10800
49 parts on this diagram · 1 diagram in section
