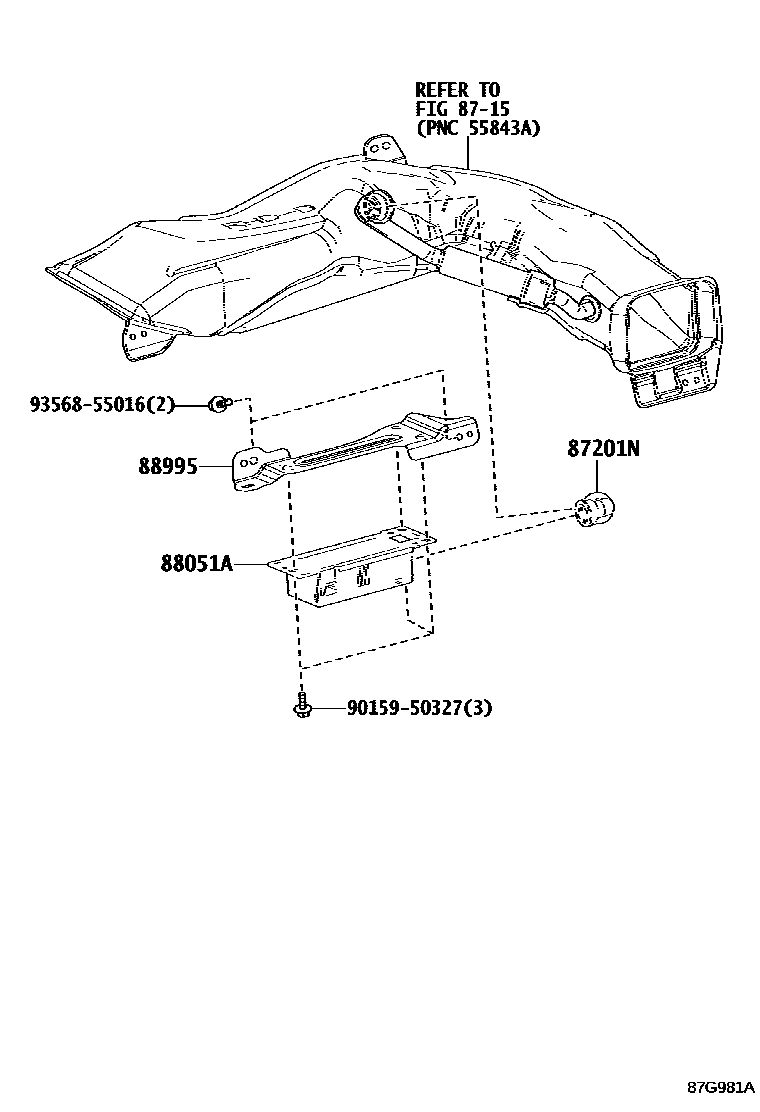

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-48060iGYL26201712-201908

88051AGENERATOR SUB-ASSY,ION

main88051-28060iGYL26201712-201908

88995BRACKET,ION GENERATOR, NO.1

main88995-48030iGYL26201712-201908

9015950327

main90159-50327

9356855016

main93568-55016

6 parts on this diagram · 1 diagram in section
