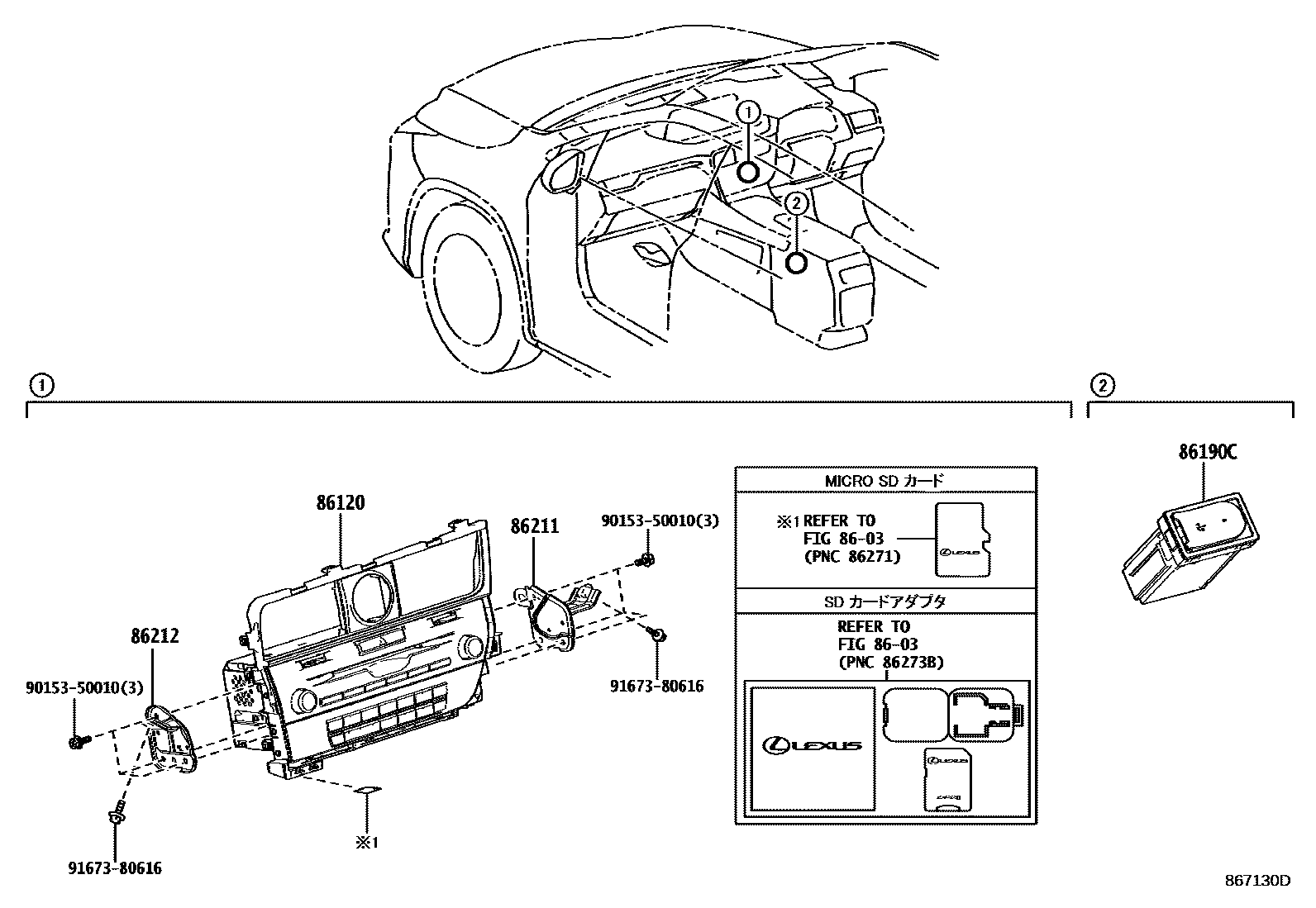

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1���� 0004 1���� 0005 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-48X10supersedes 86120-48X00iGYL26201908-202007

main86120-4D700supersedes 86120-4D690iGYL26202007-202209

main86804-48E40supersedes 86804-48E30iGYL26201712-201908

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24030iGYL26201908

main86190-78010iGYL26201712-201908

86211BRACKET, RADIO, NO.1

main86211-48160iGYL26201712-201908

main86211-48250iGYL26201908

86212BRACKET, RADIO, NO.2

main86212-48160iGYL26201712-201908

main86212-48240iGYL26201908

9015350010

main90153-50010

9167380616

main91673-80616

7 parts on this diagram · 5 diagrams in section
