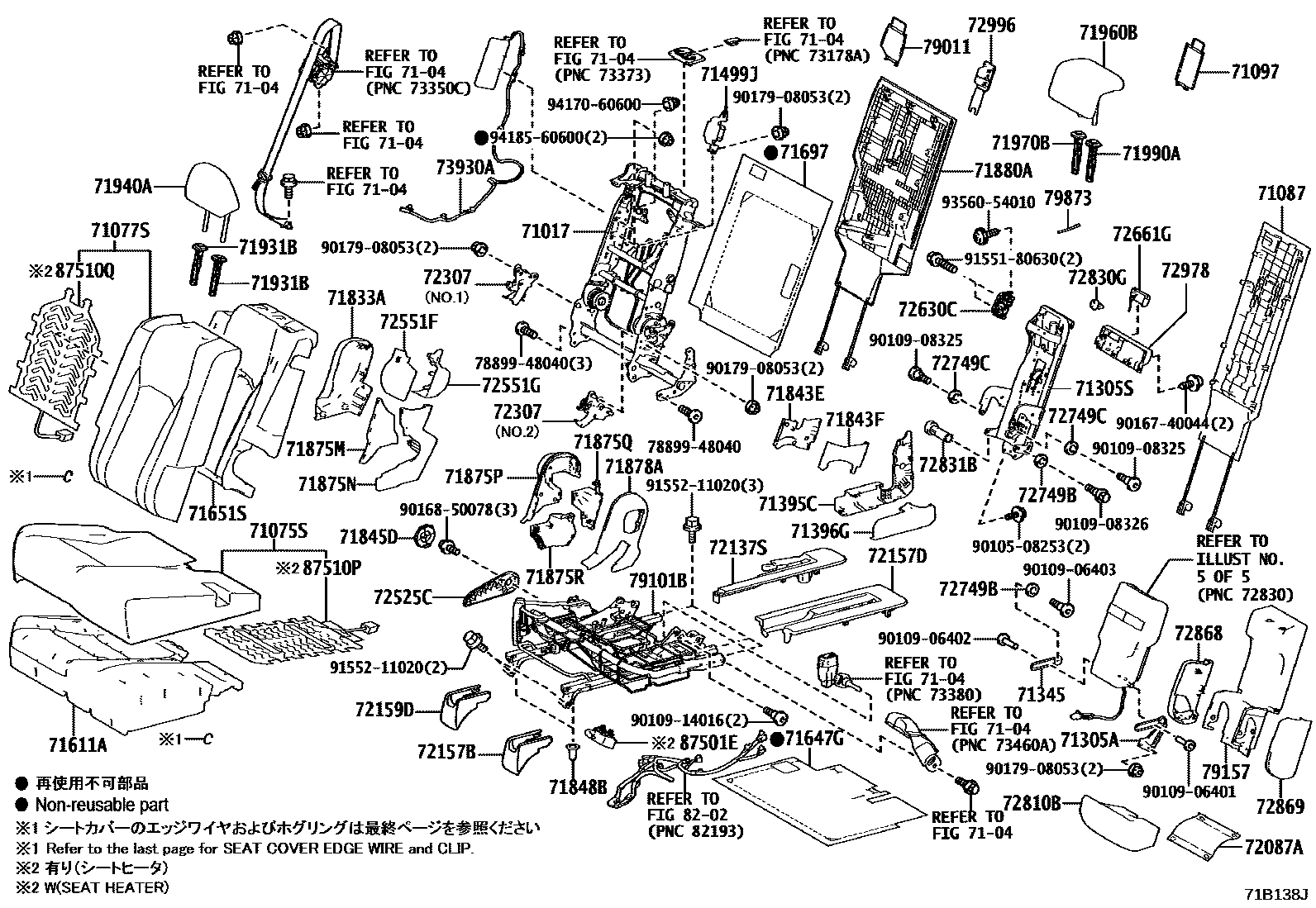

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
7104SEAT BELT & CHILD RESTRAINT SEAT
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWN,TRIM5#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWN,TRIM5#
71087BOARD SUB-ASSY, REAR SEATBACK
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
71097COVER SUB-ASSY, REAR CENTER SEAT CUSHION
BLACK,TRIM2#,4#
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71305SFRAME SUB-ASSY, CENTER SEATBACK
71345HINGE, REAR SEATBACK
71395CCOVER, CENTER SEAT HINGE, RH
IVORY,TRIM00,01,02,03
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
71396GCOVER, CENTER SEAT HINGE, LH
IVORY,TRIM0#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
71499JDAMPER, REAR SEAT CUSHION SPRING, RH
71611APAD, REAR SEAT CUSHION, RH
71647PROTECTOR, REAR SEAT CUSHION EDGE
71647GPROTECTOR, REAR SEAT CUSHION EDGE
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71697PROTECTOR, REAR SEATBACK EDGE
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
IVORY,TRIM00,01,02,03
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM5#,6#
71843ECOVER, REAR SEAT RECLINING, RH (FOR RH SEAT)
IVORY,TRIM0#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM5#,6#
71843FCOVER, REAR SEAT RECLINING, LH (FOR RH SEAT)
IVORY,TRIM0#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM5#,6#
71845DCAP, REAR SEAT COVER, RH
IVORY,TRIM0#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
71848BCAP, SEAT ADJUSTER COVER, RH
71875MCOVER, RECLINING ADJUSTER INSIDE, RH (FOR REAR NO.1 SEAT)
IVORY,TRIM0#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
71875NCOVER, RECLINING ADJUSTER INSIDE, RH (FOR REAR NO.1 SEAT)
IVORY,TRIM0#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
71875PCOVER, RECLINING ADJUSTER INSIDE, RH (FOR REAR NO.1 SEAT)
IVORY,TRIM0#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM5#,6#
71875QCOVER, RECLINING ADJUSTER INSIDE, RH (FOR REAR NO.1 SEAT)
IVORY,TRIM0#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM5#,6#
71875RCOVER, RECLINING ADJUSTER INSIDE, RH (FOR REAR NO.1 SEAT)
IVORY,TRIM0#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM5#,6#
71878ACOVER, REAR SEAT RECLINING, INNER RH
IVORY,TRIM0#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM5#,6#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#,6#
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
71960BHEADREST ASSY, REAR SEAT, CENTER
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
71970HEADREST ASSY, REAR SEAT
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
71970BSUPPORT ASSY, REAR SEAT HEADREST, RH
IVORY,TRIM0#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
71990ASUPPORT ASSY, REAR SEAT HEADREST, LH
IVORY,TRIM0#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM5#,6#
72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST
72137SCOVER, SEAT TRACK BRACKET, OUTER REAR RH
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
72157DCOVER, SEAT TRACK BRACKER, INNER RH
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#,6#
72159DCOVER, REAR SEAT TRACK BRACKET, OUTER RH
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM00,01,02,03
72307LINK SUB-ASSY, RECLINING CONTROL, RH
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
IVORY,TRIM00,01,02,03
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
72551FCOVER, RECLINING LINK, RH NO.1
72551GCOVER, RECLINING LINK, RH NO.2
72630CLOCK ASSY, REAR SEATBACK, RH
72661GLEVER, REAR SEATBACK LOCK
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM6#
OCHER,TRIM5#
TOPAZ BROWN,TRIM5#
72749BSPACER, REAR SEAT RECLINING, NO.1
72749CSPACER, REAR SEAT RECLINING, NO.2
72810BARMREST ASSY, NO.1 SEAT
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
72830ARMREST ASSY, REAR SEAT, CENTER
72830GCUSHION
BLACK
72831BPLATE, REAR SEAT CENTER ARMREST, NO.1
72868COVER, CENTER ARMREST HINGE, RH
IVORY,TRIM00,01,02,03
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
72869COVER, CENTER ARMREST HINGE, LH
IVORY,TRIM0#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
72978COVER, NO.2 CENTER SEATBACK
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM6#
OCHER,TRIM5#
TOPAZ BROWN,TRIM5#
72996COVER, REAR SEATBACK, RH
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
BLACK,TRIM2#,4#
79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79157COVER, NO.1 SEATBACK
IVORY,TRIM00,01,02,03
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
79873WIRE, FOLD SEATBACK
8202WIRING & CLAMP
87501ECONTROL SUB-ASSY, SEAT HEATER, RH
87510PHEATER ASSY, SEAT
87510QHEATER ASSY, SEAT
7889948040BOLT, FRONT SEAT
main78899-48040
9010508253
main90105-08253
9010906401
main90109-06401
9010906402
main90109-06402
9010906403
main90109-06403
9010908325
main90109-08325
9010908326
main90109-08326
9010914016
main90109-14016
9016740044
main90167-40044
9016850078
main90168-50078
9017908053
main90179-08053
9155180630
main91551-80630
9155211020
main91552-11020
9356054010
main93560-54010
9417060600
main94170-60600
9418560600
main94185-60600
81 parts on this diagram · 10 diagrams in section
