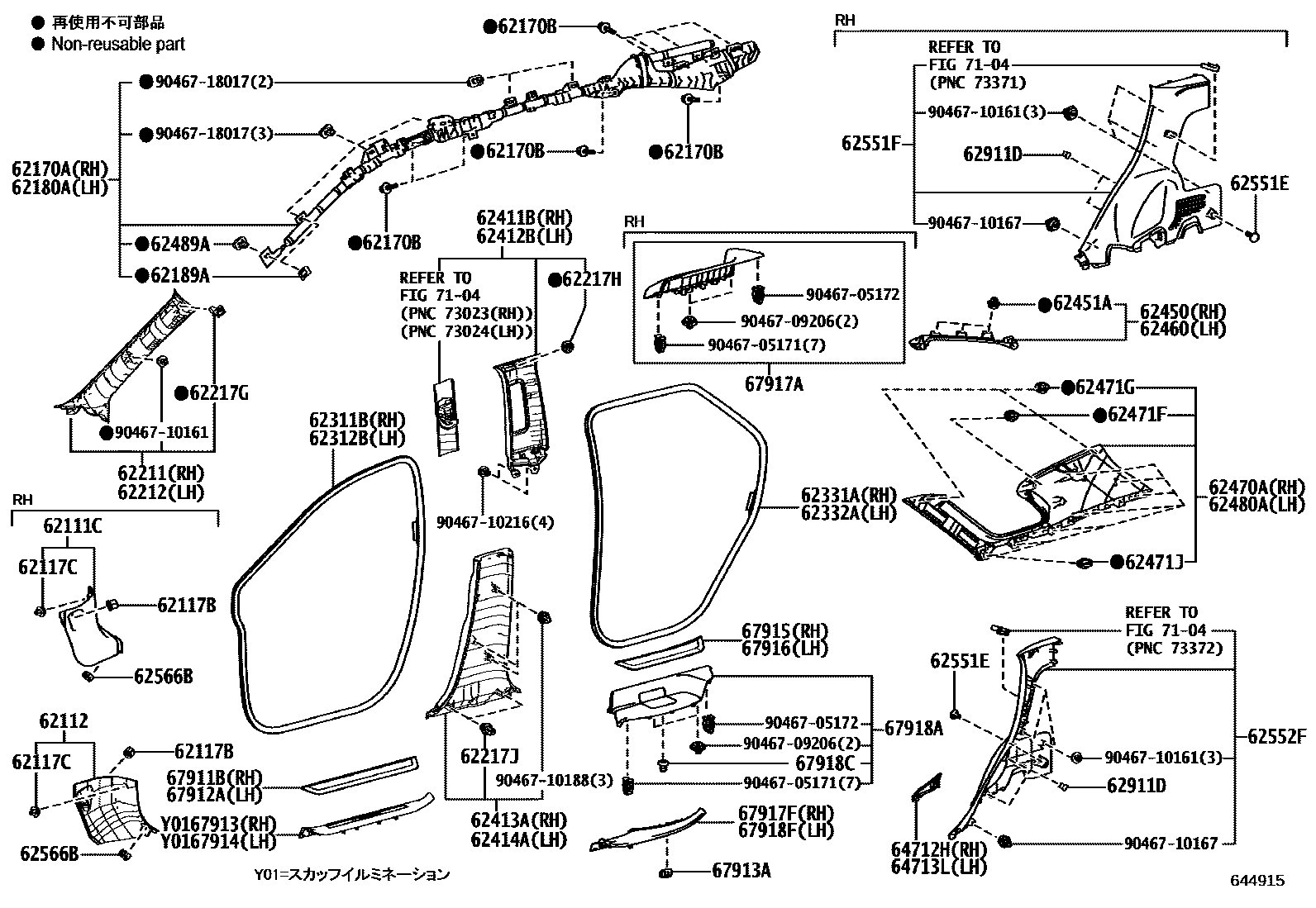

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-48080-C0iGYL26201712-201908

BLACK,TRIM1#,2#,4#

main62111-48080-E0iGYL26201712-201908

NOBLE BROWN,TRIM0#,5#,6#

62112BOARD, COWL SIDE TRIM, LH

main62112-48070-C0iGYL26202007

BLACK,TRIM0#,1#,2#,4#,5#,6#

main62112-48070-E0iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iGYL26201712-201908

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10167×2iGYL26201712-201908

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-48090iGYL26201712-201908

main62170-48130iGYL26201908

62170BBOLT, W/WASHER

main90119-06869×16iGYL26201712-201908

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-48090iGYL26201712-201908

main62180-48130iGYL26201908

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010×4iGYL26201712-201908

62211GARNISH, FRONT PILLAR, RH

main62210-48171-A1iGYL26201712-201908

ECRU,TRIM0#,5#,6#

main62210-48171-B2iGYL26201712-201908

MOON STONE,TRIM1#,2#,4#

62212GARNISH, FRONT PILLAR, LH

main62220-48181-A1iGYL26201712-201908

ECRU,TRIM0#,5#,6#

main62220-48181-B2iGYL26201908

MOON STONE,TRIM1#,2#,4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-48030×2iGYL26201908

62217HCLIP, CENTER PILLER GARNISH

main62217-13010×2iGYL26201712-201908

62217JCLIP, CENTER PILLER GARNISH

main62217-13010×4iGYL26201712-201908

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-48100iGYL26201712-201908

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-48100iGYL26201712-201908

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-48090iGYL26201908

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-48090iGYL26201712-201908

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-48101-A0iGYL26201908

ECRU,TRIM0#,5#,6#

main62410-48101-B1iGYL26201908

MOON STONE,TRIM1#,2#,4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-48111-A0iGYL26201712-201908

ECRU,TRIM0#,5#,6#

main62420-48111-B1iGYL26201712-201908

MOON STONE,TRIM1#,2#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-48060-C0iGYL26201712-201908

BLACK,TRIM1#,2#,4#

main62413-48060-E0iGYL26201712-201908

NOBLE BROWN,TRIM0#,5#,6#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-48060-C0iGYL26202007

BLACK,TRIM0#,1#,2#,4#,5#,6#

main62414-48060-E0iGYL26201712-201908

NOBLE BROWN,TRIM0#,5#,6#

62450GARNISH ASSY, ROOF SIDE RAIL, REAR RH

main62450-48020-A0iGYL26201712-201908

ECRU,TRIM0#,5#,6#

main62450-48020-B0iGYL26201908

MOON STONE,TRIM1#,2#,4#

62451ACLIP, SIDE GARNISH

main90467-10161×6iGYL26201712-201908

62460GARNISH ASSY, ROOF SIDE RAIL, REAR LH

main62460-48020-A0iGYL26201908

ECRU,TRIM0#,5#,6#

main62460-48020-B0iGYL26201712-201908

MOON STONE,TRIM1#,2#,4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-48270-A0supersedes 62470-48260-A0iGYL26201908

main62470-48270-B0supersedes 62470-48260-B0iGYL26201908

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-09240×2iGYL26201804-201908

main90467-10188×2iGYL26201712-201804

62471GCLIP, ROOF SIDE INNER GARNISH

main90467-10188×4iGYL26201712-201908

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09240×14iGYL26201712-201908

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-48220-A0supersedes 62480-48210-A0iGYL26201712-201908

main62480-48220-B0supersedes 62480-48210-B0iGYL26201712-201908

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010×2iGYL26201712-201905

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-06190×2iGYL26201712-201908

62551FGARNISH, REAR SEAT SIDE, RH

main62551-48170-C0iGYL26202007

BLACK,TRIM0#,1#,2#,4#,5#,6#

main62551-48170-E0iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

62552FGARNISH, REAR SEAT SIDE, LH

main62552-48130-C0iGYL26201908-202007

BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#

main62552-48130-E0iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-48020×2iGYL26201908

62911DHOOK, SIDE WINDOW LOCK

main62911-48010×4iGYL26201908

64712HCOVER, DECK SIDE TRIM, FRONT RH

main64712-48030-C0iGYL26201712-201908

BLACK,TRIM1#,2#,4#

main64712-48030-E0iGYL26201712-201908

NOBLE BROWN,TRIM0#,5#,6#

64713LCOVER, DECK SIDE TRIM, FRONT LH

main64713-48030-C0iGYL26202007

BLACK,TRIM0#,1#,2#,4#,5#,6#

main64713-48030-E0iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-48110iGYL26201908

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-48110iGYL26201712-201908

67913PLATE, FRONT DOOR SCUFF, RH

main67910-48140-C0iGYL26201908-202007

BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#

main67910-48140-E0iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

67913ACLIP(FOR SCUFF PLATE)

main62566-48020×2iGYL26201908

67914PLATE, FRONT DOOR SCUFF, LH

main67920-48140-C0iGYL26201712-201908

BLACK,TRIM1#,2#,4#

main67920-48140-E0iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-48070iGYL26201712-201908

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-48070iGYL26201908

67917APLATE, REAR DOOR SCUFF, RH

main67930-48100-C1iGYL26201908-202007

BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#

main67930-48100-E1iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

67917FPLATE, REAR DOOR SCUFF, INSIDE RH

main67917-48100-C0iGYL26201712-201908

BLACK,TRIM1#,2#,4#

main67917-48100-E0iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

67918APLATE, REAR DOOR SCUFF, LH

main67940-48100-C1iGYL26201908-202007

BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#

main67940-48100-E1iGYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-05063-C0iGYL26201908

BLACK

67918FPLATE, REAR DOOR SCUFF, INSIDE LH

main67918-48100-C0iGYL26202007

BLACK,TRIM0#,1#,2#,4#,5#,6#

main67918-48100-E0iGYL26201712-201908

NOBLE BROWN,TRIM0#,5#,6#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9046705171

main90467-05171

9046705172

main90467-05172

9046709206

main90467-09206

9046710161

main90467-10161

9046710167

main90467-10167

9046710188

main90467-10188

9046710216

main90467-10216

9046718017

main90467-18017

58 parts on this diagram · 2 diagrams in section
