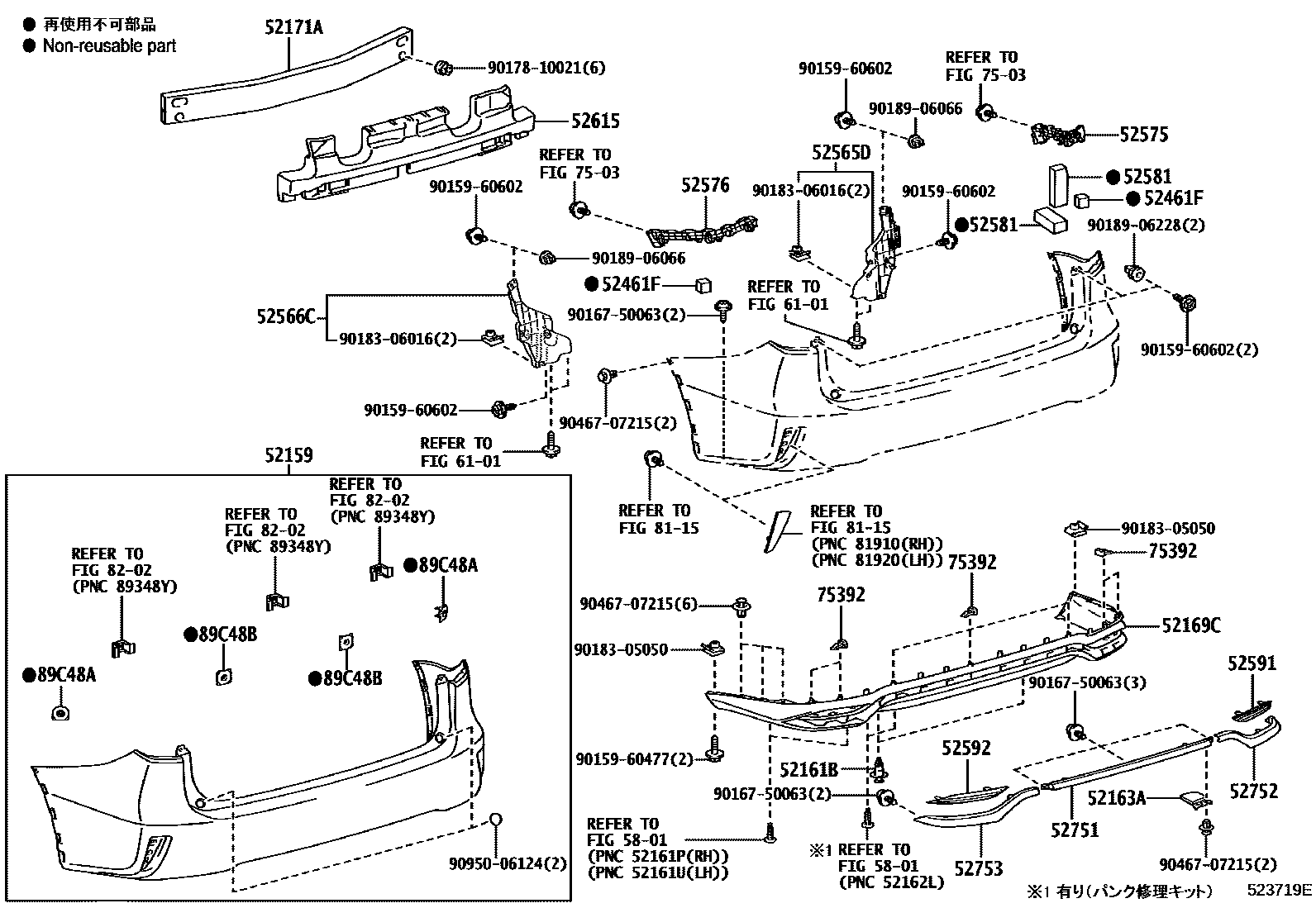

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-48934-A0iGYL26201712-201809

SONIC QUARTZ,085

main52159-48934-B0iGYL26201712-201809

PLATINUM SILVER ME.,1J4

main52159-48934-B1iGYL26201712-201809

SONIC TITANIUM,1J7

main52159-48934-C0iGYL26201712-201809

BLACK,212

main52159-48934-C1iGYL26201712-201809

GRAPHITE BLACK GF.,223

main52159-48934-D0iGYL26201712-201809

RED MC.CS.,3R1

main52159-48934-E0iGYL26201712-201809

SLEEK ECRU ME.,4U7

main52159-48934-E1iGYL26201712-201809

AMBER CS.,4X2

main52159-48934-J0iGYL26201712-201809

DEEP BLUE MC.,8X5

main52159-48939-A0iGYL26201809-201908

SONIC QUARTZ,085

main52159-48939-B0iGYL26201809-201908

PLATINUM SILVER ME.,1J4

main52159-48939-B1iGYL26201809-201908

SONIC TITANIUM,1J7

main52159-48939-C0iGYL26201809-201908

BLACK,212

main52159-48939-C1iGYL26201809-201908

GRAPHITE BLACK GF.,223

main52159-48939-D0iGYL26201809-201908

RED MC.CS.,3R1

main52159-48939-E0iGYL26201809-201908

SLEEK ECRU ME.,4U7

main52159-48939-E1iGYL26201809-201908

AMBER CS.,4X2

main52159-48939-J0iGYL26201809-201908

DEEP BLUE MC.,8X5

main52159-48955-A0iGYL26201908-202204

main52159-48955-B0iGYL26201908-202204

main52159-48955-B2iGYL26202107-202204

main52159-48955-B3iGYL26202107-202204

main52159-48955-C0iGYL26201908-202204

main52159-48955-C1iGYL26201908-202204

main52159-48955-D0iGYL26201908-202204

main52159-48955-E0iGYL26201908-202107

main52159-48955-E1iGYL26201908-202204

main52159-48955-G0iGYL26201908-202204

main52159-48955-J0iGYL26201908-202204

main52159-48973-A1iGYL26202204-202209

main52159-48973-B0iGYL26202204-202209

main52159-48973-B1iGYL26202204-202209

main52159-48973-B2iGYL26202204-202209

main52159-48973-C0iGYL26202204-202209

main52159-48973-C1iGYL26202204-202209

main52159-48973-D0iGYL26202204-202209

main52159-48973-E1iGYL26202204-202209

main52159-48973-G0iGYL26202204-202209

main52159-48973-J1iGYL26202204-202209

52161BPIECE, REAR BUMPER

main52161-16010×2iGYL26201712-201908

52163APLATE, REAR BUMPER, RH

main52163-48060iGYL26201712-201908

52169CCOVER, REAR BUMPER, LOWER

main52169-48140iGYL26201712-201808

main52169-48141iGYL26201809-201908

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-48230iGYL26201712-201908

52461FPAD, REAR BUMPER

main52461-48050×2iGYL26201712-201908

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-48040iGYL26201712-201908

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-48030iGYL26201712-201908

52575RETAINER, REAR BUMPER SIDE, RH

main52575-48070iGYL26201712-201908

52576RETAINER, REAR BUMPER SIDE, LH

main52576-48070iGYL26201712-201908

52581PROTECTOR, REAR BUMPER, RH

main52581-48040×2iGYL26201712-201908

52591SEAL, REAR BUMPER SIDE, RH

main52591-48130iGYL26201712-201908

52592SEAL, REAR BUMPER SIDE, LH

main52592-48060iGYL26201712-201908

52615ABSORBER, REAR BUMPER ENERGY

main52615-48240iGYL26201712-201908

52751MOULDING, REAR BUMPER

main52751-48050iGYL26201712-201908

52752MOULDING, REAR BUMPER SIDE, RH

main52752-48020iGYL26201712-201908

52753MOULDING, REAR BUMPER SIDE, LH

main52753-48020iGYL26201712-201908

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

7503SIDE MOULDING

→ Go to FIG 75-03

75392RETAINER, OUTSIDE MOULDING

main75392-35220×7iGYL26201712-201908

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8202WIRING & CLAMP

→ Go to FIG 82-02

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-48010×2iGYL26201712-201908

main89348-50130×2iGYL26201908

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-48010×2iGYL26201712-201908

main89348-50130×2iGYL26201908

9015960477

main90159-60477

9015960602

main90159-60602

9016750063

main90167-50063

9017810021

main90178-10021

9018305050

main90183-05050

9018306016

main90183-06016

9018906066

main90189-06066

9018906228

main90189-06228

9046707215

main90467-07215

9095006124

main90950-06124

35 parts on this diagram · 2 diagrams in section
