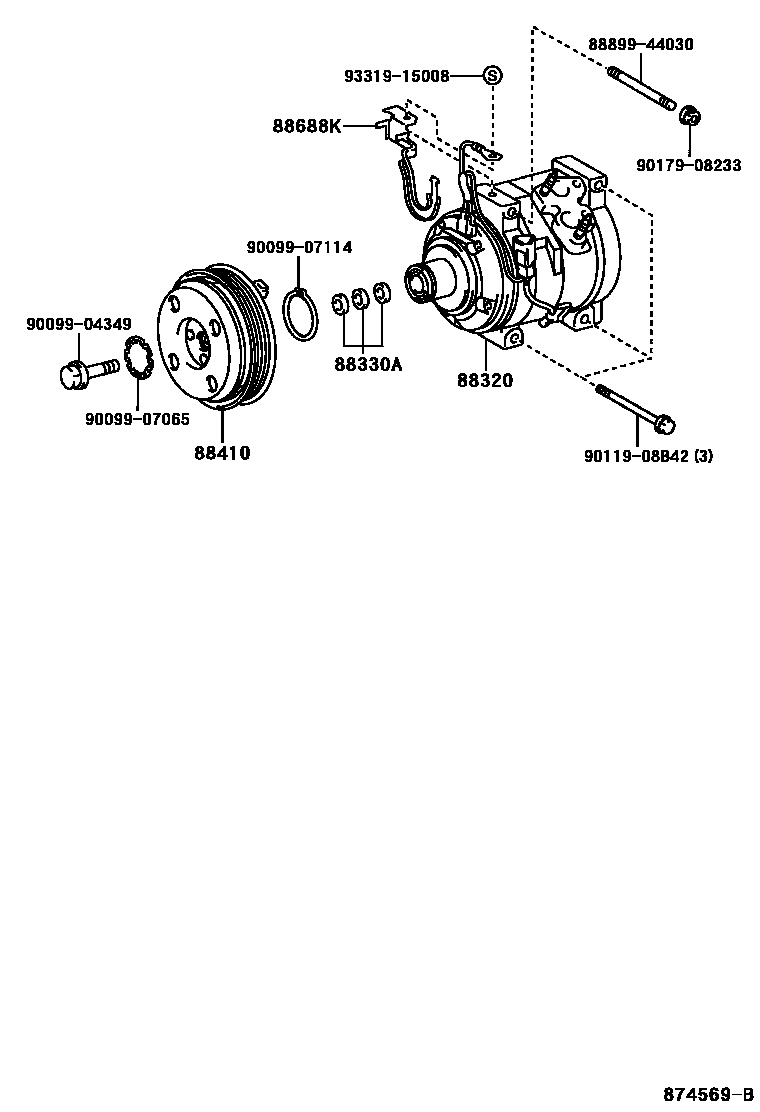

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-48060iMCU2#200011-200308

main88320-48080iACU2#200011-200308

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iACU2#,MCU2#200011-200308

88410CLUTCH ASSY, MAGNET

main88410-33120iMCU2#200011-200308

main88410-33140iMCU2#200308

main88410-48030iACU2#200011-200308

main88410-YC020iACU2#200308

88688KBRACKET, COOLER COMPRESSOR

main88688-48040iMCU2#200011-200308

main88688-48070iACU2#200308

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9017908233

main90179-08233

9331915008

main93319-15008

11 parts on this diagram · 2 diagrams in section
