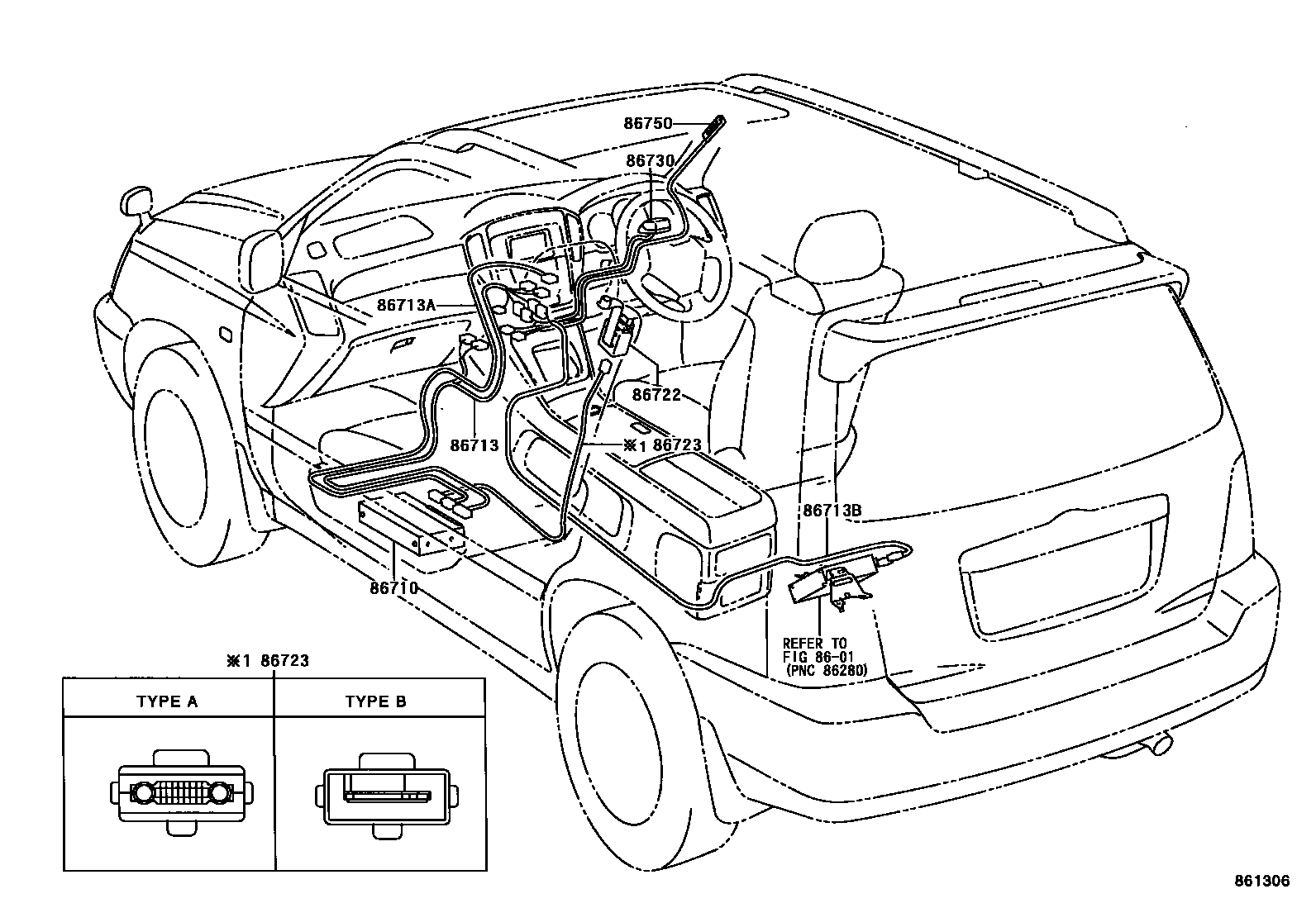

TELEPHONE & MAYDAY

0001 1 0002 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86710COMPUTER ASSY, TELEPHONE

main86710-50120iACU2#,MCU2#200011-200308

86713WIRE, TELEPHONE COMPUTER

main86713-48020iACU2#,MCU2#200011-200308

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-48030iACU2#,MCU2#200011-200308

86713BWIRE, TELEPHONE COMPUTER, (TO FRAM W/H)

main86713-48050iACU2#,MCU2#200011-200308

86722CRADLE, MOBILEPHONE

main86722-47010iACU2#,MCU2#200011-200308

86723WIRE, MOBILEPHONE

main86723-47010iACU2#,MCU2#200011-200308

main86723-47020iACU2#,MCU2#200011-200308

main86723-58010iACU2#,MCU2#200308

main86723-58030iACU2#,MCU2#200308

86730MICROPHONE ASSY, TELEPHONE

main86730-48010iACU2#,MCU2#200011-200308

86750SWITCH ASSY, TELEPHONE

main86750-22020iACU2#,MCU2#200011-200308

main86750-46010iACU2#,MCU2#200308

9 parts on this diagram · 2 diagrams in section
