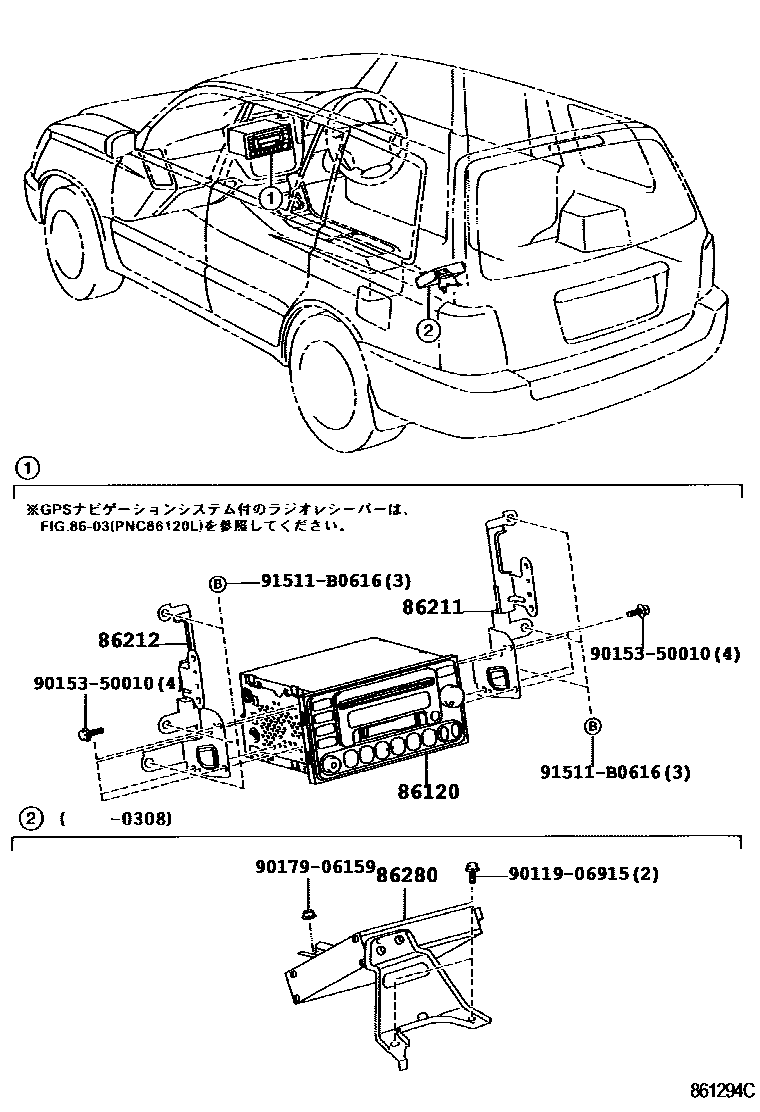

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������- & ��������-

86120RECEIVER ASSY, RADIO

main86120-2B670iACU2#,MCU2#200011-200308

main86120-63010iACU2#,MCU2#200011-200308

main86120-63011iACU2#,MCU2#200308

86211BRACKET, RADIO, NO.1

main86211-48040iACU2#,MCU2#200011-200308

86212BRACKET, RADIO, NO.2

main86212-48040iACU2#,MCU2#200011-200308

86280AMPLIFIER ASSY, STEREO COMPONENT

main86100-0W020iACU2#,MCU2#200011-200308

main86100-0W030iACU2#,MCU2#200011-200308

9011906915

main90119-06915

9015350010

main90153-50010

9017906159

main90179-06159

91511B0616

main91511-B0616

8 parts on this diagram · 2 diagrams in section
