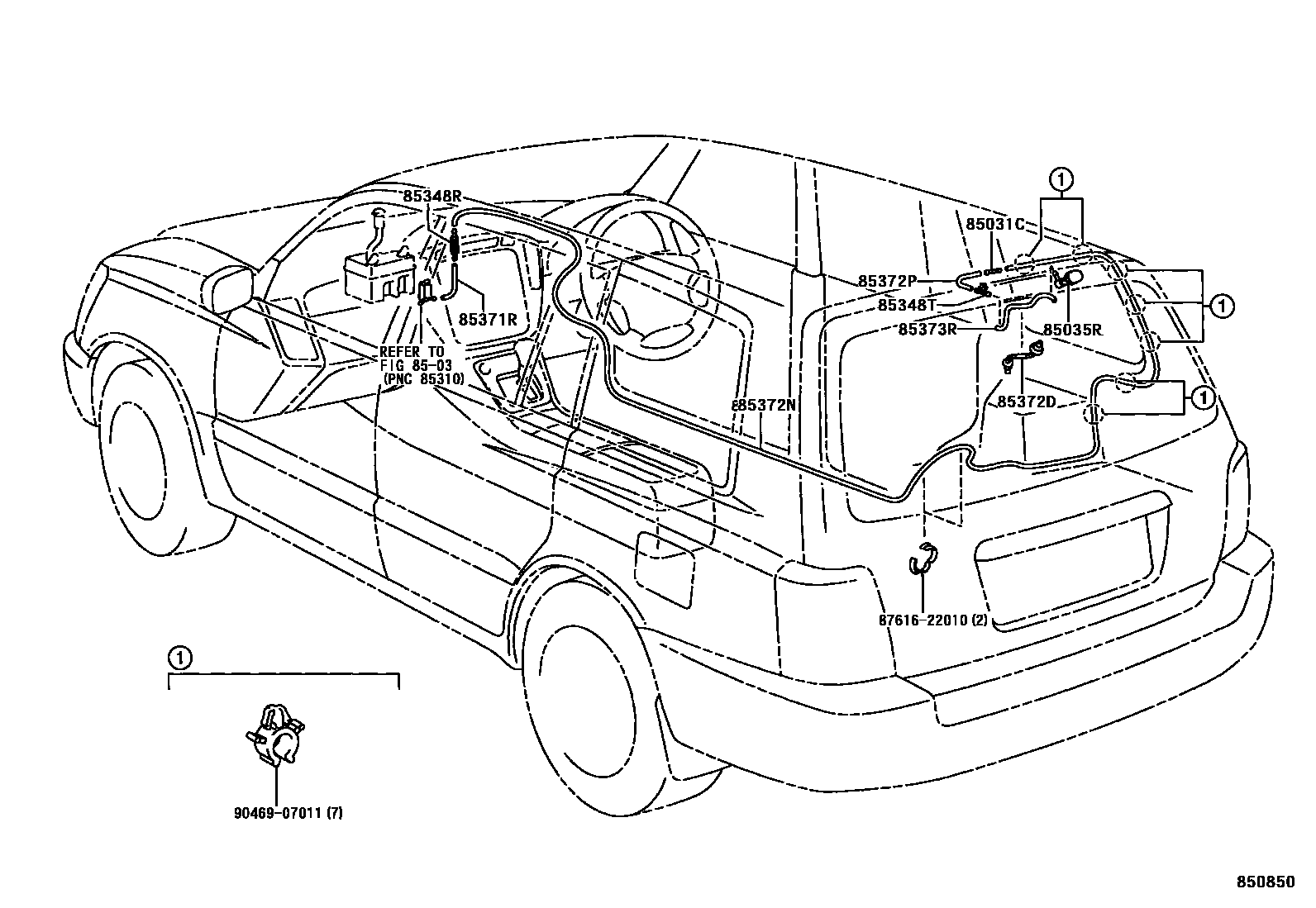

REAR WASHER

0001 1 0002 1

8503

85031CVALVE SUB-ASSY, WASHER

main85321-26020iACU2#,MCU2#200011-200308

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-48010iACU2#,MCU2#200011-200308

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iACU2#,MCU2#200011-200308

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-17050iACU2#,MCU2#200011-200308

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iACU2#,MCU2#200308

main90099-59227iACU2#,MCU2#200011-200308

85372DGROMMET, REAR WASHER HOSE

main85373-44010iACU2#,MCU2#200011-200305

main85373-48010iACU2#,MCU2#200305-200308

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-59287iACU2#,MCU2#200011-200308

main90099-59340iACU2#,MCU2#200308

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iACU2#,MCU2#200011-200308

main90446-07001iACU2#,MCU2#200308

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iACU2#,MCU2#200011-200308

8761622010CLAMP, COOLING UNIT CASE

main87616-22010

9046907011

main90469-07011

12 parts on this diagram · 2 diagrams in section
