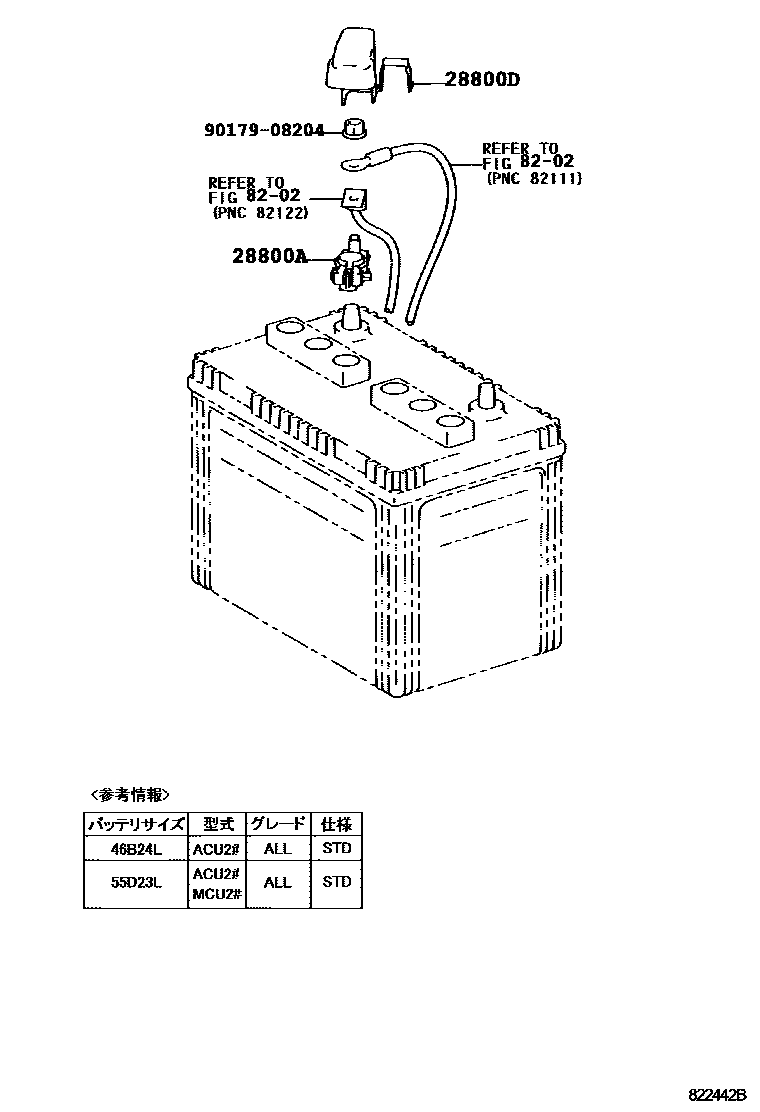

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i2AZFE..ACU2#200308

main90982-05054i1MZFE..MCU2#200308

main90982-05057i2AZFE..ACU2#200011-200308

main90982-05058i1MZFE..MCU2#; 2AZFE..ACU2#200011-200308

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20350i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

main82821-48020i1MZFE..MCU2#200308

main82821-48030i2AZFE..ACU2#200308

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

4 parts on this diagram · 1 diagram in section
