FOG LAMP

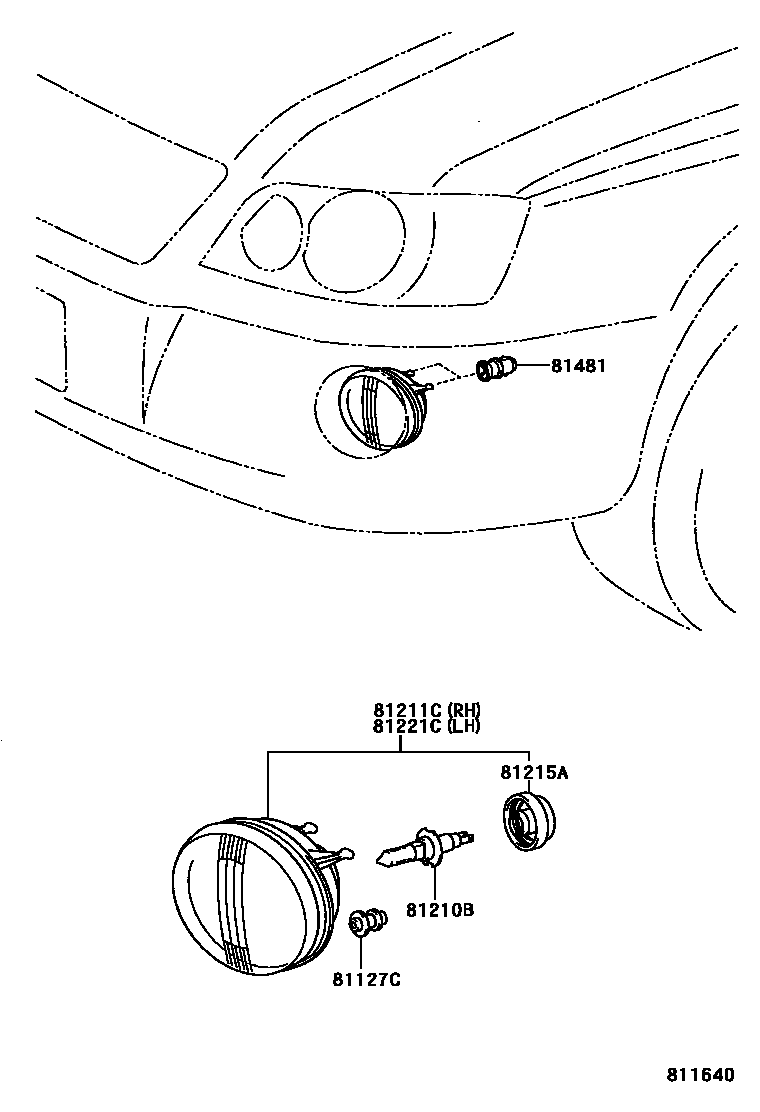

Parts diagram

81127CBEARING FOG LAMP

main90075-10811×2i200308

81210BBULB, FOG LAMP

main90981-13047×2i200308

main90981-13057×2i200011-200308

81211CLAMP UNIT, FOG LAMP, RH

main81211-48010i200011-200308

main81211-52060i200308

81215ASOCKET & WIRE, FOG LAMP

main90075-65003×2i200011-200308

81221CLAMP UNIT, FOG LAMP, LH

main81221-48010i200011-200308

main81221-52060i200308

81481BRACKET, FOG LAMP

main81481-28040×4i200011-200308

6 parts on this diagram · 2 diagrams in section
