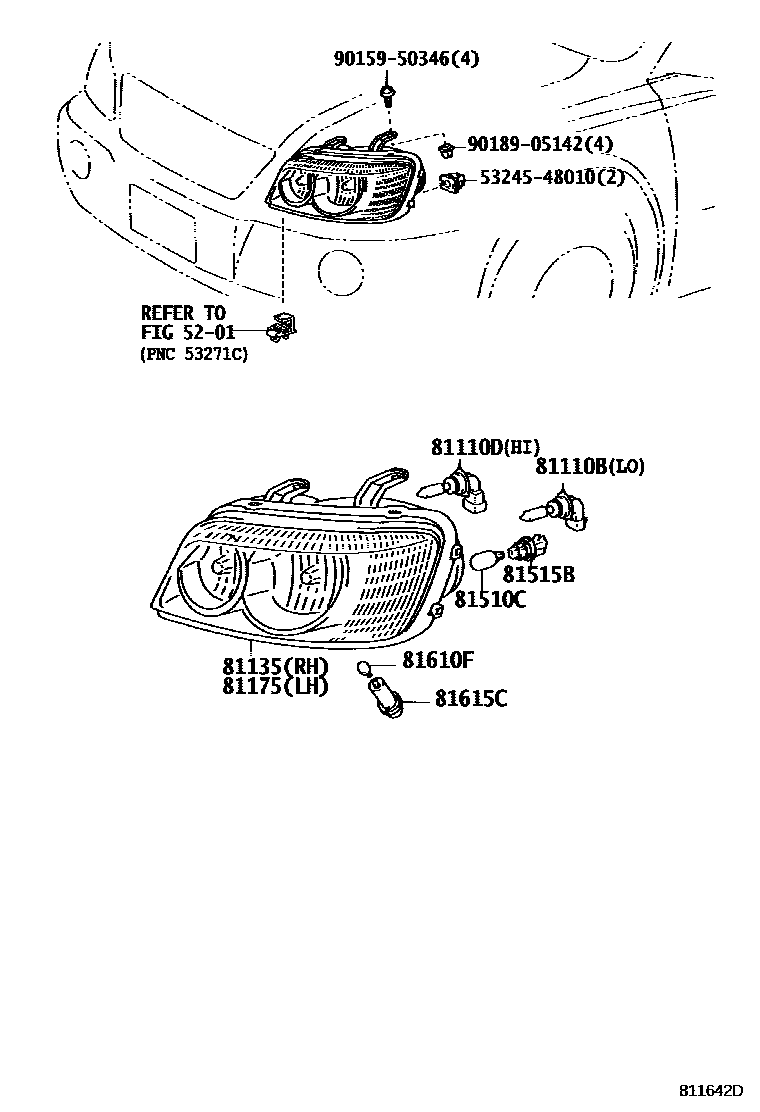

HEADLAMP

0001 1 0002 1������-�� �������� 0003 1 0004 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iACU2#,MCU2#200011-200308

main90981-13047×2iACU2#..05S200308-200512

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iACU2#,MCU2#200011-200308

main90981-13046×2iACU2#,MCU2#200308-200705

81135UNIT ASSY, HEADLAMP, RH

main81130-48140iACU2#,MCU2#200011-200308

main81130-48160iACU2#,MCU2#200011-200308

main81130-48270iACU2#..05S200308-200512

main81145-48290iACU2#,MCU2#200308

81175UNIT ASSY, HEADLAMP, LH

main81170-48140iACU2#,MCU2#200011-200308

main81170-48160iACU2#,MCU2#200011-200308

main81170-48270iACU2#..05S200308-200512

main81185-48290iACU2#,MCU2#200308

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iACU2#,MCU2#200011-200308

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99128×2iACU2#,MCU2#200011-200308

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iACU2#,MCU2#200011-200308

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60046×2iACU2#,MCU2#200011-200308

5324548010BRACKET, HEADLAMP, RH

main53245-48010

9015950346

main90159-50346

9018905142

main90189-05142

12 parts on this diagram · 4 diagrams in section
